ESP32-S3 4.3inch No-Touch Display Development Board, 800×480, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth

ESP32-S3 4.3inch No-Touch Display Development Board, 800×480, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth

This product is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

User Manual / Datasheet / Example Codes Etc.

Features

• Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash

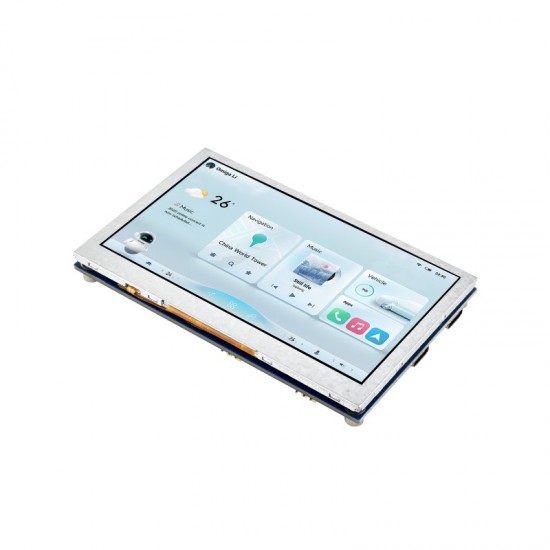

• Onboard 4.3inch LCD display, 800×480 resolution, 65K color
• Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)
• Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

Package Includes

• ESP32-S3-LCD-4.3 x1
• HY2.0 2P to 2PIN male cable 10cm ×2
• HY2.0 3P to 3PIN male cable 10cm ×1
• HY2.0 4P to 4PIN male cable 10cm ×1
• Standoff pack ×1

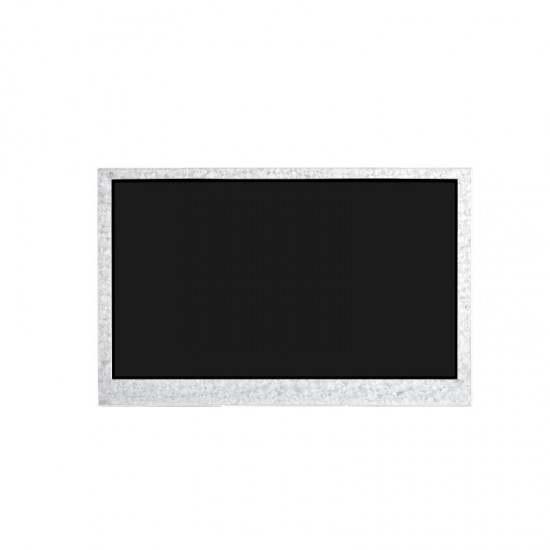

IPS Display Panel

Excellent display performance, 160° viewing angle

What's On Board

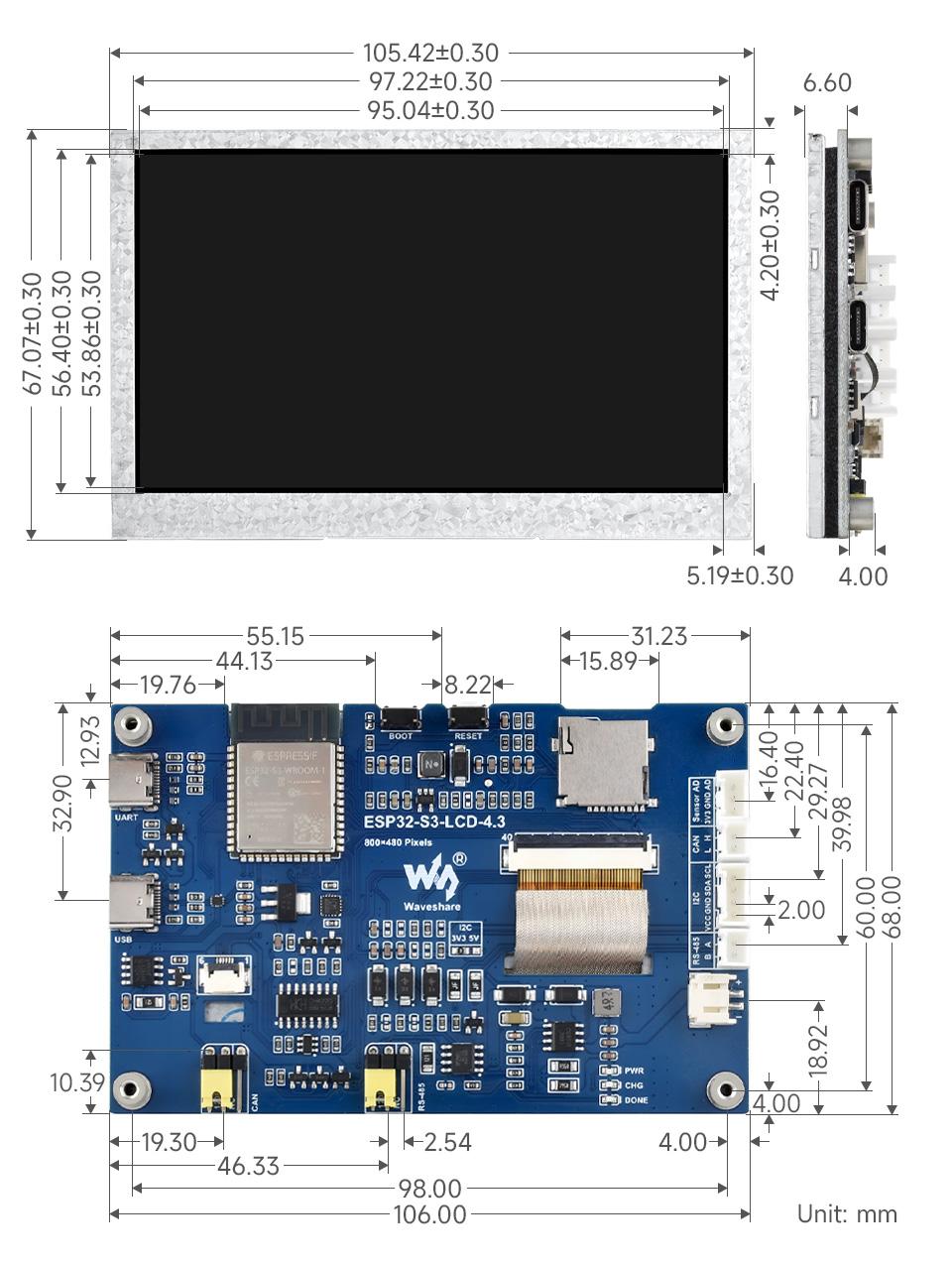

Dimensions
