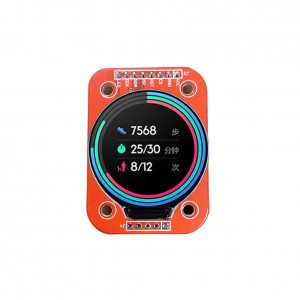

1.28 Inch Round TFT LCD Display Module, 240×240 Resolution, IPS Panel, SPI Interface (Square Plate)
The 1.28 Inch Round TFT LCD Display Module, a compact yet powerful display solution designed to elevate your projects to new levels of visual excellence. With its sleek design and impressive specifications, this display module is perfect for a wide range of applications, from wearable devices to IoT gadgets and beyond.
Features
- Type : Square Plate
- IPS color display screen
- 4Pin SPI communication
- Adjustable display direction
- Full viewing angle display
Specifications
- Size: 1.28 inch
- Resolution: 240*240
- Driver chip: GC9A01
- Display color: full-color RGB
- Panel size: 38*45.5*3.2mm
- Display size: 32.4*32.4m
- Drive voltage: 3~5V
- View: IPS full viewing angle
- Interface type: 4-Pin SPI
- Work voltage: 2.8V-3.3V
- Pins: 2.54mm 8Pin
- View: Full viewing angle display
- Working temperature range: -20℃~70℃
- Working humidity range: 5%-95%RH
Package Includes
- 1x 1.28 Inch Round TFT LCD Display (Square Plate)
- 1x Pin Headers
