Elecrow CrowPanel Advance 3.5inch -HMI ESP32 AI Display for Meshtastic 480x320 Artificial Intelligent IPS Touch Screen-Without Case

Elecrow CrowPanel Advance 3.5inch -HMI ESP32 AI Display for Meshtastic 480x320 Artificial Intelligent IPS Touch Screen-Without Case

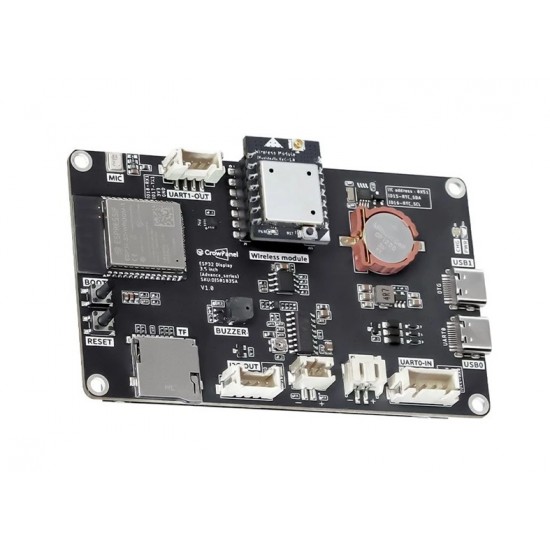

This Advance ESP32 3.5-inch display is the Meshtastic version of the CrowPanel Advanced display. The included SX1262 LoRa module allows the screen to access the Meshtastic network and talk to other Meshtastic devices.

It is a powerful HMI touch display with a 480*320 resolution IPS screen. It uses the ESP32-S3 chip as the core processor. This chip is equipped with an Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240MHz, equipped with 512KB SRAM, 8M PSRAM and 16M Flash, providing the device with powerful data processing capabilities. The integrated 2.4GHz Wi-Fi and BLE functions, combined with the built-in RF antenna, ensure the stability and reliability of the wireless connection. Also, the diverse interfaces and low power make this 3.5-inch screen ideal for HMI applications that need strong wireless connectivity. It supports the Arduino IDE, Espressif IDF, and PlatformIO. It is compatible with the LVGL graphics library and supports C++.

This 3.5-inch screen uses an IPS panel, and the 178°wide viewing angle allows you to enjoy a vivid visual experience at any angle. Capacitive touch technology enables smooth, responsive interactions. It makes every touch accurate and intuitive.

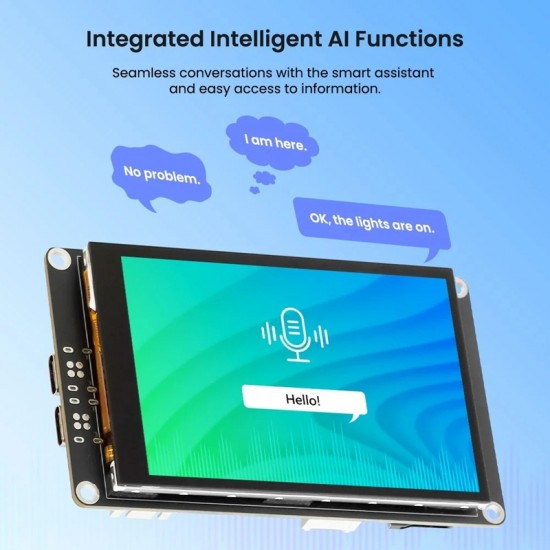

A notable feature of the CrowPanel Advance 3.5-inch display is its integrated AI function. Users can interact by using the microphone and speaker. This includes voice recognition and speech synthesis. They can have seamless conversations with smart assistants to get information. With the SX1262 wireless module, the Advance 3.5" HMI display can support access to the Meshtastic network(An open source, off-grid, decentralized, mesh network built to run on affordable, low-power devices).

This display integrates the latest Meshtastic technology, optimized port layout, excellent display touch performance, and larger storage space. These improvements enhance the flexibility and reliability of connectivity, provide users with more diverse choices and wider application possibilities, and meet the stringent requirements of modern intelligent systems for remote monitoring and control. This 3.5" display also supports tactility. Click here to learn more.

User Manual / Datasheet / Example Codes Etc.

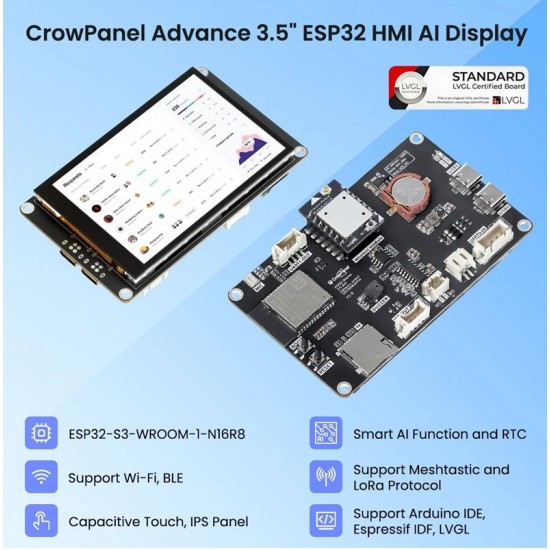

Features

• Equipped with ESP32-S3-WROOM-1 module as the core controller, it provides more excellent performance;
• Main frequency up to 240MHz, equipped with 512KB SRAM, 8M PSRAM and 16M Flash;
• 480*320 3.5”, with driver IC ILI9488;
• IPS panel, 178°wide viewing angle, supports capacitive touch;
• Intelligent AI function, equipped with speaker port and high-performance microphone, users can have seamless conversations with smart assistants through voice command interaction, voice recognition and speech synthesis;
• Built-in LVGL demonstration interface and Arduino examples, plug and play;

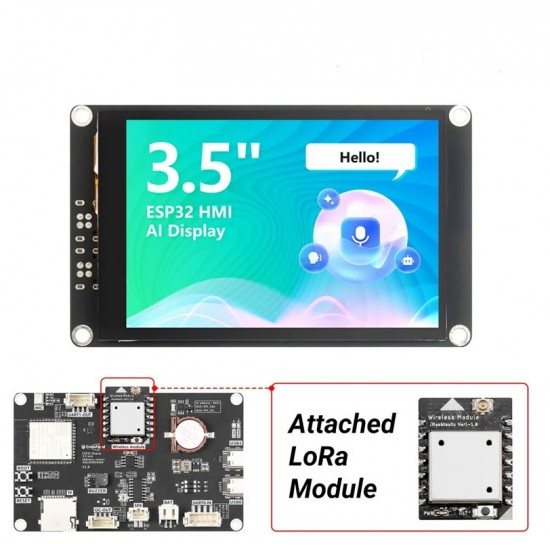

• The SX1262 wireless module supports access to the Meshtastic network;
• Real-time clock function, ensuring the continuity and accuracy of system time in the event of power failure;
• The peripheral port adopts vertical and built-in terminal design, which is more in line with the compact and integrated design requirements of embedded devices.

Application scenarios

• Industrial automation
• Smart city
• Smart home
• Medical equipment
• Agricultural technology
• Environmental monitoring
• Environmental monitoring
• Energy management
• Logistics and warehousing
• Retail and catering
• Education and research

Specifications

• CPU/SoC: high-performance Xtensa 32-bit LX7 dual-core processor, with up to 240MHz
• System Memory: 512KB SRAM、8M PSRAM
• Memory: 16M Flash，384KB ROM
• Development Language: C/C++
• Development Environment: ESP-IDF、Arduino IDE、PlatformIO、LVGL
• Screen
• Size: 3.5 inch
• Diver IC: ILI9488
• Resolution: 480*320
• Display Panel: IPS Panel
• Touch Panel: Capacitive Single Touch
• Viewing Angle: 178°
• Brightness: 400 cd/m²(Typ.)
• Color Depth: 16-bit
• Wireless Communication - Onboard Antenna
• WiFi: Support 2.4GHz, 802.11a/b/g/n
• Bluetooth: Support Bluetooth 5.0 and BLE
• Other: LoRa
• Interface/Function
• Interface: USB port, UART, I2C, SD card slot, battery socket, speaker port, microphone, etc.
• Function: RTC clock, audio amplifier, volume control, battery charge management, USB to UART, etc.
• Button/LED Indicator
• Reset Button: Yes, press to reset the device
• Boot Button: Yes, press and hold the power button to burn the program
• PWR: Power indicator
• CHG: Lithium battery charging status, completion indication
• Other
• Installation method: Back hanging, fixed hole
• Operating temperature: -20~70 °C
• Storage temperature: -30~80 °C
• Power Input: 5V/2A, USB or UART terminal
• Dimensions: 101.4*63.3*15.8mm

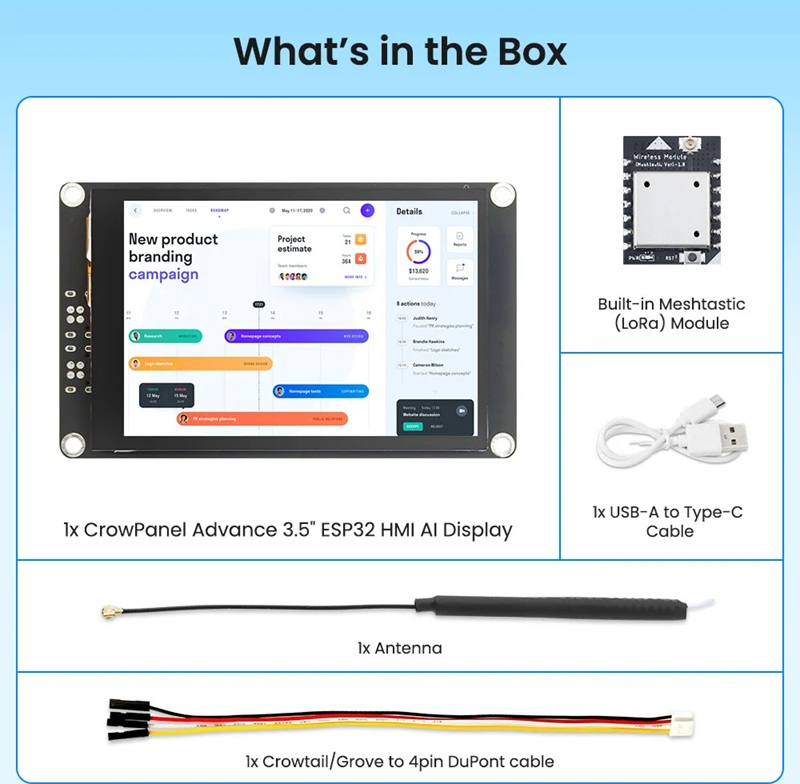

Package Includes

• 1x CrowPanel Advance ESP32 Display-3.5 inch
• 1x Wireless Module-Meshtastic( with 868Mhz/915MHz Copper Tube Spring antenna)
• 1x USB-A to Type-C Cable
• 1x Crowtail/Grove 4pin DuPont cable
• 1x Antenna
