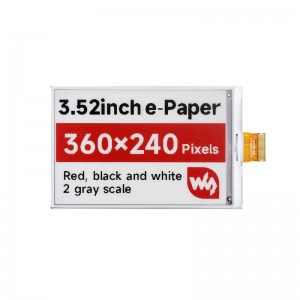

3.52inch E-Paper Display Module (B), 360x240, Red/Black/White, SPI Interface

3.52inch E-Paper Display Module (B), 360x240, Red/Black/White, SPI Interface

The 3.52-inch E-Paper Display Module (B) offers a 360x240 resolution and supports three colors: red, black, and white. With its low power consumption and clear visibility in bright light, it’s ideal for various display applications. The module uses an SPI interface for easy integration into projects.

User Manual / Datasheet / Example Codes Etc.

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Series / RDK X3 / Arduino / STM32)

Specifications

• Resolution : 360 × 240 pixels
• Viewing Angle: >170°

• Operating Voltage: 3.3V/5V
• Display Color: Red/Black/White
• Interface: 3-wire SPI, 4-wire SPI
• Grey Scale: 2

• Outline Dimensions:  86.50 x 57.00 (mm)
• Full Refresh Time: 16s
• Display Size: 74.51 × 49.67 (mm)
• Refresh Power: <25mW

• DOT PITCH: 0.207 × 0.207 (mm)
• Standby Current: <0.01uA (almost none)

Package Includes

• 1x 3.52inch e-Paper HAT (B)
• 1x PH2.0 8PIN cable
• 1x Screws pack

Standard Raspberry Pi 40PIN GPIO Header

Similar to the size of Raspberry Pi, Compatible With the size of Raspberry Pi 5 / 4B / 3B / 3B+

Onboard SPI Control Interface

• VCC: Power (3.3V / 5V input)
• GND: Ground
• DIN: SPI MOSI pin
• CLK: SPI SCK pin
• CS: SPI chip selection, low active
• DC: Data/Command selection (high for data, low for command)
• RST: External reset, low active
• BUSY: Busy status output pin

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

Dimensions
