Name: Waveshare 4inch DSI Capacitive Touch Display, 480 × 800 Resolution, IPS Display Panel, 5-Point Touch, Optical Bonding Toughened Glass Panel
Brand: WaveShare Electronics
SKU: 34354
Price: 3145.00 INR
Availability: OutOfStock

Waveshare 4inch DSI Capacitive Touch Display, 480 × 800 Resolution, IPS Display Panel, 5-Point Touch, Optical Bonding Toughened Glass Panel

WaveShare Electronics

Waveshare 4inch DSI Capacitive Touch Display, 480 × 800 Resolution, IPS Display Panel, 5-Point Touch, Optical Bonding Toughened Glass Panel

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹3,145.00

₹2,665.25 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 27
B2B GST Credit Available

Price in reward points: 2665

Stock: 0 in Stock
SKU: 34354
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

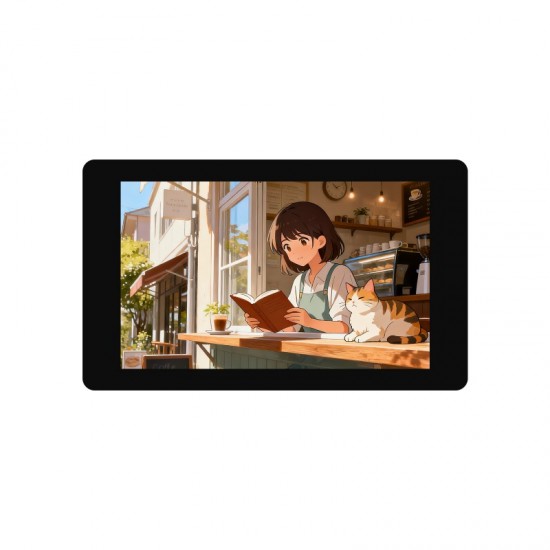

4inch DSI Capacitive Touch Display, 480 × 800 Resolution, IPS Display Panel, 5-Point Touch, Optical Bonding Toughened Glass Panel

The 4-inch DSI Capacitive Touch Display features a sharp 480 × 800 resolution, delivering clear and vibrant visuals through its high-quality IPS panel with wide viewing angles. Designed for responsive interaction, it supports 5-point capacitive touch for smooth and accurate multi-touch control. The display is enhanced with an optical bonding toughened glass panel, reducing glare while improving durability and display clarity. With its DSI interface, it ensures fast data transmission and seamless compatibility with supported development boards, making it ideal for embedded systems, DIY projects, and industrial applications where compact size and reliable touch performance are essential.

User Manual / Datasheet / Example Codes Etc.

Features

4inch DSI touch screen, capacitive 5-point touch control
IPS display panel with a hardware resolution of 480×800
Features the optical bonding process for clearer picture quality
Toughened glass touch panel, hardness up to 6H
Drives the LCD through the DSI interface, with a refresh rate of up to 60Hz
Supports software control of backlight brightness

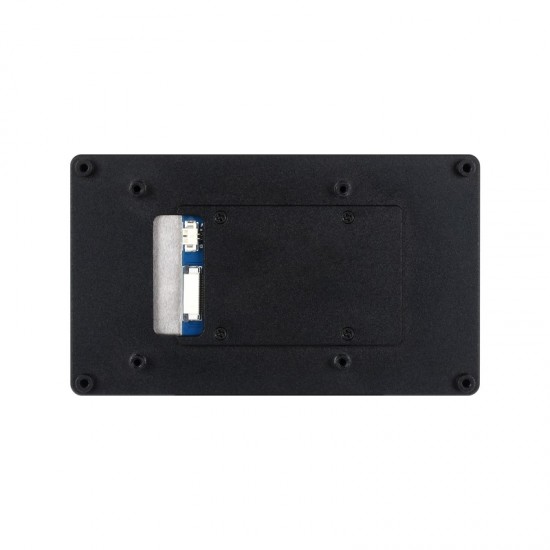

Aluminum alloy back cover design, pure passive cooling design

Specifications

Model: 4-DSI-TOUCH-A
Resolution: 480 × 800 pixels (H × V)
Contrast Ratio: 800:1
Display IC: ST7701S
Touch IC: GT911
Communication Interface MIPI 2-lane
Brightness: 350cd/m²
Outline Dimensions: 108.30 × 65.10 (mm)
Display Area: 86.40 × 51.84 (mm)

Package Includes

1x 4-DSI-TOUCH-A
1x MIPI-DSI-Cable-12cm
1x MX 1.25 2PIN to 2.54 3PIN cable 110mm
1x FFC 22PIN cable ~200mm (opposite sides)
1x FFC 22PIN cable ~100mm (opposite sides)
1x MX1.25 2PIN to MX1.25 4PIN cable ~150mm
1x Standoffs

IPS Display Panel

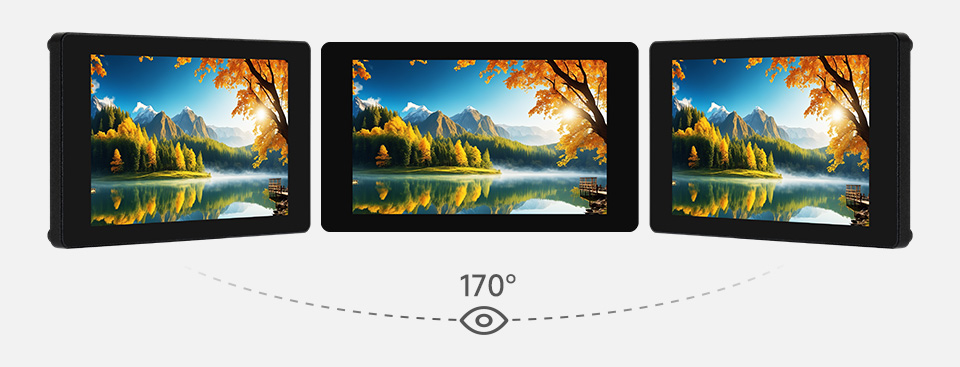

Excellent Display Performance With 170° Wide Viewing Angle

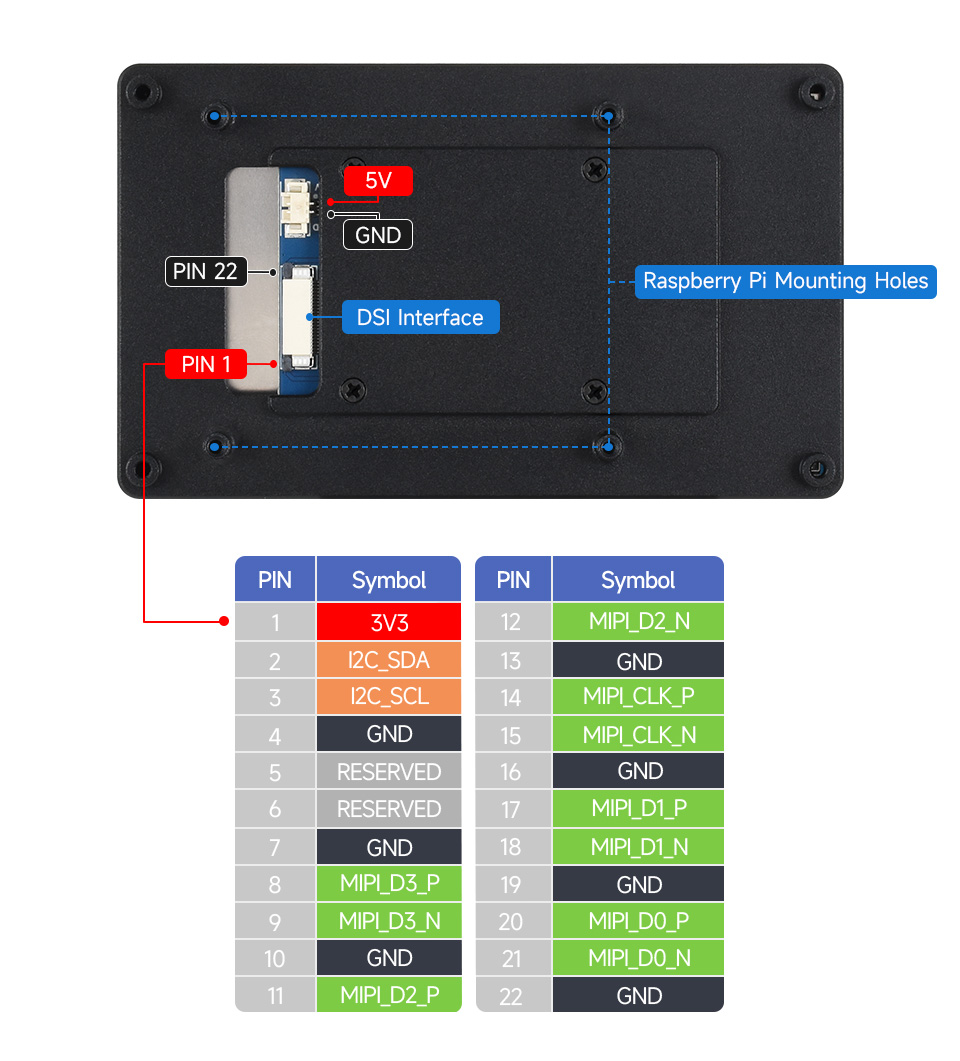

Interface Introduction

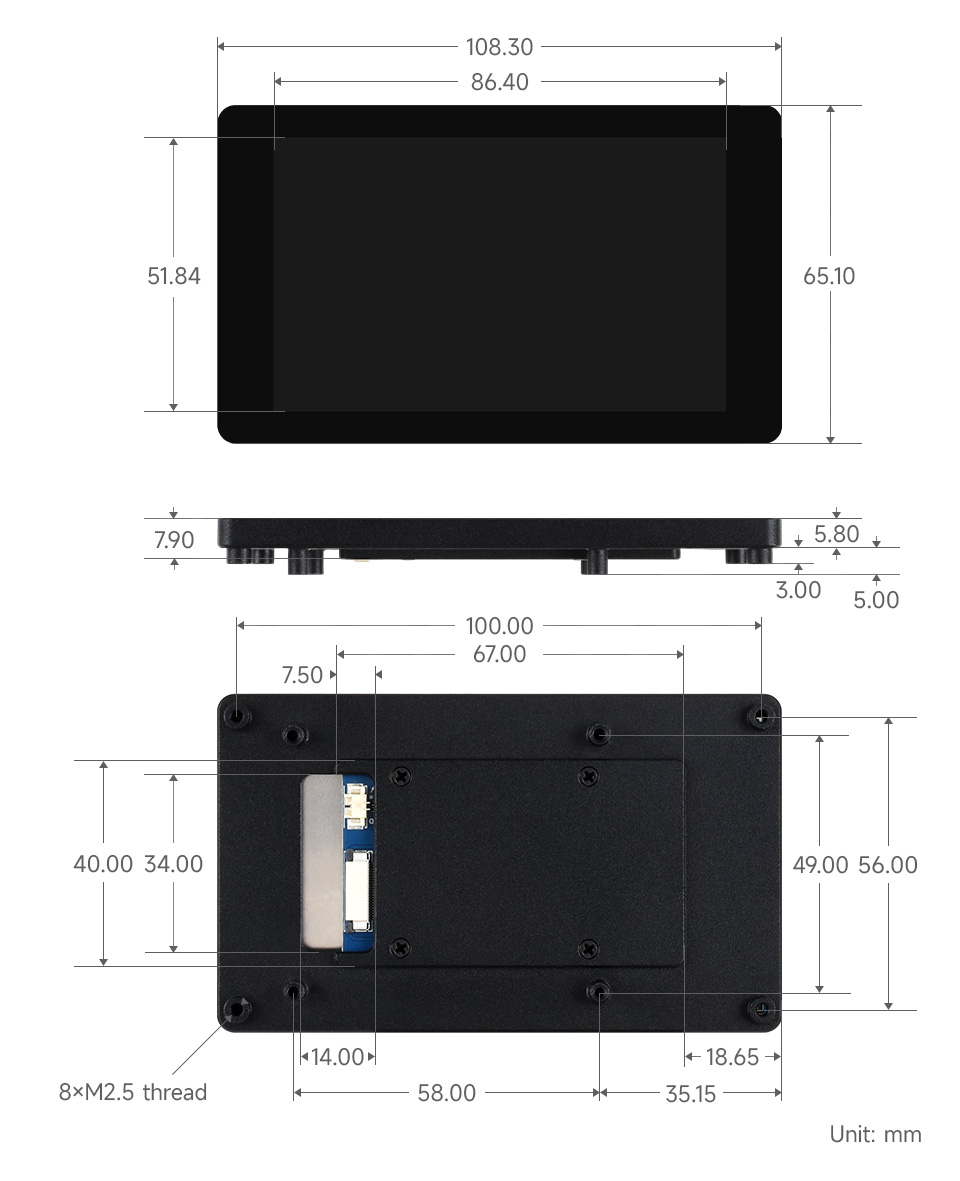

Dimensions
