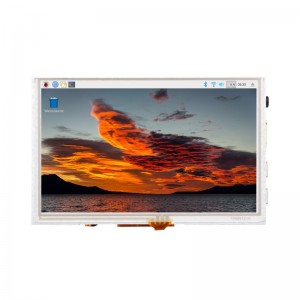

Name: 5inch High-Brightness Wide-bezel Capacitive Touch Display, 1024x600 Pixels, Optical Bonding Toughened Glass Panel, HDMI Interface, IPS Panel
Brand: WaveShare Electronics
SKU: 28084
Price: 5280.00 INR
Availability: OutOfStock

5inch High-Brightness Wide-bezel Capacitive Touch Display, 1024x600 Pixels, Optical Bonding Toughened Glass Panel, HDMI Interface, IPS Panel

WaveShare Electronics

5inch High-Brightness Wide-bezel Capacitive Touch Display, 1024x600 Pixels, Optical Bonding Toughened Glass Panel, HDMI Interface, IPS Panel

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹5,280.00

₹4,474.58 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 45
B2B GST Credit Available

Price in reward points: 4475

Stock: 0 in Stock
SKU: 28084
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

5inch High-Brightness Wide-bezel Capacitive Touch Display, 1024x600 Pixels, Optical Bonding Toughened Glass Panel, HDMI Interface, IPS Panel

5DP-CAPLCD is a universal capacitive touch screen with high resolution and is compatible with most standard HDMI devices.

It boasts a toughened glass capacitive touch panel that results in a smooth multi-touch effect while being thin and lightweight.

The baseboard has integrated interfaces, which enables users to integrate it into an all-in-one project more conveniently.

User Manual / Datasheet / Example Codes Etc.

Features

5-inch IPS screen with a hardware resolution of 1024x600, and the software resolution can reach up to 1920x1080.
5-point capacitive touch, with toughened glass panel, hardness up to 6H.
Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi.
Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.
Support multi-language OSD menu (can be used for power control, adjusting brightness/contrast, etc.)
Support HDMI audio output, onboard 3.5mm headphone jack, and 4PIN speaker jack.

Specifications

Model: 5DP-CAPLCD
Size: 5.0Inch
Viewing Angle: 178Deg
Resolution: 1024x600Pixels
Display Area: 108.03(H)×64.8(V) mm
Pixel Pitch: 0.1055(H) x 0.1080(V) mm
Color Gamut: 58% NTSC
Maximum Brightness: 800 cd/m²
Contrast: 800:1
Backlight Adjustment: OSD Menu Brightness Adjustment
Refreshing Rate: 60Hz
Display Interface: Standard HDMI Interface
Touch Port: Type-C Interface
Power Port: Type-C Interface
Power Consumption: 4.2Watt

Wide viewing angle IPS display panel

Excellent Display & Color Performance, Wide viewing angle up to 178°

Package Includes

Interface Introduction

Dimensions
