7inch HDMI Round Capacitive Touch Display, 1080 × 1080 Resolution, IPS Display Panel, 10-Point Touch, Optical Bonding Toughened Glass Panel

Experience a unique and modern display solution with this 7-inch round HDMI capacitive touch screen. Featuring a crisp 1080 × 1080 resolution and a high-quality IPS panel, it delivers vibrant colors, wide viewing angles, and sharp image clarity—ideal for creative interfaces and embedded applications.

The display supports advanced 10-point capacitive touch, enabling smooth, responsive, and precise multi-touch interactions. Its optical bonding technology enhances contrast, reduces glare, and improves durability, while the toughened glass panel provides added protection against scratches and daily wear.

With HDMI compatibility, this display is easy to connect to a wide range of devices such as Raspberry Pi, mini PCs, and other HDMI-enabled systems, making it perfect for smart home dashboards, industrial control panels, digital signage, and custom UI projects.

User Manual / Datasheet / Example Codes Etc.

Features

7inch IPS round screen with 1080x1080 hardware resolution
10-point capacitive touch with toughened glass panel, hardness up to 6H
Uses optical bonding touch process for better display effect
When used with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie
When used as a computer monitor, supports Windows 11 / 10 / 8.1 / 8 / 7
Supports HDMI audio output, onboard 3.5mm headphone jack and 4PIN speaker interface

Specifications

Product Model: 7inch 1080x1080 LCD
Size: 7.0 Inch
Viewing Angle: 160 Deg
Resolution: 1080x1080 Pixels
Overall Dimensions: 230.34(H)×230.34(V)×6.45(D) mm
Display Area: 177.55(H)×177.55(V) mm
Color Gamut: 65% NTSC
Maximum Brightness: 800 cd/m²
Contrast Ratio: 1200:1
Backlight Adjustment: Button backlight adjustment
Refresh Rate: 60Hz
Display Interface: Standard HDMI interface
Power Interface: 5V Type-C power supply
Power consumption: 2 Watt

Package Includes

7inch 1080x1080 LCD x1
HDMI flat cable ~1m x1
USB Type-A male port to Type-C male port cable ~1m x1
USB to Type-C adapter (B) x1
USB to Type-C adapter (C) x1
HDMI to Micro HDMI adapter x1
HDMI adapter x1
Screws pack ×1

IPS Display Panel

Excellent Display Performance With 160° Wide Viewing Angle

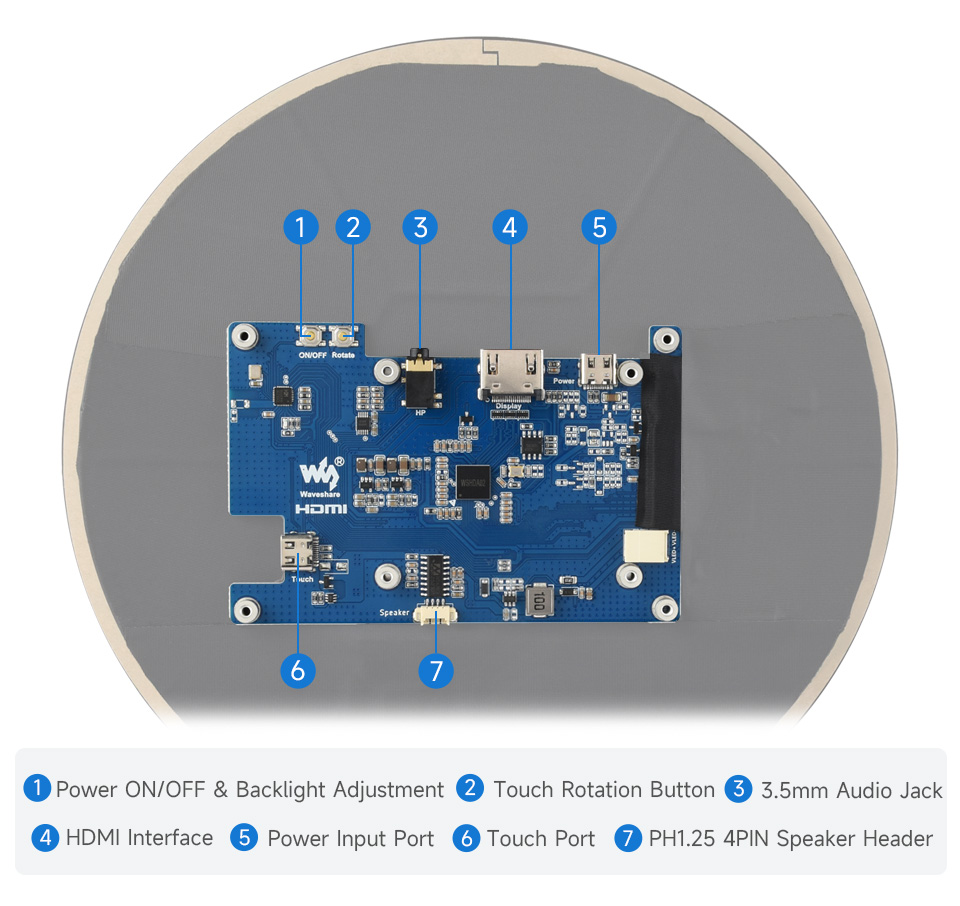

Interface Introduction

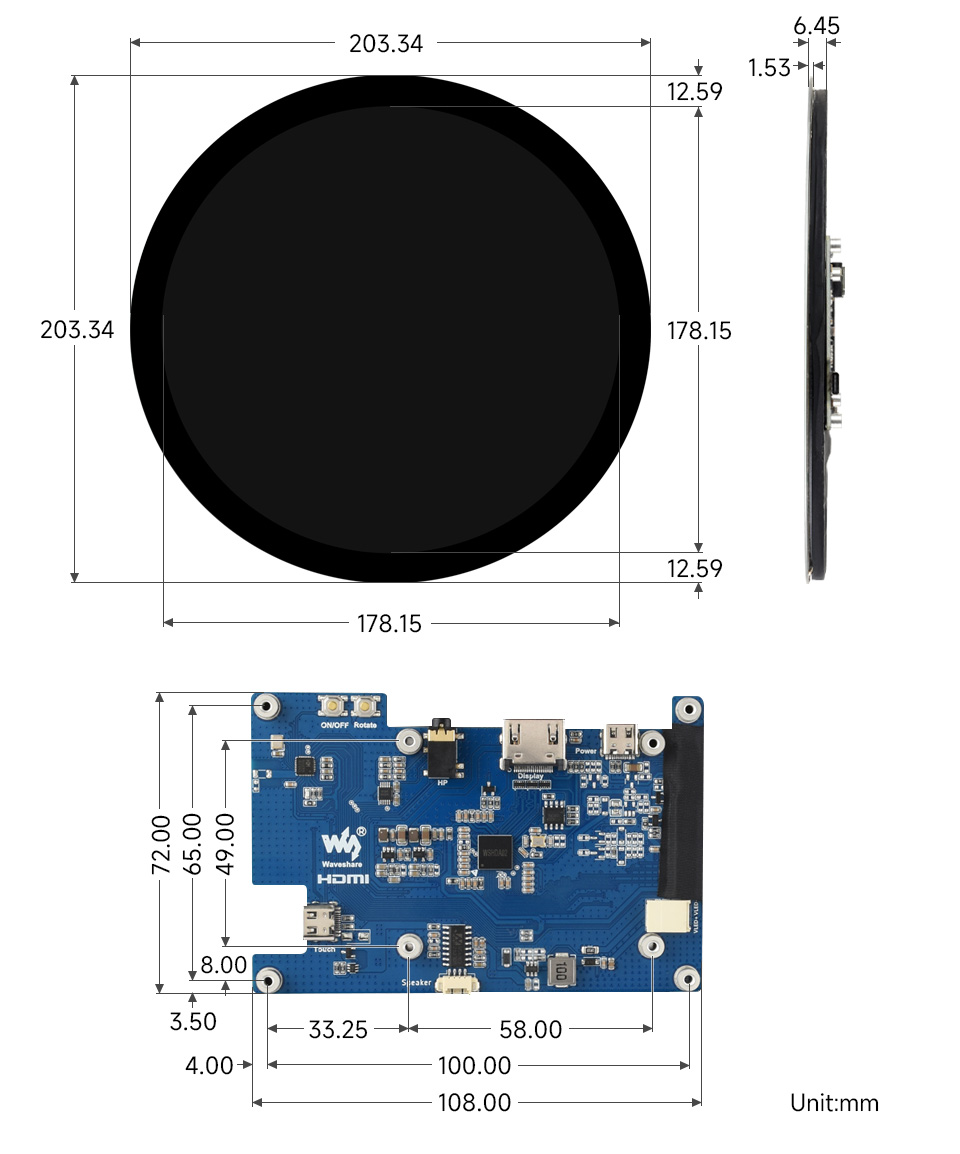

Dimensions
