Elecrow CrowPanel Advanced 7inch |ESP32-P4 HMI AI Display 1024x600 IPS Touch Screen with WiFi 6 Compatible with Arduino/LVGL - Without Camera

Elecrow CrowPanel Advanced 7inch |ESP32-P4 HMI AI Display 1024x600 IPS Touch Screen with WiFi 6 Compatible with Arduino/LVGL - Without Camera

The CrowPanel Advance ESP32-P4 HMI series is a high-performance AI-powered intelligent interactive terminal designed for demanding applications. Its innovative dual-chip architecture combines powerful computing power, rich multimedia features, and ultimate expansion flexibility, making it the ideal core for driving the next generation of smart devices.

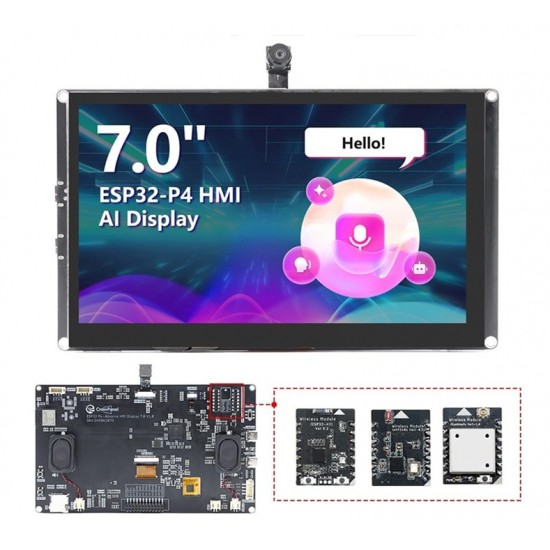

This 7-inch display is powered by the RISC-V-based ESP32-P4 SoC, featuring both high-performance and low-power cores, operating at frequencies up to 400MHz. Combined with the generous storage capacity of 16MB Flash and 32MB PSRAM, it provides ample power for complex graphical interfaces and real-time AI tasks.

The onboard ESP32-C6-MINI-1 module supports 2.4GHz Wi-Fi 6 and Bluetooth 5.3, ensuring stable and reliable connectivity with excellent power consumption.

The 7-inch IPS touchscreen integrates capacitive touch technology, providing an intuitive user experience. The integrated 2-megapixel MIPI-CSI camera (optional) not only supports high-definition image capture but also efficiently runs edge AI applications such as real-time facial recognition and dynamic object tracking.

The onboard NS4168 audio codec and single-microphone array provide high-fidelity playback and accurate far-field voice recognition. Equipped with dual-channel speakers, it lays a solid foundation for voice interaction and is suitable for scenarios such as voice assistants and smart home control.

The 7-inch screen also offers ultimate expandability. Equipped with dual USB-C ports (UART adapter/USB 2.0 Device), 11pin GPIO, multiple Crowtail ports (supporting I2C/UART protocols), and interchangeable wireless module slots (supporting Thread, Zigbee, etc.), it easily adapts to various sensors and communication protocols.

This version does not included camera module.

User Manual / Datasheet / Example Codes Etc.

Features

• Powerful dual-core architecture, enhanced performance
• Equipped with the RISC-V architecture ESP32-P4 dual-core processor (400MHz high-performance core + low-power core), equipped with 16MB Flash and 32MB PSRAM, it easily handles complex graphical interfaces and real-time AI calculations.
• An independent ESP32-C6-MINI-1 wireless module supports Wi-Fi 6 and Bluetooth 5.3, balancing stable connectivity with low power consumption.
• AI acceleration, fully upgraded performance
• Significantly improved computing power compared to previous generations, suitable for high-load tasks such as real-time data analysis, and suitable for high-performance applications such as smart home appliances and industrial control.
• Supports dual-channel speaker output, making it suitable for scenarios such as voice assistants and smart home control.
• High-definition IPS touchscreen for smooth and natural interaction
• Available in multiple sizes: 5.0/7.0/9.0/10.1 inches, IPS TFT screens support capacitive touch, wide viewing angles, and smoother interaction.
• Integrated intelligent vision, empowering AI applications
• An integrated 2-megapixel MIPI-CSI camera smoothly runs AI vision algorithms like facial recognition and object tracking.
• Rich and comprehensive interfaces for flexible expansion
• Dual USB-C (supporting UART debugging and USB 2.0 Device), 11pin GPIO, and Crowtail (I2C/UART) interfaces facilitate connection to various peripherals and sensors.

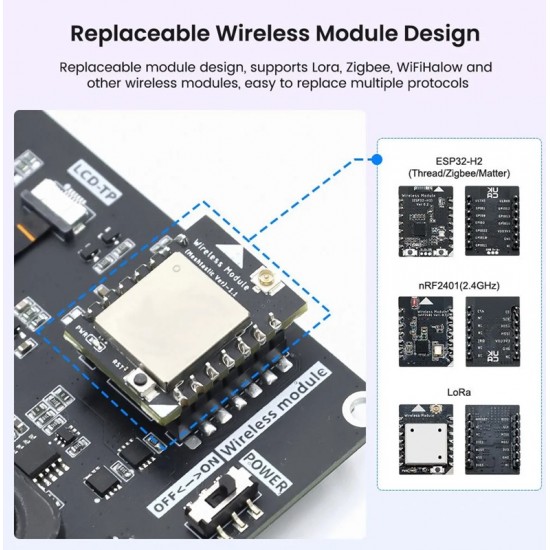

• A replaceable wireless module slot supports multiple communication protocols, including Wi-Fi 6, Thread, Zigbee, allowing a single board to accommodate diverse IoT scenarios.

Specifications

• CPU/SoC: ESP32-P4
• RISC-V 32-bit dual-core processor for HP systems, running at up to 400 MHz;
• RISC-V 32-bit single-core processor for LP systems, running at up to 40 MHz
• System Memory
• 768 KB L2MEM(HP)
• 32 KB SRAM(LP)
• 8 KB TCM
• 32 MB PSRAM
• Memory
• 128 KB ROM(HP)
• 16 KB ROM(LP)
• 16 MB Flash
• Development Environment: ESP-IDF、Arduino IDE
• Screen
• Size: 7.0 inch
• Resolution: 1024*600
• Display Panel: IPS Panel
• Touch Panel: Capacitive Touch, Single/5-point Touch
• Viewing Angle: 178°
• Brightness: 400 cd/m²(Typ.)
• Color Depth: 16.7M (8-bit)
• Wireless Communication - Onboard Antenna
• WiFi: Support 2.4GHz(Wi-Fi6), 802.11a/b/g/n
• Bluetooth: Support Bluetooth 5.3 and BLE
• Other: Zigbee, LoRa, nRF2401, Matter, Thread
• Interface/Function
• Interface: USB2.0, UART, I2C, GPIO female headers, SD card holder, battery socket, speaker jack, camera header, module female headers, etc.
• Function: Audio amplifier, battery charge management, USB to UART, microphones, dual speakers, etc.
• Speaker Connector
• Model: BX-PH 2.0-2PWT
• Number of Pins: 1x2P
• Pin Pitch: 2mm
• Dimensions(L*W*H): 8*8.5*5.6mm
• Monting Type: SMT Right Angle
• Button/LED Indicator
• Reset Button: Yes, press to reset the device
• Boot Button: Yes, press and hold the power button to burn the program
• Power Button: Switch On/Off
• PWR: Device power on/off indication
• CHG: Lithium battery charging status, Low battery state
• Other
• Installation method: All around mounting holes(M3 3.2mm), embedded, shell assembly
• Operating temperature: -20~70 °C
• Storage temperature: -30~80 °C
• Power Input: 5V/2A, USB or UART terminal
• Active Area: 155mm*87mm

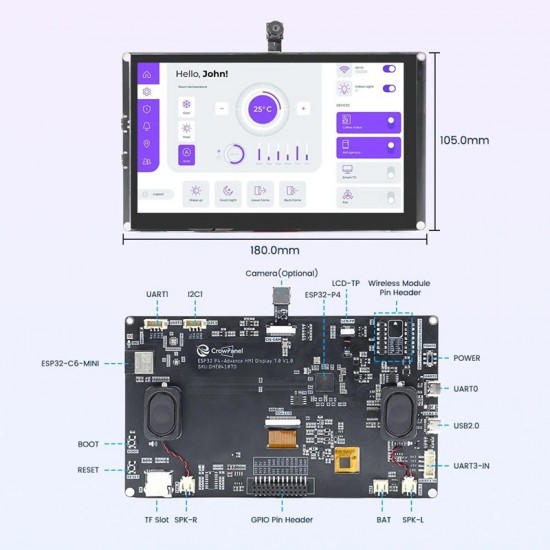

• Dimensions: 180*105mm

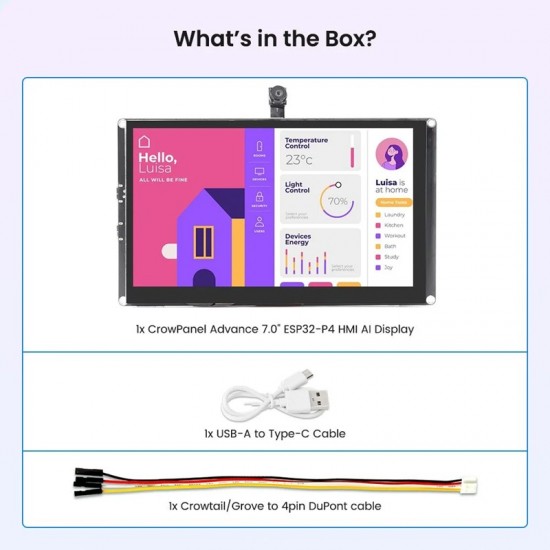

Package Includes

• 1x CrowPanel Advance ESP32-P4 Display-7.0 inch
• 1x USB-A to Type-C Cable
• 1x Crowtail/Grove 4pin DuPont cable

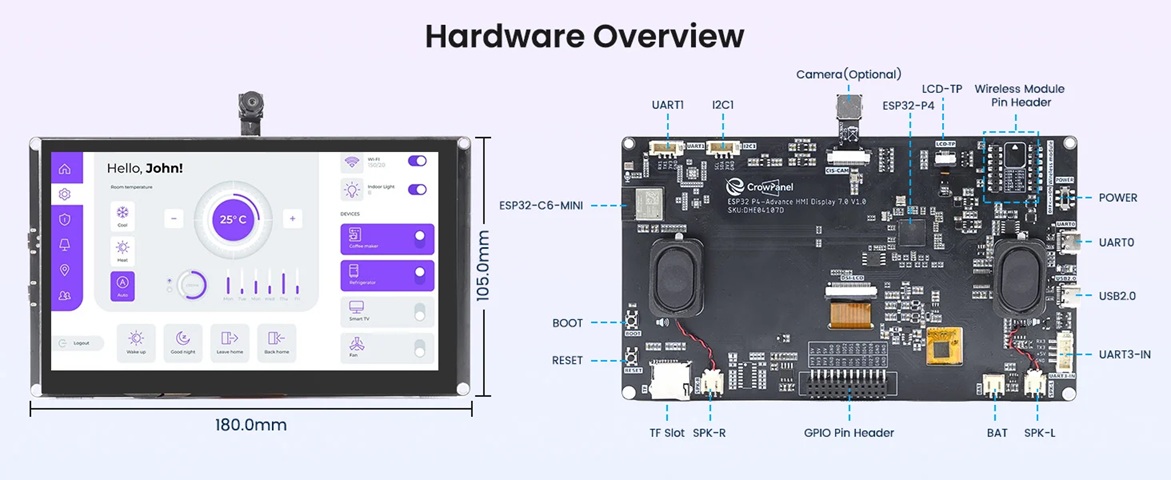

Hardware Overview
