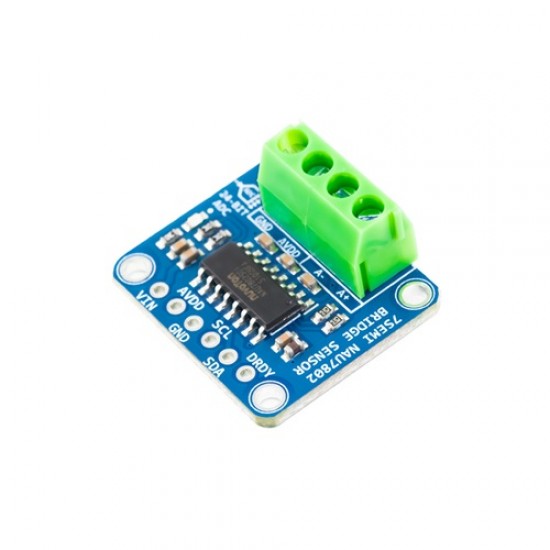

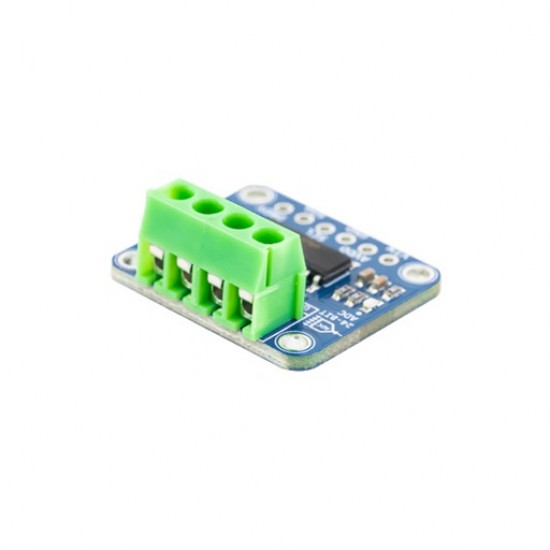

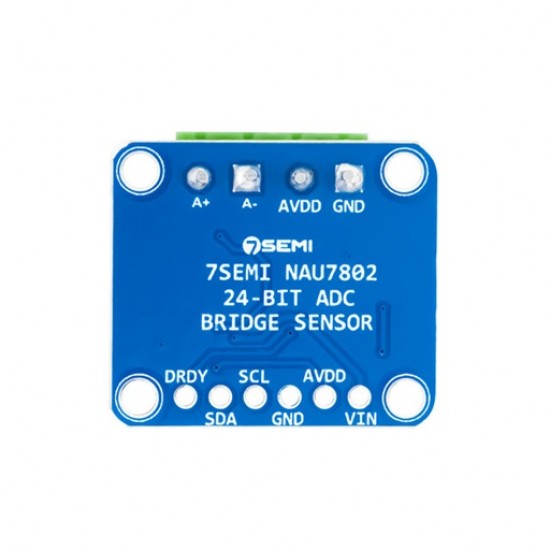

7Semi NAU7802 24-bit ADC Module – I2C Load Cell & Sensor Interface
- 24-Bit ADC: High accuracy for precise measurements.
- I2C Interface: Simple and easy communication.
- Wide Voltage Range: Works from 2.7V to 5.5V.
- Low Power Consumption: Suitable for battery-powered devices.
- Stable Performance: Low-noise operation for reliable readings.
- Ideal for Sensors: Works with load cells, strain gauges, and pressure sensors.
- Compact Design: Easy to integrate into embedded systems.
Specifications
- CHIP USED: NAU7802
- CATEGORY: ADC
- SUPPLY VOLTAGE (Vdd): 3.3v to 5v
- OPERATING TEMPRATURE: -40°C TO 80°C
- COMMUNICATION INTERFACE: I2C
- RESOLUTION: 24 BIT
- SAMPLING RATE (SPS): 320 KSPS
- TOPOLOGY:delta-sigma (ΔΣ) + PGA

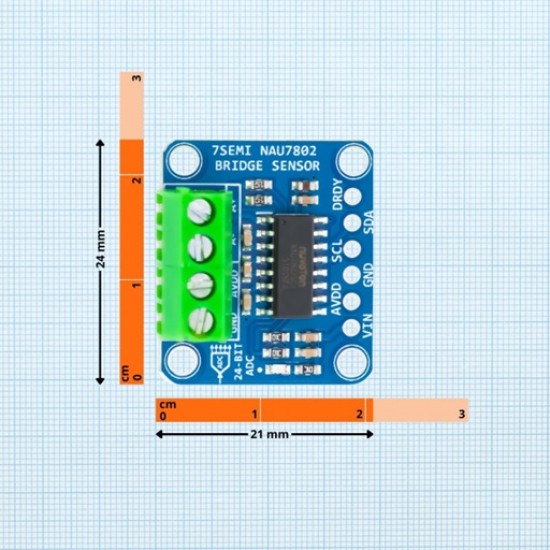

- DIMENSION: L=24mm W=21mm H=12.39mm
Package Includes
- 1x 7Semi NAU7802 24-bit ADC Module – I2C Load Cell & Sensor Interface
