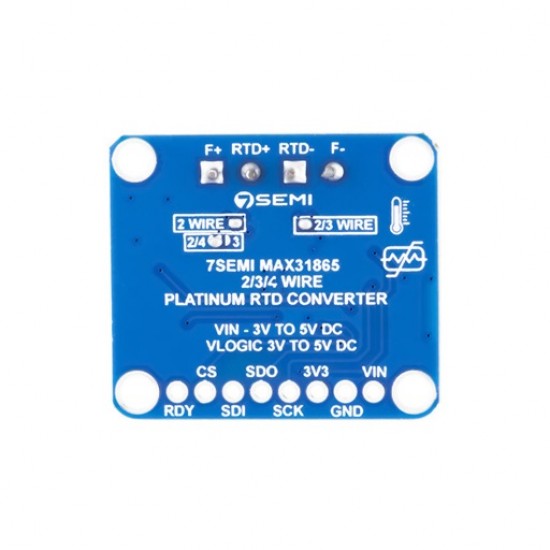

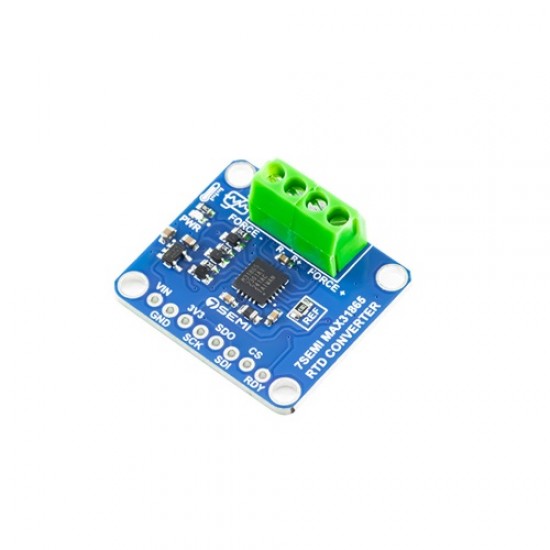

7Semi PT1000 RTD 2-Wire Temperature Sensor Amplifier Breakout Board - MAX31865 (MPN: ES-12192)

7Semi PT1000 RTD 2-Wire Temperature Sensor Amplifier Breakout Board - MAX31865

The 7Semi PT1000 RTD 2-Wire Temperature Sensor Amplifier Breakout Board features the MAX31865 RTD-to-digital converter, enabling precise temperature measurements with PT1000 sensors. It supports 2, 3, and 4-wire configurations, compensating for lead resistance to enhance accuracy. The board interfaces with microcontrollers via SPI and operates at 3.3V or 5V, making it suitable for industrial and laboratory applications.

Datasheet

Features

• Industrial-Grade Precision: The PT1000 RTD, a cornerstone of industrial temperature monitoring, offers exceptional accuracy and repeatability, surpassing thermocouples in demanding environments.
• MAX31865 RTD Amplifier: This specialized amplifier is designed to read the low resistance of PT1000 RTDs, ensuring optimal signal processing and minimizing errors.
• 2-wire Compatibility: The breakout board supports 2-wire RTD connection configurations, accommodating your specific setup requirements.
• High Accuracy Temperature Sensor: Experience temperature measurement with minimal drift and high resolution, ideal for applications where precision is critical.
• MAX31865 SPI Interface: Seamlessly integrate the breakout board with popular microcontrollers like Arduino and Raspberry Pi for convenient data acquisition and control.
• RTD Amplifier Calibration: The MAX31865 RTD amplifier offers calibration capabilities, ensuring consistent and accurate readings over time.
• Fault Detection: Built-in fault detection mechanisms help identify issues like sensor disconnections or over-temperature conditions, enhancing system reliability.
• Versatile Applications: Ideal for thermal cycling, industrial process control, laboratory experiments, and any scenario demanding high accuracy temperature sensing.

Specifications

• Type of Product: Temprature sensor
• Platinum resistance: 1000 Ohms at 0C
• Operating Temperature:-40 °C to +85 °C
• Communication interface: 2-Wire

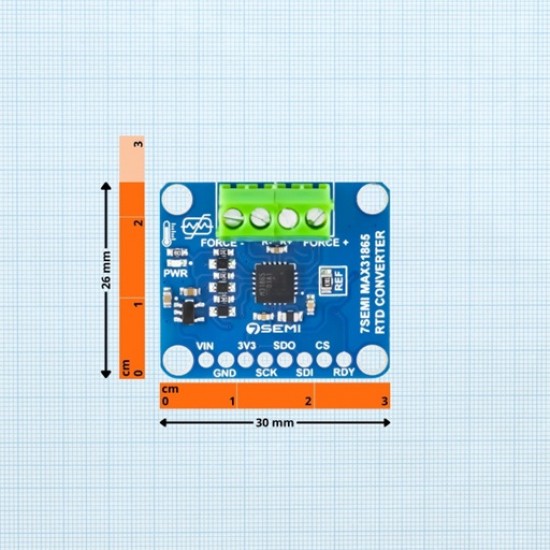

• Dimension In mm: 30mm x 26mm x 12mm

Package Includes

• 1x 7Semi PT1000 RTD 2-Wire Temperature Sensor Amplifier Breakout Board - MAX31865
