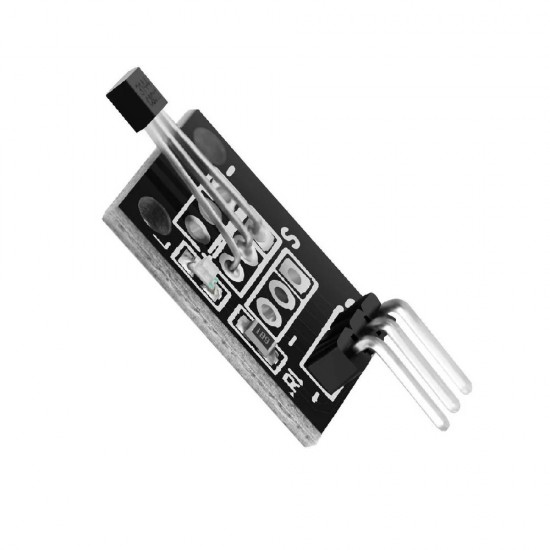

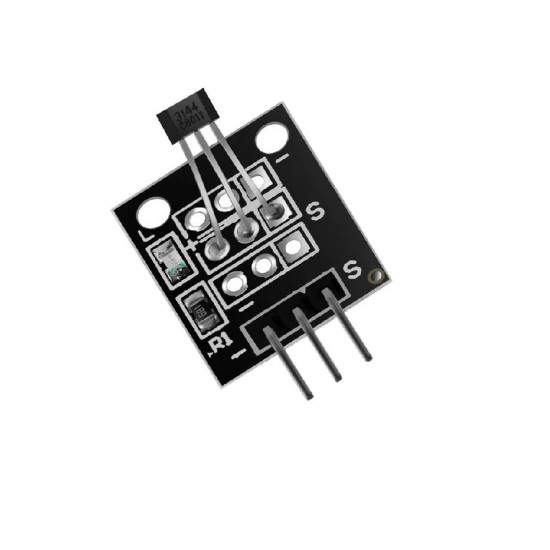

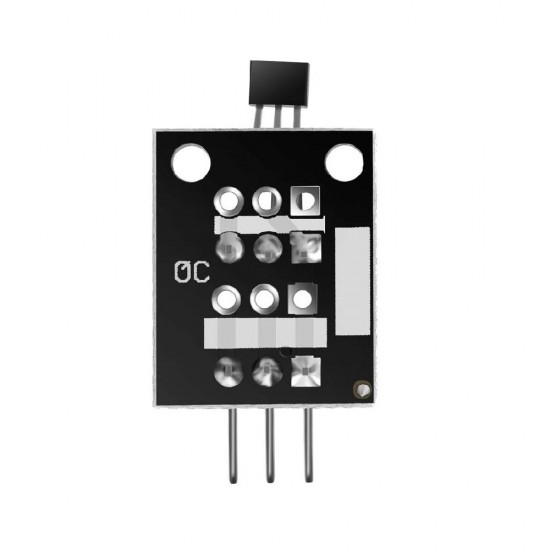

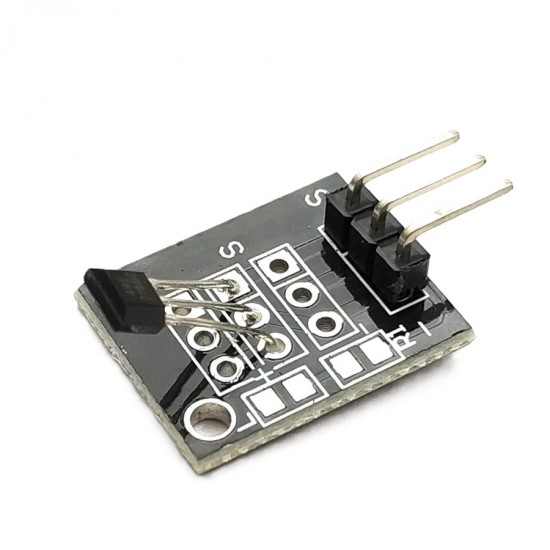

A3144 Hall Effect Sensor Module
- Based on A3144 Unipolar Hall Effect Sensor IC
- Detects magnetic field presence accurately
- Digital output (LOW when magnet detected)
- Compatible with 3.3V and 5V logic levels
- Onboard power indicator LED
- Compact PCB design for easy integration
- Fast response time and high sensitivity
- Long operational life with non-contact sensing
- Ideal for DIY, robotics, and industrial projects
Specifications
- Sensor IC: A3144 Hall Effect Sensor
- Operating Voltage: 3.3V – 5V DC
- Output Type: Digital (Open Collector)
- Output Signal:
- LOW when magnetic field is detected
- HIGH when no magnetic field is present
- Current Consumption: ≤ 10 mA
- Operating Temperature: -40°C to +85°C
- Detection Type: Unipolar Magnetic Field
- Interface Pins: VCC, GND, OUT
- Board Size: Compact module (varies by manufacturer)
- Indicator: Onboard LED
Package Includes
- 1x A3144 Hall Effect Sensor Module
