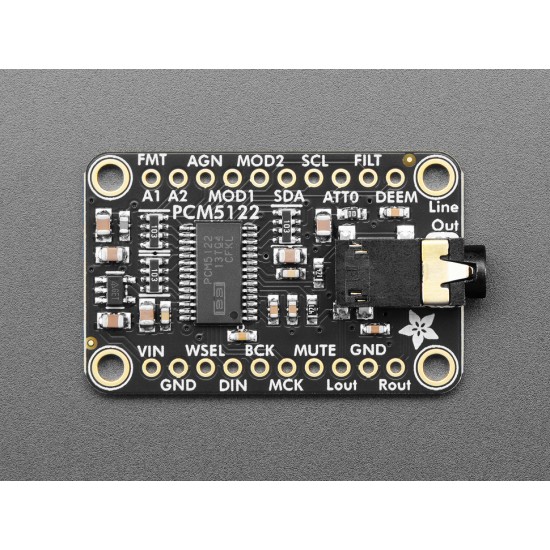

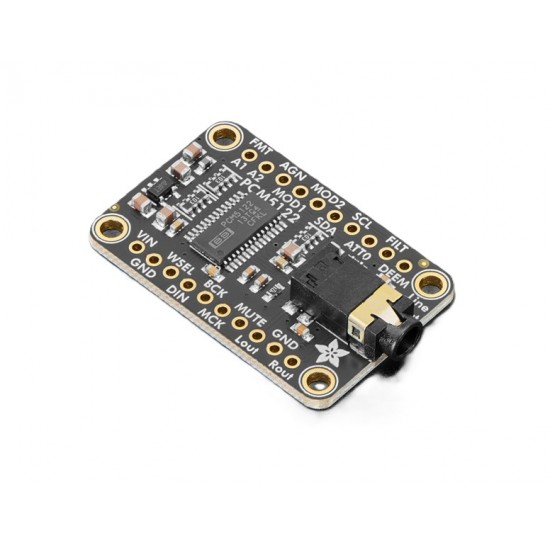

Adafruit PCM5122 I2S DAC Board with Line Level Output - HW, I2C or SPI
The Adafruit PCM5122 I2S DAC Board with Line Level Output is a high-quality stereo digital-to-analog converter designed for converting I2S digital audio into clean analog audio output. It supports hardware, I2C, or SPI control modes, making it highly flexible for projects using Raspberry Pi, ESP32, RP2040, Arduino-compatible boards, and other microcontrollers. The board delivers excellent audio performance with up to 112dB dynamic range and supports 16-bit, 24-bit, and 32-bit audio formats without requiring an external MCLK signal.
Ideal for DIY audio systems, embedded sound applications, internet radios, media players, and smart speaker projects, the PCM5122 DAC offers line-level stereo output through an onboard 3.5mm audio jack and breakout pads. The board supports automatic audio format detection and can operate in standalone hardware mode for quick setup or through I2C/SPI for advanced digital volume control, filtering, mute functions, and EQ adjustments.
Features
- PCM5122 high-performance stereo DAC
- Supports I2S digital audio interface
- Hardware, I2C, and SPI configurable modes
- No external MCLK required
- Stereo line-level analog output

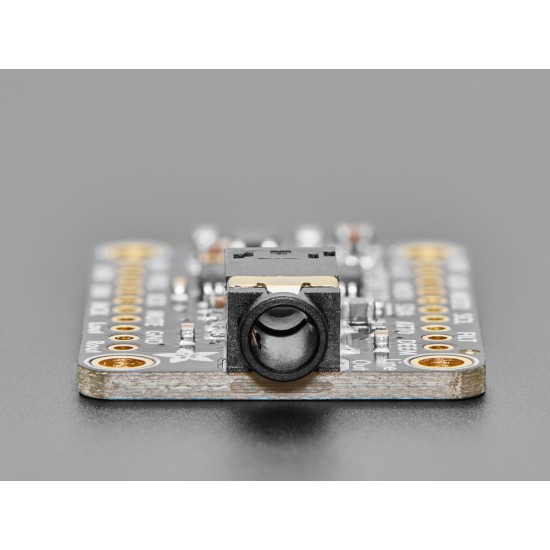

- 3.5mm onboard audio jack
- Supports 16/24/32-bit audio formats
- Up to 112dB dynamic range
- Low THD performance (-93dB)
- Compatible with Raspberry Pi, ESP32, RP2040, Arduino and more
- Configurable gain, mute, de-emphasis, and filters
- 3.3V logic compatible data interface
- Power input range: 3V to 5V DC
Specifications
- DAC Chip: PCM5122
- Audio Interface: I2S
- Control Interface: Hardware / I2C / SPI
- Output Type: Stereo Line-Level
- Output Connector: 3.5mm Audio Jack + Breakout Pads
- Supported Audio Resolution: 16-bit / 24-bit / 32-bit
- Signal-to-Noise Ratio: 112dB
- THD: -93dB
- Logic Level: 3.3V
- Supply Voltage: 3V–5V DC
- Default I2C Address: 0x4C
- Audio Output Load: ≥1KΩ recommended

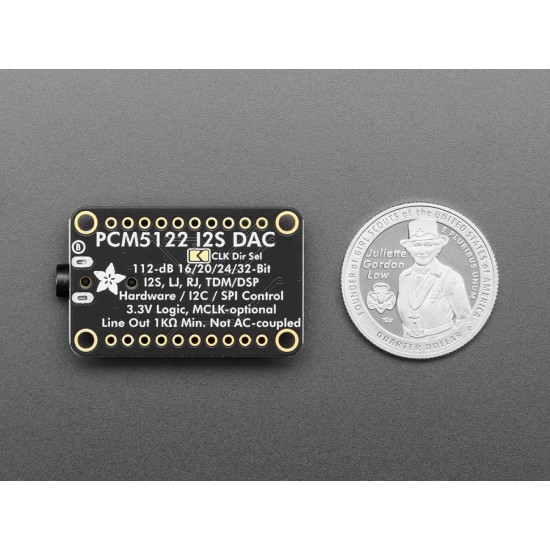

- Dimensions: 37.6mm x 22.8mm x 6.4mm
Package Includes

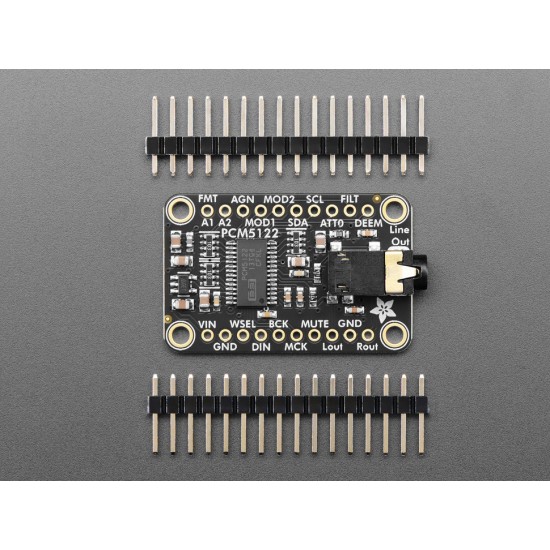

- 1xPCM5122 I2S DAC Board with Line Level Output - HW, I2C or SPI
