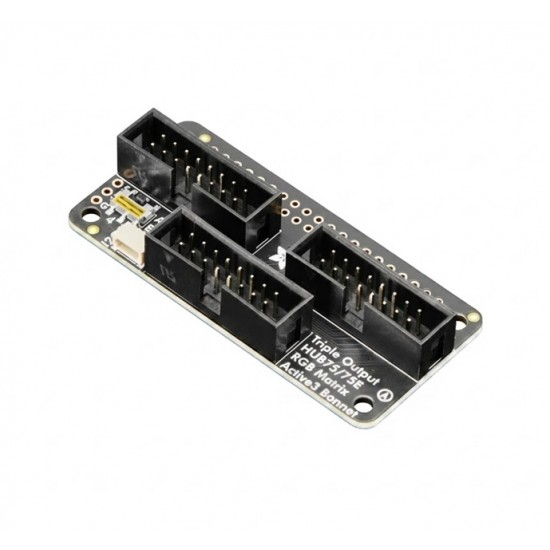

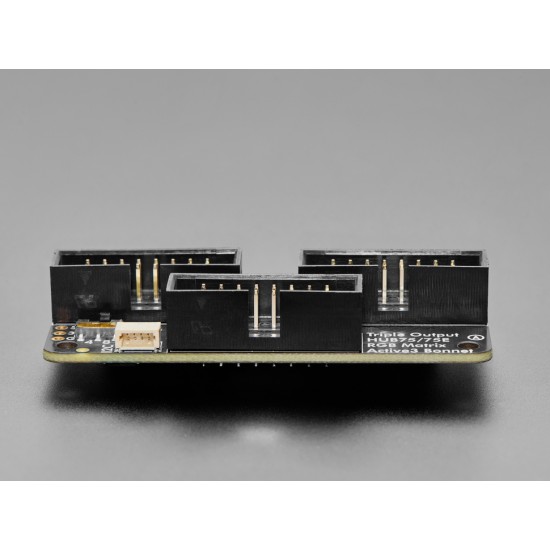

Adafruit Triple LED Matrix Bonnet for Raspberry Pi - For HUB75
The Adafruit Triple LED Matrix Bonnet for Raspberry Pi is a compact and powerful interface board designed to drive HUB75 RGB LED matrix panels directly from a Raspberry Pi. It plugs onto the Raspberry Pi’s 40-pin GPIO header and enables control of up to three parallel HUB75 LED matrix chains, making it ideal for creating large scrolling displays, animated signboards, dashboards, gaming displays, and interactive LED walls.

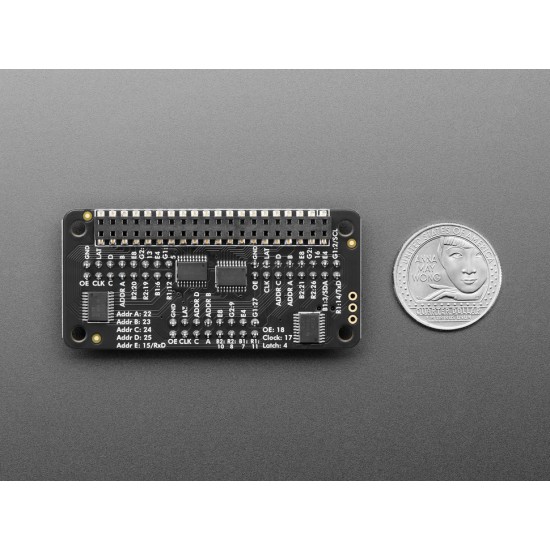

Unlike standard single-panel matrix bonnets, this Triple Matrix Bonnet supports “active3” parallel output, allowing approximately three times more pixels and smoother performance for larger LED installations. It features onboard level shifting circuitry that converts the Raspberry Pi’s 3.3V logic to reliable 5V signals required by HUB75 LED matrices, ensuring stable and glitch-free operation.

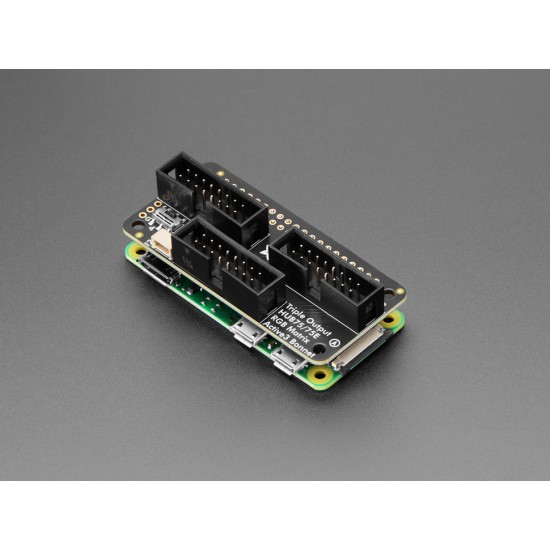

The bonnet is fully assembled and supports a wide range of Raspberry Pi boards including Raspberry Pi Zero, Pi 2, Pi 3, Pi 4, and Pi 5 models equipped with a 40-pin GPIO connector. It works with popular HUB75 RGB matrix panel sizes such as 16×32, 32×32, 32×64, and 64×64. An onboard switch allows easy configuration of the Address E pin for compatibility with different panel types.
Features
- Supports driving up to 3 parallel HUB75 RGB LED matrix chains (“active3” configuration)
- Compatible with HUB75 LED matrix panels including 16×32, 32×32, 32×64, and 64×64 sizes
- Designed for Raspberry Pi boards with 40-pin GPIO headers
- Onboard level shifters convert 3.3V GPIO signals to reliable 5V logic
- Plug-and-play bonnet design for easy installation
- Fully assembled board with no soldering required
- Supports large multi-panel LED wall and scrolling display projects
- Compatible with Raspberry Pi Zero, Pi 2, Pi 3, Pi 4, and Pi 5
- Supports Python and C/C++ libraries for matrix control
- Works with rpi-rgb-led-matrix driver on Pi 0–4
- Supports PIO-based matrix driver for Raspberry Pi 5

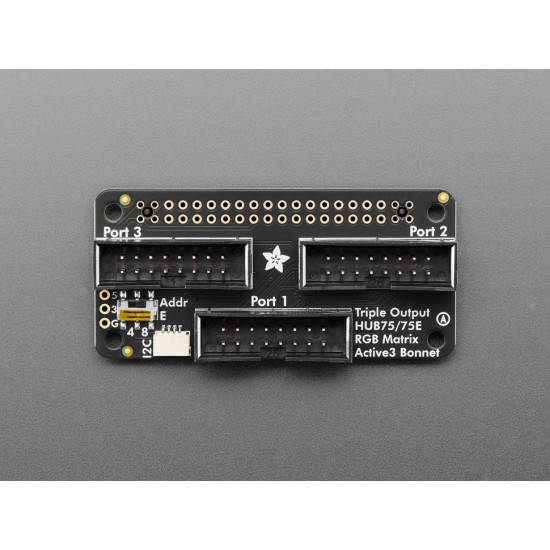

- Onboard Address E selection switch for 64×64 panel compatibility
- Allows daisy-chaining of multiple RGB matrix panels
- Compact bonnet form factor for embedded and display applications
- Ideal for digital signage, animated displays, dashboards, and IoT projects
- Clean and stable signal output for flicker-free operation
- Compatible with Adafruit HUB75 RGB matrices and many standard HUB75 panels
- Easy IDC cable connectivity for simplified wiring
- Supports high refresh rate LED animations and graphics
Specifications
- Product Name: Adafruit Triple LED Matrix Bonnet for Raspberry Pi
- Product Type: RGB LED Matrix Bonnet
- Supported Display Interface: HUB75
- Parallel Output Support: Up to 3 matrix chains
- GPIO Interface: 40-pin Raspberry Pi GPIO
- Logic Level Conversion: 3.3V to 5V onboard level shifting
- Supported Raspberry Pi Models: Pi Zero, Zero W/WH, A+, B+, Pi 2, Pi 3, Pi 4, Pi 5
- Compatible Matrix Sizes: 16×32, 32×32, 32×64, 64×64
- Power Requirement: External 5V high-current supply required
- Recommended PSU: 5V 10A or higher
- Connectivity: IDC HUB75 connectors
- Driver Support: rpi-rgb-led-matrix, Adafruit PIO Matrix Driver
- Programming Support: Python, C/C++
- Assembly: Fully assembled
- Mounting Style: Raspberry Pi Bonnet
- Address Line Support: Configurable Address E pin
- Applications: LED walls, scrolling text, gaming displays, dashboards
Package Includes
- 1x Triple LED Matrix Bonnet for Raspberry Pi - For HUB75
