Name: BNO086 IMU mini Breakout for Robotics, AR, VR, and IoT (ES-12235)
Brand: 7Semi
SKU: 08119
Price: 2352.00 INR
Availability: OutOfStock

BNO086 IMU mini Breakout for Robotics, AR, VR, and IoT (ES-12235)

7Semi

BNO086 IMU mini Breakout for Robotics, AR, VR, and IoT (ES-12235)

Based on 0 reviews. - Write a review

₹2,352.00

₹1,993.22 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 20
B2B GST Credit Available

Price in reward points: 1993

Stock: 0 in Stock
SKU: 08119
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

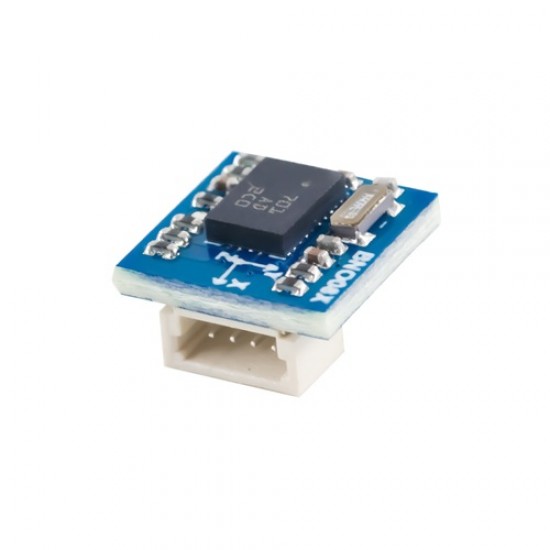

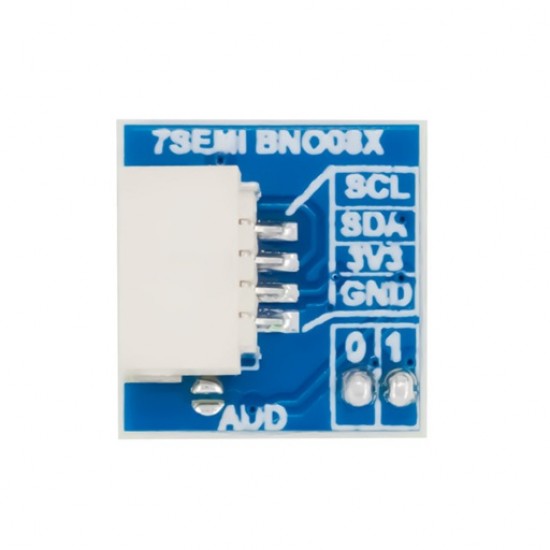

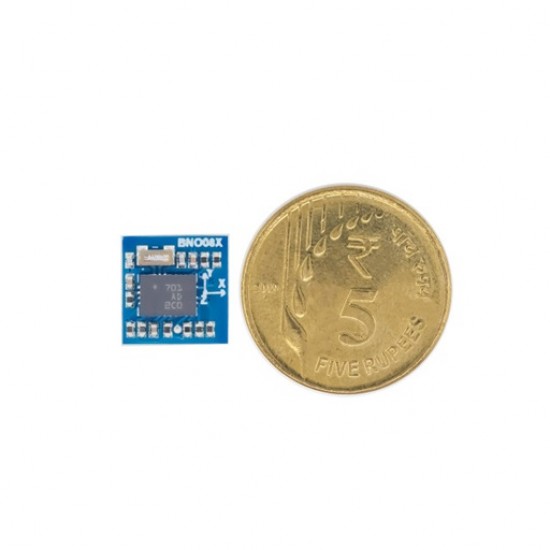

BNO086 IMU mini Breakout for Robotics, AR, VR, and IoT

The 7Semi BNO086 IMU Mini Breakout is a compact and powerful motion sensor used for tracking movement, rotation, and orientation. It combines accelerometer, gyroscope, and magnetometer in one module, so you get full motion data easily. It has built-in sensor fusion, so no need complex calculations, output is already processed and stable. This makes it very useful for robotics, AR/VR projects, and IoT applications. Small size and easy connection make it perfect for hobby projects also.

Datasheet

Features

9-Axis Motion Sensor: Combines accelerometer, gyroscope, and magnetometer
Built-in Sensor Fusion: Gives ready-to-use orientation data
High Accuracy: Smooth and stable motion tracking
Dynamic Calibration: Auto adjusts for better performance
Activity Detection: Can detect walking, running, and motion states
Low Power Usage: Good for battery-based projects
I2C Support: Flexible communication options
Easy Connection: JST connector and breadboard-friendly pins
Compact Design: Small size for embedded projects
Ideal Use: Robotics, AR/VR, IoT, motion tracking

Specifications

Supply Voltage Range: 3.3V
Interface: I2C
AXIS FOV: 9
ACCELARATION:±2g, ±4g, ±8g, ±16g
GYROSCOPE: ±125 / ±250 / ±500 / ±1000 / ±2000 dps
MAGNETOMETER RANGE: 1300UT

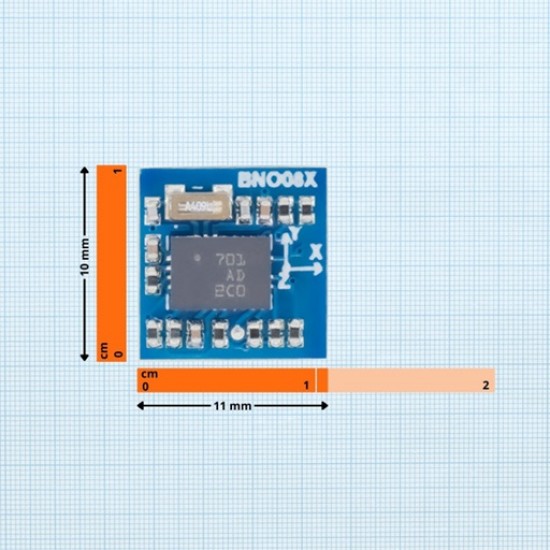

DIMENSION IN MM: l=11mm W = 10mm H= 5.5mm
