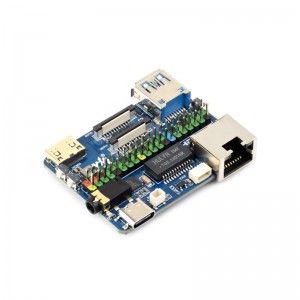

Nano Base Board (B) for Raspberry Pi Compute Module 5, Same Size As The CM5

As the mini IO board of the Raspberry Pi Compute Module 5, CM5-NANO-A is a baseboard that can be used with the Raspberry Pi Compute Module 5. With powerful features integrated into a compact design, it is only the size of a CM5 and has interfaces including USB 3.2 Gen1, HDMI, audio, Ethernet port, etc.

User Manual / Datasheet / Example Codes Etc.

Specifications

CM5 socket: Suitable for all variants of Compute Module 5
Networking: Gigabit Ethernet RJ45 connector
Connector: Raspberry Pi 40PIN GPIO interface × 1
USB: USB 3.2 Gen1 Type A port × 1
MIPI: MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)
Video: Mini HDMI port × 1, supports 4K output
Audio: USB audio 3.5mm jack
Storage: TF card socket for Compute Module 5 Lite (without eMMC) variants
Power input: DC 5V 5A
PCIe: 16PIN PCIe connector (PCIe Gen2/3 x1)
Dimensions: 55 × 41mm

Package Includes

CM5-NANO-B x1
2*20PIN color-coded straight pinheader x1

What's On Board

Dimensions
