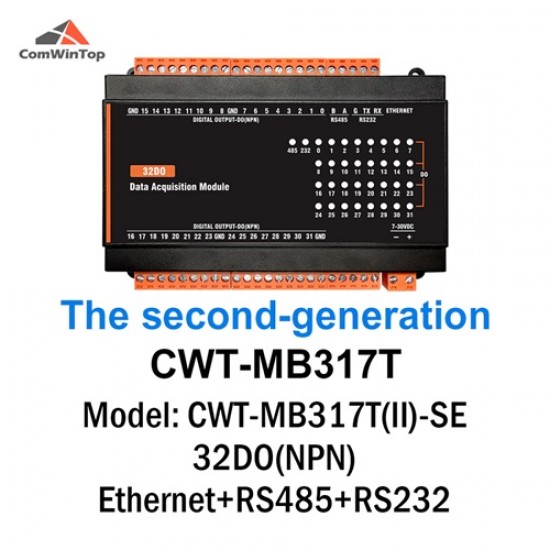

CWT-MB317T(II)-SE 32-Channel Digital Output + Ethernet + RS485 + RS232 Industrial Modbus Digital Output Controller
The CWT-MB317T(II)-SE is a high-performance industrial Modbus digital output controller designed for reliable remote switching, automation control, and distributed I/O applications. Equipped with 32 NPN transistor digital output channels, this controller supports Ethernet, RS485, and RS232 communication interfaces, enabling seamless integration with PLCs, HMIs, SCADA systems, industrial PCs, and IoT platforms. It supports both Modbus TCP/UDP and Modbus RTU protocols, making it suitable for industrial monitoring and centralized control environments.
Built for industrial environments, the module features optocoupler isolation, communication protection, reverse power protection, and a wide 7–35V DC power input range to ensure stable operation under demanding conditions. The compact DIN rail design simplifies installation inside control cabinets and automation panels.
Features
- 32-channel NPN transistor digital outputs
- Multiple communication interfaces: Ethernet + RS485 + RS232
- Supports Modbus TCP, Modbus UDP, and Modbus RTU
- RJ45 Ethernet connectivity for network integration
- Wide input power range: 7–35V DC
- Optocoupler isolation for output protection
- Communication protection with ESD and overcurrent safeguards
- DIN rail or screw mounting installation
- Industrial operating temperature: -40°C to +85°C
- Compatible with PLC, SCADA, HMI, DCS, and automation systems
Specifications
- Model: CWT-MB317T(II)-SE
- Digital Outputs: 32 Channels
- Output Type: NPN Transistor Output
- Output Isolation: Optocoupler Isolation
- Load Voltage: 5–30V DC
- Load Current: 100mA per channel (max)
- CPU: 32-bit ATMEL ARM, 72MHz
- Operating System: GCOS, 10ms scheduling mechanism
- Power Supply: 7–35V DC
- Power Consumption: Approx. 2W
- Power Protection: Reverse polarity protection, isolation design
- Communication Interfaces: Ethernet + RS485 + RS232
- Ethernet Port: RJ45
- Ethernet Protocols: Modbus TCP, Modbus UDP
- Ethernet Speed: 10M / 100Mbps
- Communication Rate: Up to 1000 times/sec
- Default Ethernet IP: 192.168.1.75
- Default Ethernet Port: 502
- Serial Protocol: Modbus RTU
- RS485 / RS232 Baud Rate: 1200–115200 bps (Default: 9600)
- Serial Settings: 9600.N.8.1
- Parity: None / Even / Odd
- Data Bits: 8-bit
- Stop Bits: 1 or 2
- Serial Protection: DCDC Isolation, 2500V Lightning Protection, ESD, Overvoltage & Overcurrent Protection
- Mounting Method: DIN Rail Mounting / Screw Fixing
- Operating Temperature: -40°C to +85°C
- Operating Humidity: 5–95% RH (Non-condensing)
- Protection Rating: IP20
- Watchdog Function: 1.5m Guard / Watchdog Protection
Package Includes
- 1x CWT-MB317T(II)-SE 32-Channel Digital Output + Ethernet + RS485 + RS232 Industrial Modbus Digital Output Controller
