DF ROBOT A380 MXM GPU Carrier Board Kit for LattePanda Mu (Edge Intelligence & 6x 4K Output)

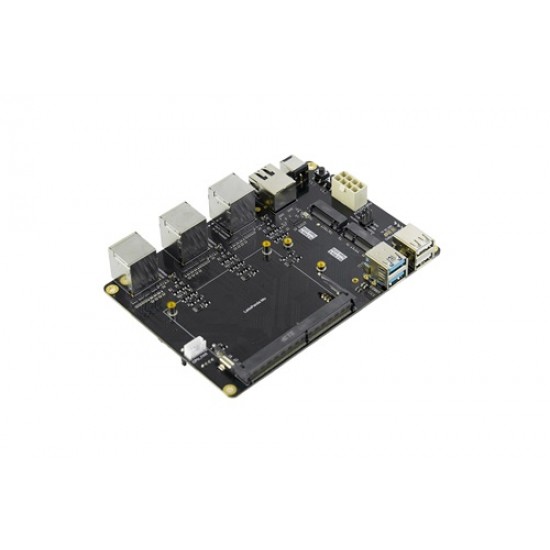

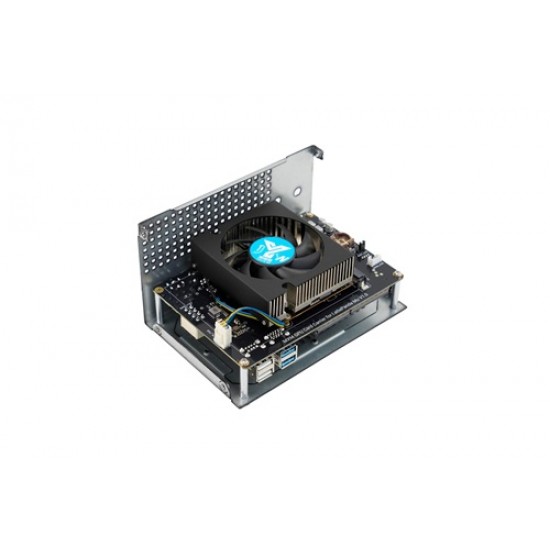

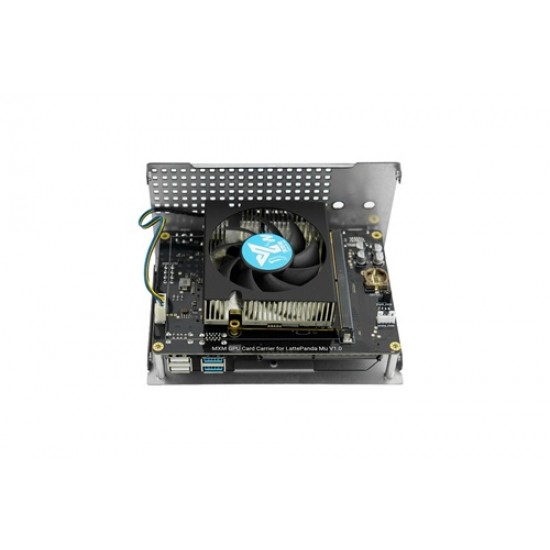

The LattePanda Mu A380 MXM GPU Carrier Board Kit is positioned as an ultra-compact, modular x86 edge computing platform that bridges the gap between low-power single-board computers (SBCs) and bulky industrial PCIe expansion systems. It offers a unique combination of scalable x86 processing, modular MXM discrete graphics, and 6-channel 4K video output within a standardized embedded footprint.

User Manual / Datasheet / Example Codes Etc.

Applications

High-Density Digital Signage & Video Walls
Localized Edge AI Inference
Interactive Media Installations
Multi-Stream Industrial Machine Vision

Specifications

Core Slot

Compute Module: LattePanda Mu Slot
GPU Module: MXM 3.0/3.1 (Type A/B Compatible)

Video Output

HDMI: 3 x HDMI, Each supports 4K@60Hz (Mu iGPU 2-ch + MXM dGPU 1-ch)
DisplayPort(DP): 3 x DP, Each supports 4K@60Hz (All from MXM dGPU)

Expansion Slots

M.2 M Key: 2230, PCIe 3.0 x1
M.2 E Key: 2230, PCIe 3.0 x1 + USB2.0

Internal I/O

F_Front: PWRBTN, RESET, PLED (Standard 2.54mm Pitch)
CPU Fan: PH2.0-4P
MXM Fan: PH2.0-4P & PH2.5-4P
PWR_FAN Jumper: 2.54mm Pin Header (5V/12V selectable)
RTC: CR1220 battery holder

External Ports

USB: 2 x USB 3.2 Gen2 + 2 x USB 2.0
Ethernet: 1 x RJ45, 10/100/1000Mbps Auto-Negotiation

Mechanical

Carrier Board Size: 146 x 102mm
Overall Size: 159 x 107.5 x 88.5mm

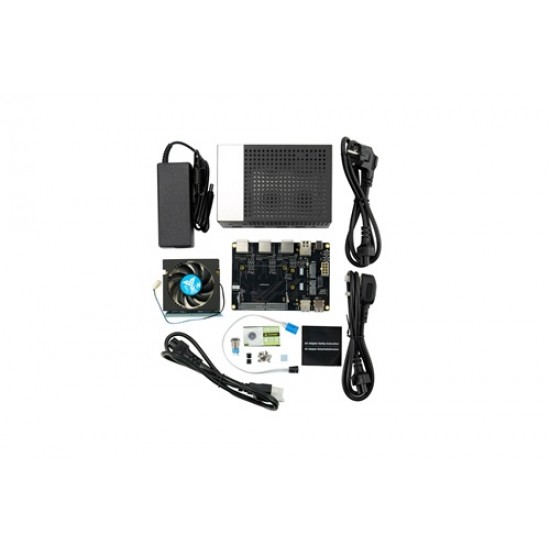

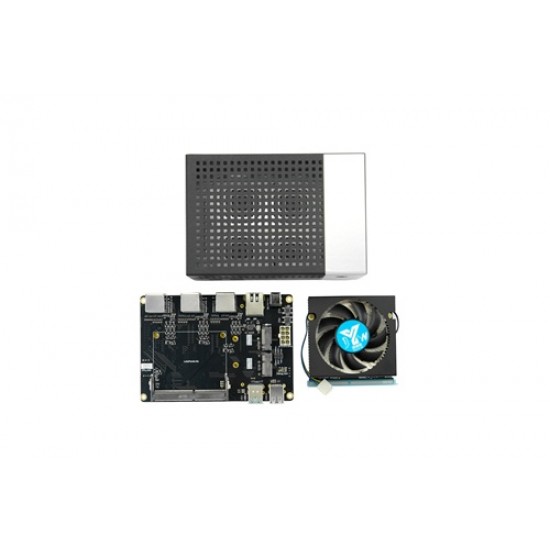

Package Includes

LattePanda Mu GPU Carrier Board x1

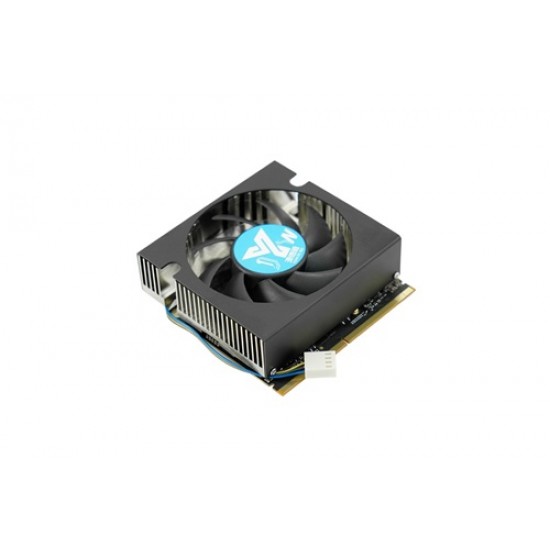

Intel Arc A380 MXM Graphics Card x1 (Pre-assembled with cooling fan)

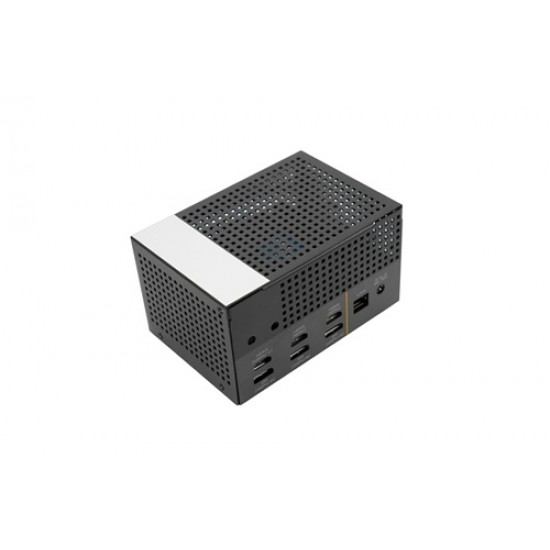

Metal Enclosure x1
Power Adapter x1
AC Power Cords x3 (US/EU/UK standards included)
12mm Metal Push-button Switch x1 (with integrated LED indicator)
Screw Pack x1
CR1220 RTC Battery x1
Thermal Pad (10x10x5mm) x1
