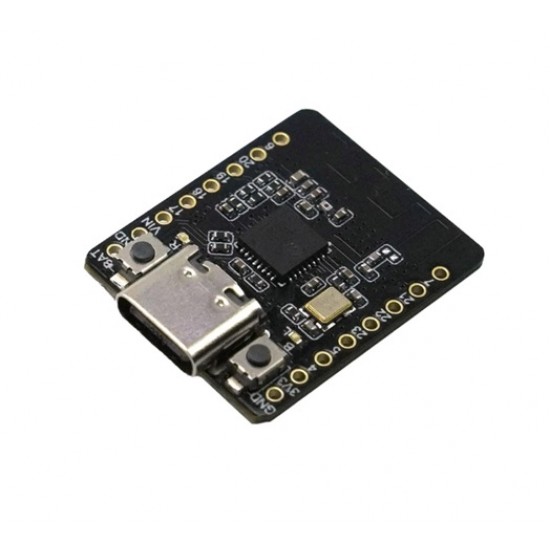

DF ROBOT Beetle ESP32 C6 Mini Development Board for Wireless Smart Wearable Device (Supports BLE / Matter)

Beetle ESP32-C6 is a mini size Arduino low-power IoT development board based on the ESP32-C6 chip, featuring a compact design with dimensions as small as a coin (25*20.5mm). The ESP32-C6 is equipped with a high-performance 160MHz RISC-V 32-bit processor, supporting communication protocols such as Wi-Fi 6, Bluetooth 5, Zigbee 3.0, Thread 1.3, and Matter. It is capable of connecting to various IoT networks using multiple communication protocols, making it ideal for use as a Matter terminal device. The development board integrates lithium battery charging management, allowing for battery charging without the need for external modules. This feature contributes to a more compact project size, making it highly suitable for wearable applications.

User Manual / Datasheet / Example Codes Etc.

Features

Ultra-compact size: Measuring only 25*20.5mm, perfect for wearable projects.
Multi-Protocol Support: Equipped with the ESP32-C6 chip, supporting Wi-Fi 6, Bluetooth 5 (BLE), Zigbee, Thread, and Matter.
Ultra-Low Power Consumption: Achieves a deep-sleep current of just 37µA, maximizing battery life for IoT devices.
Wi-Fi 6 Ready: Lower latency and reduced power consumption using Target Wake Time (TWT) technology.
Integrated Battery Management: Onboard lithium battery charging functionality and voltage detection provide real-time insights into device power levels.

Specification

Operating Voltage: 3.3V
Type-C Input Voltage: 5V DC
VIN Input Voltage: 5V DC
Max Charging Current: 0.5A
Sleep Current: 37μA (Deep Sleep Mode, Battery-Powered)
Operating Temperature: -10~60℃

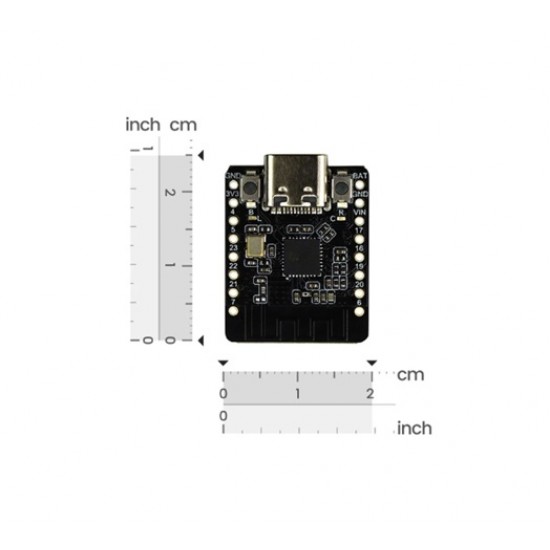

Dimension: 25x20.5mm/0.98x0.81”
Hardware Information

Processor: RISC-V single-core processor
Main Frequency: 160 MHz
SRAM: 512KB
ROM: 320KB
Flash: 4MB
RTC SRAM: 16KB
USB: USB 2.0 CDC

WIFI

WIFI Protocol: IEEE 802.11b/g/n
IEEE 802.11ax (20 MHz-only non-AP mode)
Bandwidth: Support 20 MHz and 40 MHz at 2.4 GHz band
WIFI Mode: Station, SoftAP, SoftAP+Station combined mode
WIFI Frequency: 2.4GHz
Frame Aggregation: TX/RX A-MPDU, TX/RX A-MSDU

Bluetooth

Bluetooth Protocol: Bluetooth 5, Bluetooth mesh
Bluetooth Frequency: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

IEEE 802.15.4

Compatible with IEEE 802.15.4-2015 protocol
Frequency band: 2.4GHz
Data rate: 250Kbps
Supports Thread 1.3 and Zigbee 3.0

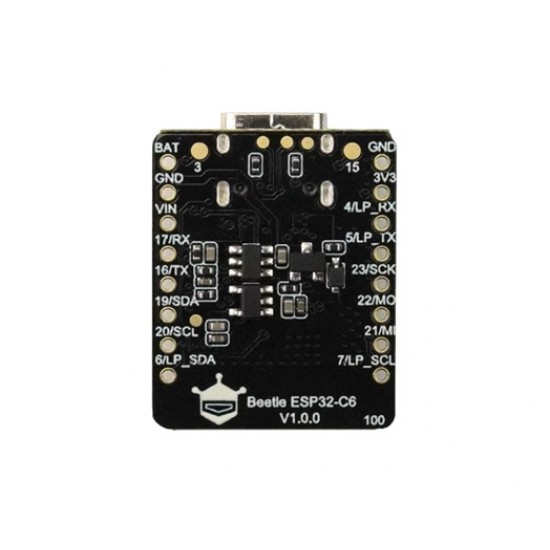

Ports

Digital I/O x13
LED PWM 6 Channel
SPI x1
UART x3 (LP UART x1)
I2C x2 (LP I2C x1)
I2S x1
IR Transceiver: transmit channel x2, receive channel x2
1 × 12-bit SAR ADC, 7 Channel
DMA Controller: transmit channel x3, receive channel x3

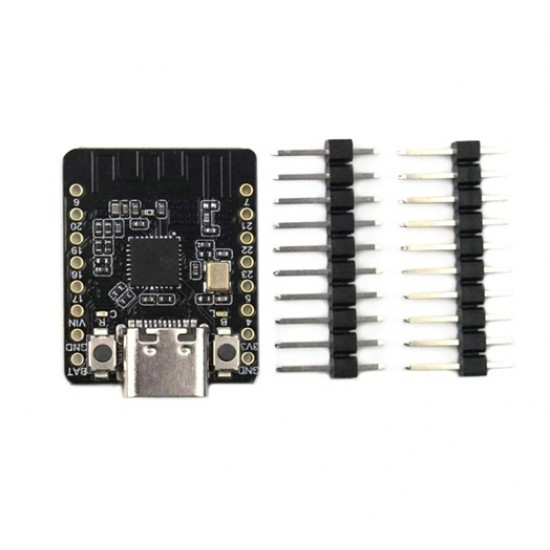

Package Includes

Beetle ESP32 C6 Mini Development Board
10pin-2.54mm Pin Header
