Name: DF ROBOT FireBeetle 2 ESP32-C6 IoT Development Board for Smart Home Control System 4MB Flash (MPN: DFR1075)
Brand: DF ROBOT
SKU: 08134
Price: 710.00 INR
Availability: OutOfStock

DF ROBOT FireBeetle 2 ESP32-C6 IoT Development Board for Smart Home Control System 4MB Flash (MPN: DFR1075)

DF ROBOT

DF ROBOT FireBeetle 2 ESP32-C6 IoT Development Board for Smart Home Control System 4MB Flash (MPN: DFR1075)

Based on 0 reviews. - Write a review

₹710.00

₹601.69 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 6
B2B GST Credit Available

Price in reward points: 601

Stock: 0 in Stock
SKU: 08134
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

DF ROBOT FireBeetle 2 ESP32-C6 IoT Development Board for Smart Home Control System

The FireBeetle 2 ESP32-C6 is a versatile low-power IoT controller board designed for smart home automation, control and monitoring system. It features a 160MHz RISC-V 32-bit processor, providing excellent energy efficiency and flexibility for Internet of Things (IoT) projects. The board supports multiple communication protocols, including Wi-Fi 6, Bluetooth 5, Zigbee 3.0, Thread 1.3, and Matter, enabling versatile wireless connectivity.

User Manual / Datasheet / Example Codes Etc.

Features

Seamless Connectivity

Multi-Protocol Support: Wi-Fi 6 (up to 9.6 Gbps theoretical speed), Bluetooth 5 (2 Mbps max), Zigbee, Thread, and BLE.
Ultra-Low Power Efficiency: 36µA deep-sleep current (battery-powered).

Visual Development & Monitoring

Onboard GDI Interface: Direct plug-and-play compatibility with displays for real-time data visualization.
Solar Charging: Integrated support for 5V solar panels (max 0.5A charging current).
Battery Health Tracking: Built-in battery-level detection for proactive power management.

High-Performance Hardware

RISC-V Core Processor: 160 MHz single-core with 512KB SRAM, 4MB Flash, and 16KB RTC SRAM.
Expanded I/O: 19 digital I/O ports, 6-channel PWM, SPI, UART, I2C, I2S, and IR transceiver support.
Precision Sensing: 12-bit SAR ADC (7 channels) with DMA control.

Specifications

Operating Voltage: 3.3V
Type-C Input Voltage: 5V DC
VCC Input Voltage: 5V DC or 5V Solar Panel
Max Charging Current: 0.5A
Sleep Current (Deep Sleep Mode, Battery-Powered): 36µA
Operating Temperature: -10~60℃

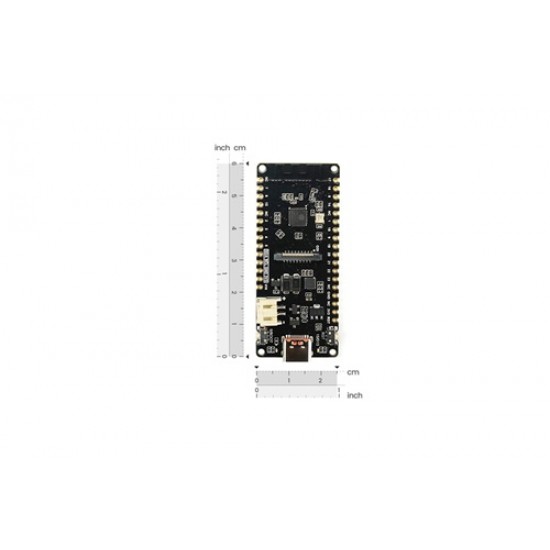

Dimension: 25.4x60mm/1x2.36”
Hardware Information

Processor: RISC-V single-core processor
Main Frequency: 160 MHz
SRAM: 512KB
ROM: 320KB
Flash: 4MB
RTC SRAM: 16KB
USB: USB 2.0 CDC

WIFI

WIFI Protocol: IEEE 802.11b/g/n
IEEE 802.11ax (20 MHz-only non-AP mode)
Bandwidth: Support 20 MHz and 40 MHz at 2.4 GHz band
WIFI Mode: Station, SoftAP, SoftAP+Station combined mode
WIFI Frequency: 2.4GHz
Frame Aggregation: TX/RX A-MPDU, TX/RX A-MSDU

Bluetooth

Bluetooth Protocol: Bluetooth 5, Bluetooth mesh
Bluetooth Frequency: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

IEEE 802.15.4

Compatible with IEEE 802.15.4-2015 protocol
Frequency band: 2.4GHz
Data rate: 250Kbps
Supports Thread 1.3 and Zigbee 3.0

Ports

Digital I/O x19
LED PWM 6 Channel
SPI x1
UART x3 (LP UART x1)
I2C x2 (LP I2C x1)
I2S x1
IR Transceiver: transmit channel x2, receive channel x2
1 × 12-bit SAR ADC, 7 Channel
DMA Controller: transmit channel x3, receive channel x3

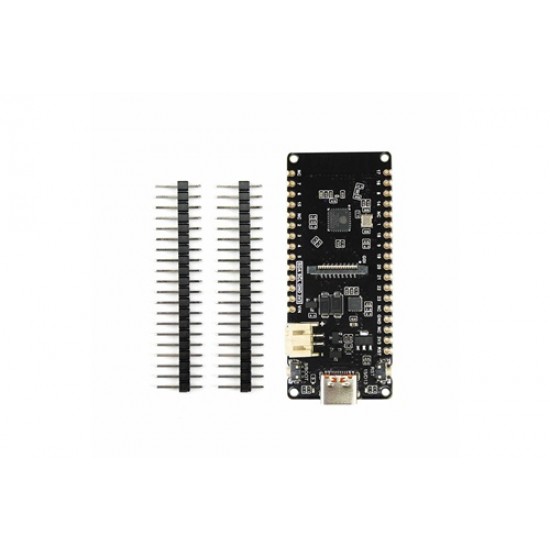

Package Includes

FireBeetle 2 Board ESP32 C6 Microcontroller
20pin-2.54mm Pin Header
