DF ROBOT Multi Function Expansion Board for UNIHIKER M10 / K10 & micro:bit (Power & Motion) (MPN: DFR1216-1)
₹​2,149.00
₹​1,821.19 + 18% GST
All Inclusive, Shipping Calculated at Checkout

B2B GST Credit Available
Price in reward points: 1821

DF ROBOT Multi Function Expansion Board for UNIHIKER M10 / K10 & micro:bit (Power & Motion)

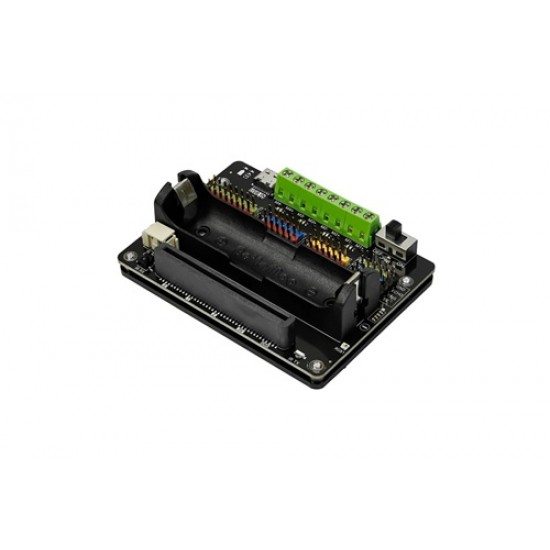

The Multi-function Expansion Board for UNIHIKER is an all-in-one module engineered to unlock the full potential of UNIHIKER (K10 / M10) and micro:bit development boards. By seamlessly integrating with the host controller, it addresses common limitations through three core enhancements: comprehensive I/O expansion, a self-contained 18650 mobile power system, and a high-current motor and servo drive unit. This board enables the simultaneous control of up to 4 DC motors and 6 servos while providing a rich array of digital, analog, and communication ports. It is the definitive solution for developing complex mobile robots, portable interactive devices, and sophisticated maker projects that demand greater connectivity and power autonomy.


User Manual / Datasheet / Example Codes Etc.


Specifications

  • Operating voltage: 3.3V DC
  • USB-C interface input voltage: 5V DC
  • GPIO extension:
    • 3.3V GPIO from main board edge connector x8
    • 3.3V Digital/Analog/OneWire GPIO x6
    • Servo interface (powered by battery) x6
    • 3.3V I2C x3
    • 5V I2C x1
    • 5V Ultrasonic Sensor (Trig-Echo) x1
  • Motor Driver: DC Motor Terminal Block x4
  • HY2.0 4-pin interface x1 (power for UNIHIKER M10)
  • Battery Holder: 3.7V 18650
  • On-board components:
  • RGB LED (WS2812) x2
  • IR emitter x1
  • IR receiver x1

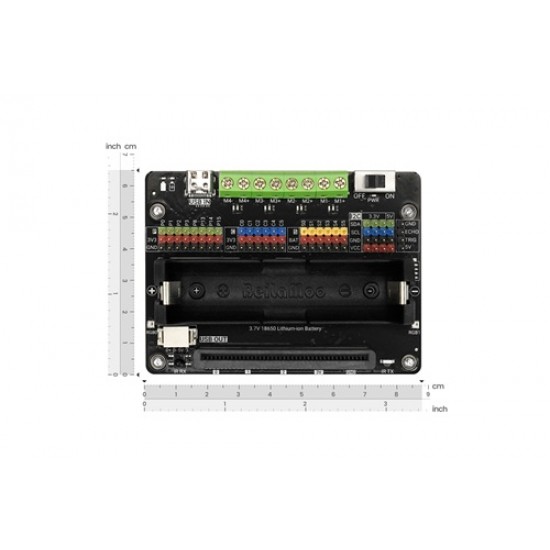

  • Size: 65*88mm
  • Weight: 200g


Package Includes

  • Multi-function Expansion Board for UNIHIKER M10
  • Type-C to HY2.0-4P Cable
