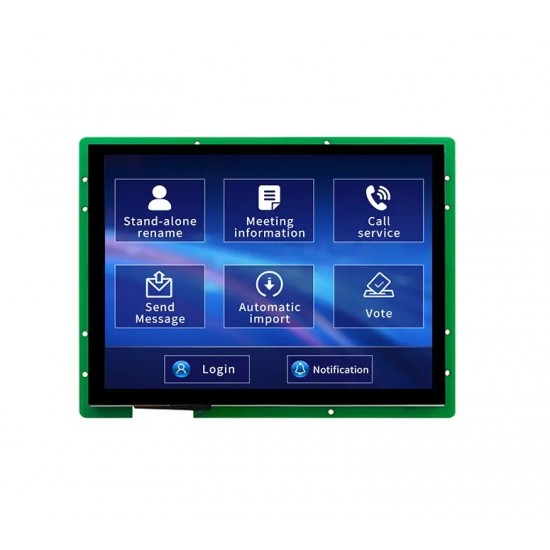

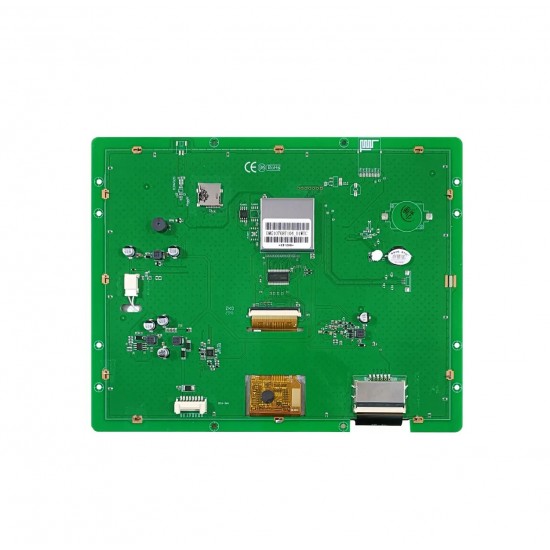

DWIN 10.4inch HMI LCD, Capacitive Touch, IPS TFT 1024x768 250nits LCD Display_DMG10768T104_01WTC (Industrial Grade)
The DWIN 10.4-inch HMI LCD Display is a high-performance, industrial-grade human–machine interface designed for reliable operation in demanding environments. Featuring a 1024×768 resolution IPS TFT panel, this display delivers sharp visuals, wide viewing angles, and accurate color reproduction, making it ideal for control panels, automation systems, and industrial monitoring applications.
Specifications
- LCD Type: IPS, TFT LCD
- Viewing Angle: Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
- Resolution: 1024×768 pixels (0°/90°/180°/270°)
- Color: 24-bit 8R8G8B
- Active Area (A.A.): 211.20mm (W)×158.40mm (H)
- Backlight Mode: LED
- Backlight Service Life: >30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
- Brightness: DMG10768T104_01WTC: 250nit
- Brightness Control: 0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
- Touch Specs
- Type: Capacitive touch panel
- Structure: G+G structure with tempered glass surface and hardness ≥ 6H
- Light Transmittance: >85%
- Electrical specifications
- Rated Power: <10W
- Operating Voltage: 9~36V, typical value of 12V
- Operating Current: 510mA VCC=12V, max backlight 170mA VCC=12V, backlight off
- Recommended power supply: 12V 1A DC
- Operating environment
- Operating Temperature: -20℃~70℃ (12V @ 60% RH)
- Storage Temperature: -30℃~80℃
- Conformal Coating: Yes
- Operating Humidity: 10%~90%RH, typical value of 60% RH
Package Includes
- 1x DWIN 10.4inch HMI LCD, Capacitive Touch, IPS TFT 1024x768 250nits LCD Display_DMG10768T104_01WTC (Industrial Grade)
