Name: DF ROBOT FireBeetle 2 ESP32-E IoT Microcontroller with Header (Supports Wi-Fi & Bluetooth) 4MB Flash Memory (MPN: DFR0654-F)
Brand: DF ROBOT
SKU: 08132
Price: 1319.00 INR
Availability: OutOfStock

DF ROBOT FireBeetle 2 ESP32-E IoT Microcontroller with Header (Supports Wi-Fi & Bluetooth) 4MB Flash Memory (MPN: DFR0654-F)

DF ROBOT

DF ROBOT FireBeetle 2 ESP32-E IoT Microcontroller with Header (Supports Wi-Fi & Bluetooth) 4MB Flash Memory (MPN: DFR0654-F)

Based on 0 reviews. - Write a review

₹1,319.00

₹1,117.80 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 11
B2B GST Credit Available

Price in reward points: 1117

Stock: 0 in Stock
SKU: 08132
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

DF ROBOT FireBeetle 2 ESP32-E IoT Microcontroller with Header (Supports Wi-Fi & Bluetooth) 4MB Flash Memory (MPN: DFR0654-F)

FireBeetle 2 ESP32-E, specially designed for IoT, is an ESP-WROOM-32E-based main controller board with dual-core chips.

DFR0654-F supports WiFi and Bluetooth dual-mode communication and features a small size, ultra-low power consumption, onboard charging circuit, and easy-to-use interface, which can be conveniently used for smart home IoT, industrial IoT applications, wearable devices, and so on. You can easily create your own IoT smart home system when connecting it with an IoT platform like IFTTT.

FireBeetle 2 ESP32-E supports Arduino programming and will support Scratch graphical programming and MicroPython programming very soon. We provide you with detailed online tutorials and application cases, and there are thousands of sensors with welding-free Gravity interfaces and actuators to help you get started easily. Besides, the stamp hole design makes it able to be easily embedded in your PCB, greatly saving your costs and time to build and test a prototype.

User Manual / Datasheet / Example Codes Etc.

Features

ESP32 dual-core low-power main controller with power consumption as low as 2mA
WiFi+Bluetooth 4.0 Dual-mode Module
GDI Display Port, easy to connect
Onboard Charging Circuit and PH2.0 lithium Battery Interface

Specification

Power Parameters

Input Voltage
USB-C Port: 5V DC
PH2.0 Connector: 3.7~4.2V Li-ion
VCC Pin: 5V DC

MCU Parameters

Processor: Xtensa Dual-Core 32-bit LX6 Microprocessor
Clock Speed: 240 MHz
SRAM: 520 KB
ROM: 448 KB
Flash Memory: 4 MB

Wireless Parameters - Wi-Fi Protocol

IEEE 802.11 b/g/n (Data rate up to 150 Mbps in 802.11n mode)
Supports A-MPDU and A-MSDU aggregation
Supports 0.4 μs guard interval
Operating Channel Center Frequency Range: 2412~2484 MHz
Bluetooth Protocol:
Bluetooth V4.2 BR/EDR and Bluetooth LE standards
Bluetooth CVSD and SBC audio
Bluetooth Frequency Range: 2402~2480 MHz

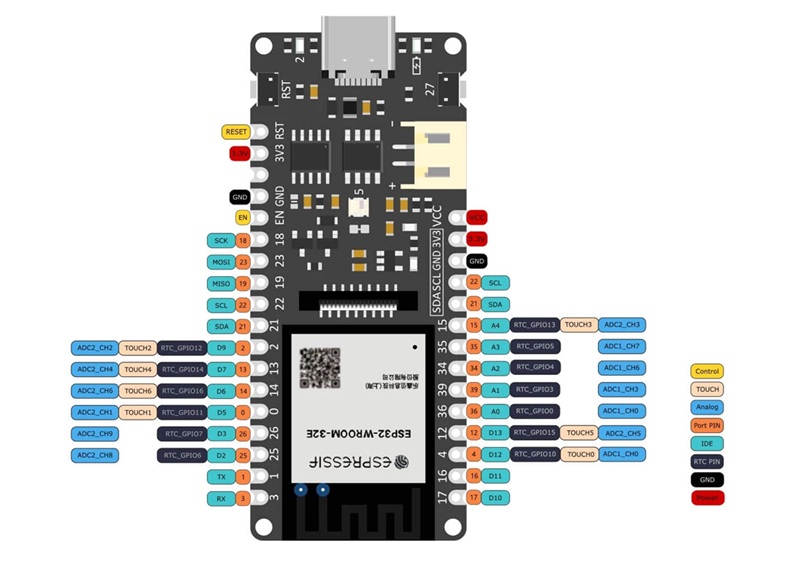

Peripheral Parameters

Digital Pins × 18: IO0, IO1, IO2, IO3, IO4, IO12, IO13, IO14, IO15, IO16, IO17, IO18, IO19, IO21, IO22, IO23, IO25, IO26
Analog Pins × 11: IO0, IO2, IO4, IO12, IO13, IO14, IO15, IO25, IO26, I34, I35
UART Interfaces: × 2
SPI Interface: × 1
I2C Interface: × 1
I2S Interface: × 1
DAC Interfaces: × 2
Touch Interfaces: × 7
LED PWM Channels: × 16
RGB_LED: WS2812
Display Interface: GDI

Other Parameters

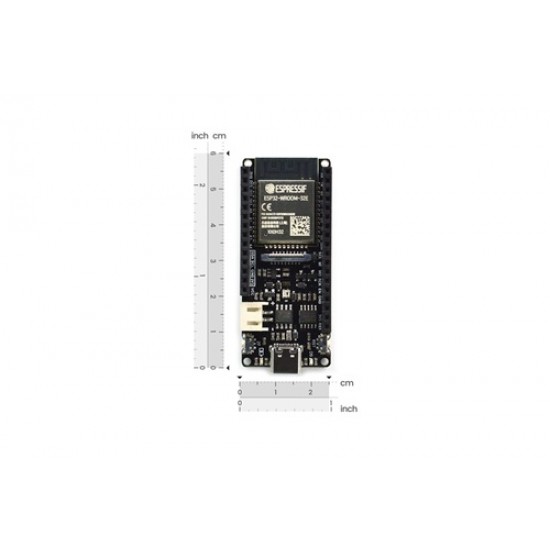

Module Size: 25.4mm × 60mm
Mounting hole size: hole diameter 2.0mm
Weight: 23g

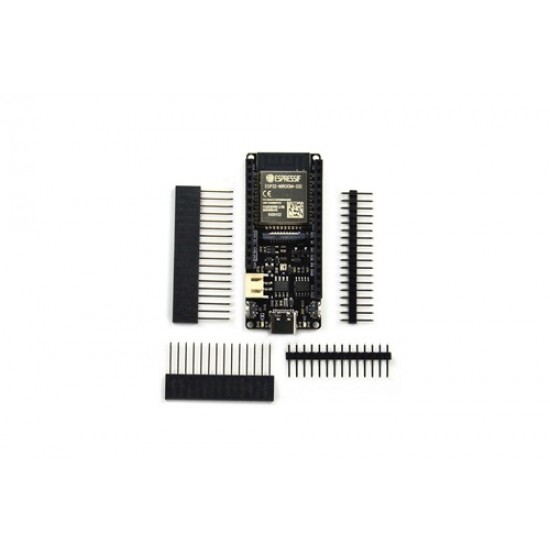

Package Includes

FireBeetle 2 Board ESP32-E with Header
18pin-2.54mm Pitch Pin
18pin-2.54mm Pitch Pin Female
14pin-2.54mm Pitch Pin
14pin-2.54mm Pitch Pin Female
