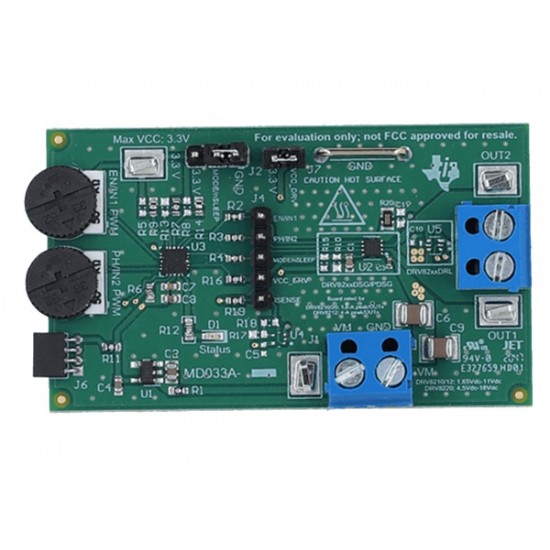

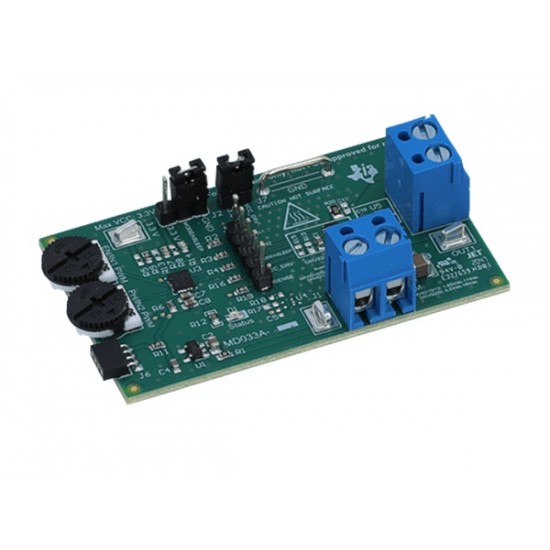

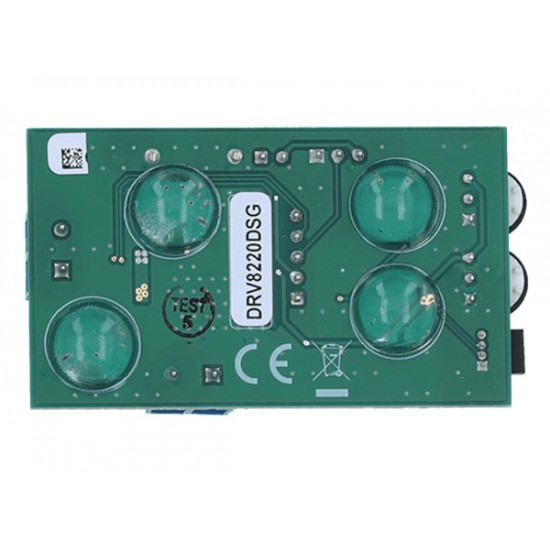

Texas Instruments DRV8220EVM H-bridge motor driver evaluation Board with low power sleep mode

The Texas Instruments DRV8220EVM is an evaluation module designed to demonstrate the performance and functionality of the DRV8220 brushed DC motor driver IC. This compact H-bridge motor driver evaluation board supports efficient bidirectional control of brushed DC motors and solenoids while offering low-power operation with an integrated sleep mode for energy-sensitive applications.

The DRV8220EVM operates across a wide supply voltage range and features integrated MOSFETs for simplified motor control design. It provides forward, reverse, brake, and coast control modes, making it suitable for robotics, battery-powered devices, smart locks, toys, industrial automation, and portable motor control applications. The board includes easy-to-access control pins, onboard protection circuitry, and a user-friendly layout for rapid prototyping and performance evaluation.


Datasheet


Features

  • Based on Texas Instruments DRV8220 brushed DC motor driver IC
  • H-bridge driver for brushed DC motors and solenoids
  • Wide operating supply voltage range
  • Low-power sleep mode for battery-operated applications
  • Supports forward, reverse, brake, and coast motor control
  • Integrated low RDS(on) MOSFETs
  • Overcurrent protection (OCP)
  • Thermal shutdown protection (TSD)
  • Undervoltage lockout (UVLO)
  • Compact evaluation module design
  • Easy access to control and power pins
  • Suitable for rapid prototyping and motor driver evaluation


Applications

  • Robotics projects
  • Smart locks and smart home devices
  • Portable and battery-powered equipment
  • Industrial automation systems
  • Small motor control applications
  • Toys and consumer electronics
  • Solenoid driving applications


Package Includes

  • 1x DRV8220EVM H-bridge motor driver evaluation Board with low power sleep mode
