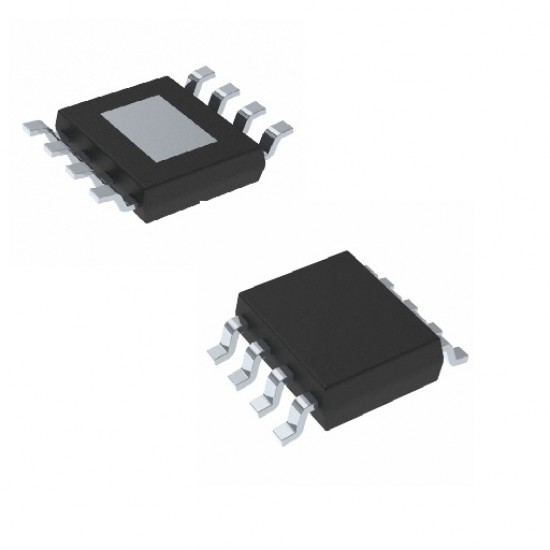

Texas Instruments DRV8870DDAR 50V 3.6A Brushed DC Motor Driver H-Bridge IC with Current Regulation HSOP-8-EP

Texas Instruments DRV8870DDAR 50V 3.6A Brushed DC Motor Driver H-Bridge IC with Current Regulation HSOP-8-EP
New
Texas Instruments
Texas Instruments DRV8870DDAR 50V 3.6A Brushed DC Motor Driver H-Bridge IC with Current Regulation HSOP-8-EP
Based on 0 reviews. - Write a review
₹​61.00
₹​51.69 + 18% GST
All Inclusive, Shipping Calculated at Checkout

B2B GST Credit Available
Price in reward points: 51
Buy Now NOTIFY WHEN AVAILABLE
Plan to Buy Later ? Add to Wish List

Texas Instruments DRV8870DDAR 50V 3.6A Brushed DC Motor Driver H-Bridge IC with Current Regulation HSOP-8-EP


Datasheet


The Texas Instruments DRV8870DDAR is a high-performance brushed DC motor driver IC designed to simplify motor control in industrial, consumer, and embedded applications. Featuring an integrated H-Bridge with low RDS(on) MOSFETs, it supports motor supply voltages up to 50V and delivers 3.6A peak output current for reliable bidirectional motor operation. The device incorporates integrated current regulation, enabling precise current limiting using an external sense resistor, which helps protect motors during startup and stall conditions while reducing overall system power requirements. It also supports PWM speed control, low-power sleep mode, and comprehensive protection features including overcurrent protection (OCP), thermal shutdown (TSD), undervoltage lockout (UVLO), and automatic fault recovery. Housed in a compact 8-pin HSOP (PowerPAD™) package, the DRV8870DDAR is an excellent choice for robotics, printers, industrial automation, pumps, valves, and other brushed DC motor applications.
