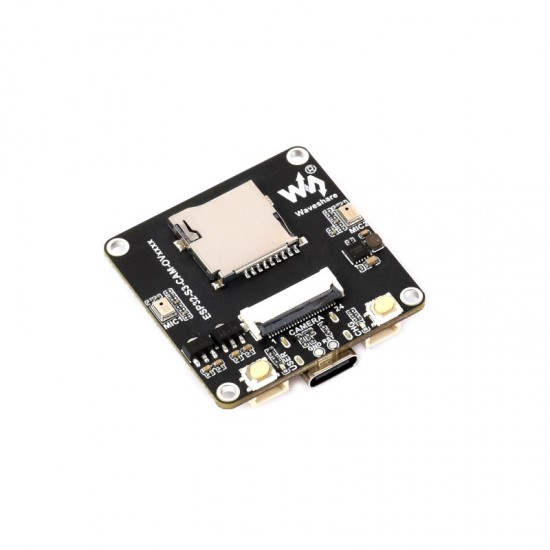

Name: ESP32-S3 AIoT Camera Development Board, Integrated Audio Input And Output Module, Supports Connecting External Display, Image Capture & Recognition And AI Speech Interaction Support (With OV5640 Camera)
Brand: WaveShare Electronics
SKU: 33699
Price: 2139.00 INR
Availability: InStock

ESP32-S3 AIoT Camera Development Board, Integrated Audio Input And Output Module, Supports Connecting External Display, Image Capture & Recognition And AI Speech Interaction Support (With OV5640 Camera)

WaveShare Electronics

ESP32-S3 AIoT Camera Development Board, Integrated Audio Input And Output Module, Supports Connecting External Display, Image Capture & Recognition And AI Speech Interaction Support (With OV5640 Camera)

Based on 0 reviews. - Write a review

₹2,139.00

₹1,812.71 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 18
B2B GST Credit Available

Price in reward points: 1812

Stock: 10 in Stock
SKU: 33699
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

ESP32-S3 AIoT Camera Development Board, Integrated Audio Input And Output Module, Supports Connecting External Display, Image Capture & Recognition And AI Speech Interaction Support (With OV5640 Camera)

This product is an AI development board based on the ESP32-S3, integrating camera interface (DVP), SPI / QSPI display interface, and audio capture and playback functions. It combines low cost, high performance, and low power consumption to meet the development needs of diverse intelligent terminal applications. It allows access to online large model platforms such as Doubao and DeepSeek to support more AI application scenarios, enabling human-machine interaction functions such as voice interaction and question answering recognition. Simultaneously provides Edge Impulse object detection demo, supporting real-time and multi-object detection, making it suitable for rapid development of products such as AI speech interaction, edge vision detection, HMI display applications, and smart cameras.

User Manual / Datasheet / Example Codes Etc.

Features

Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Built-in 512KB Static RAM and 384KB ROM, with onboard 8MB PSRAM and 16MB Flash
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication with outstanding RF performance
Dual-microphone array with noise reduction and echo cancellation for high-quality speech interaction
Expansion & Interfaces
SPI / QSPI LCD display interface
24PIN DVP camera interface
Adapting USB, I2C, and UART interfaces
Onboard Lithium Batt charging circuit, supports connecting 3.7V Lithium Batt for power supply
Reserved two buttons for custom functions
Highly integrated design with rich interfaces for rapid prototyping and deployment of AIoT smart terminal applications.

Specifications

OV5640 camera: 2592 × 1944
DVP: RGB565/YUV/YCbCr422
1/4inch: 4.1mm
2.8: D: 68°/ H: 55°/ V: 42°

Package Includes

ESP32-S3-CAM baseboard x1
OV5640 camera x1
1217 8Ω 2W speaker x1

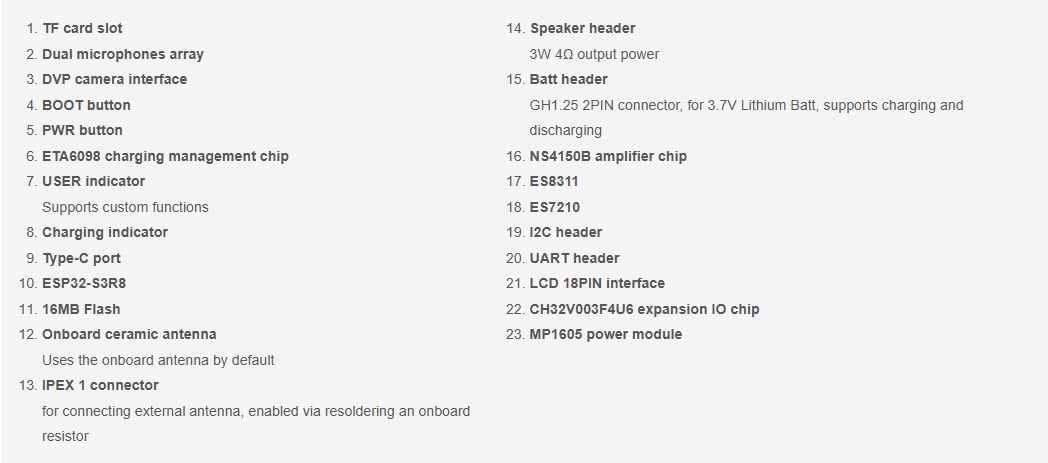

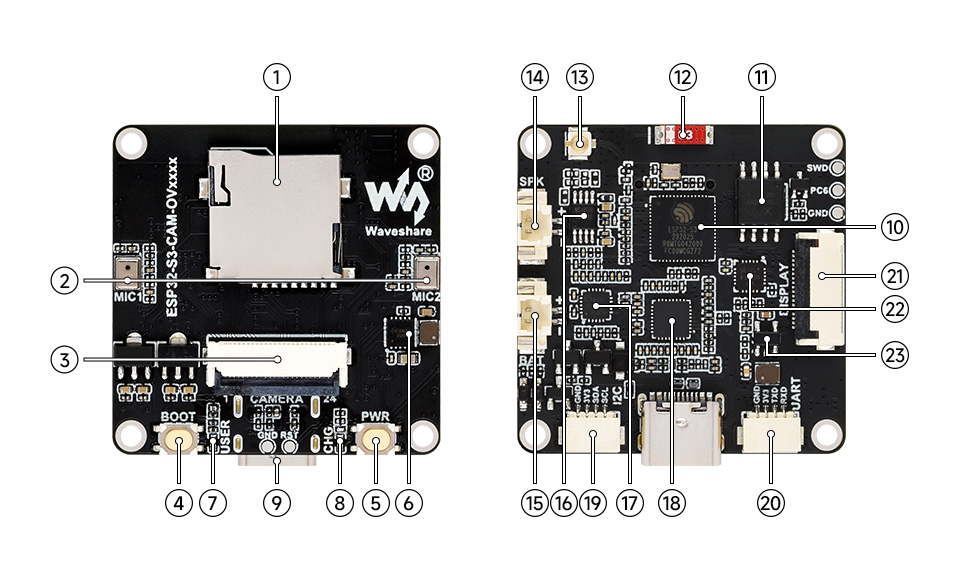

What's On Board

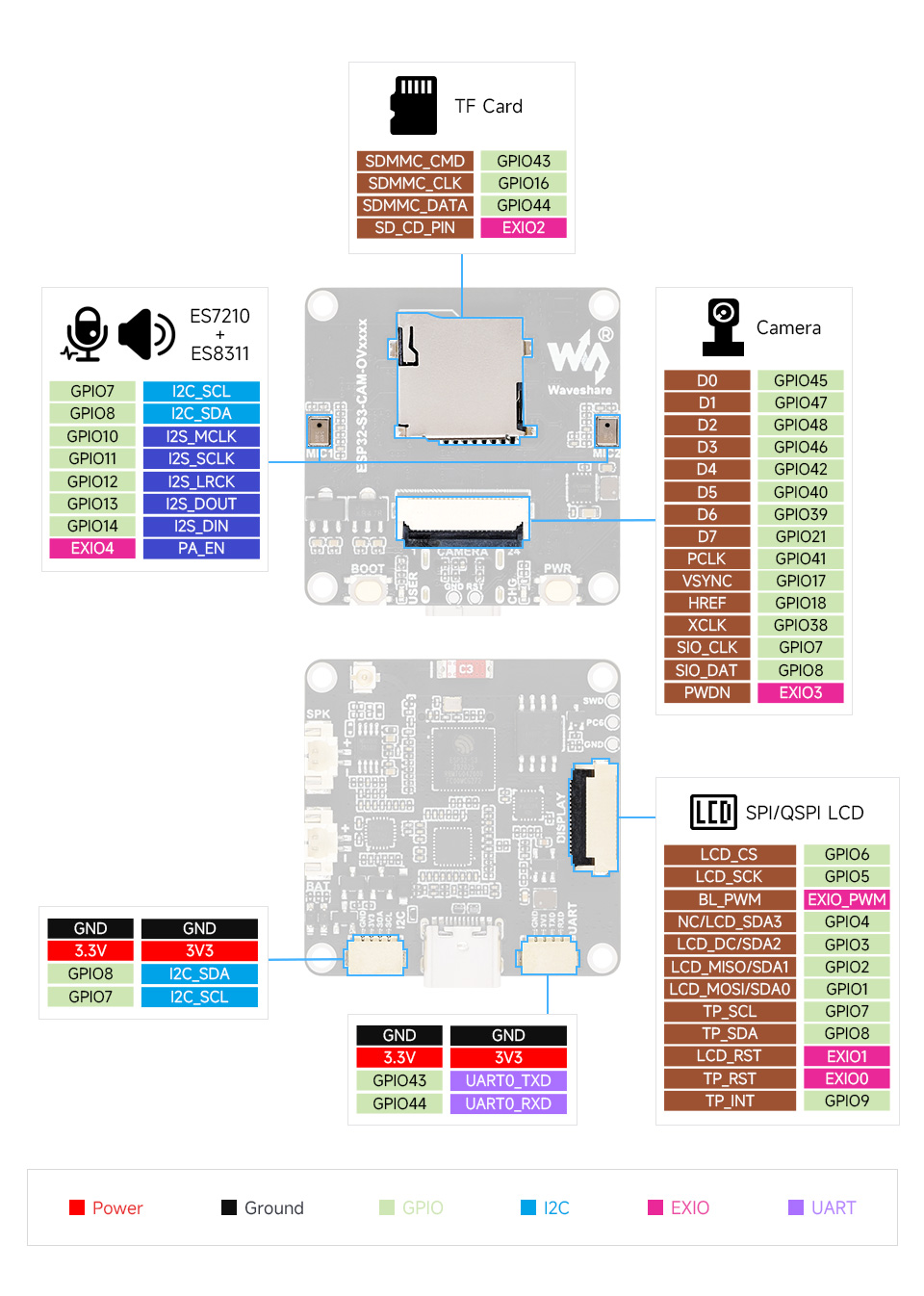

Interface Definition

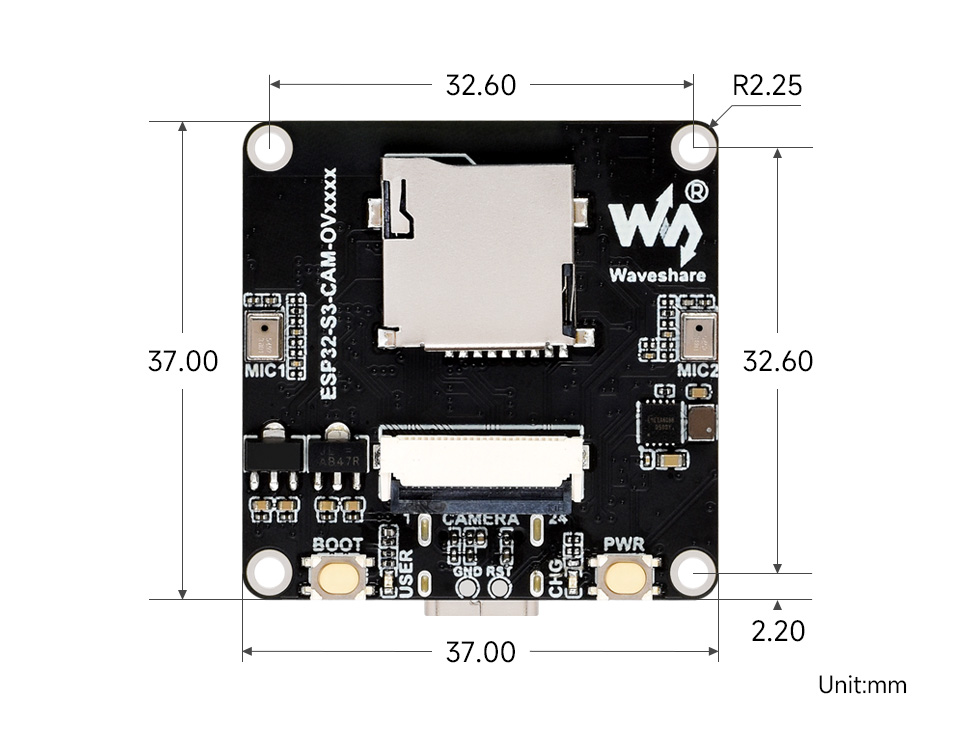

Dimensions
