13.3inch Full Color E-Paper Display With ESP32-S3 E-Paper Driver Board, Adopts E Ink Spectra 6 (E6) Technology, Onboard Audio Codec Chip, WiFi & Bluetooth Support

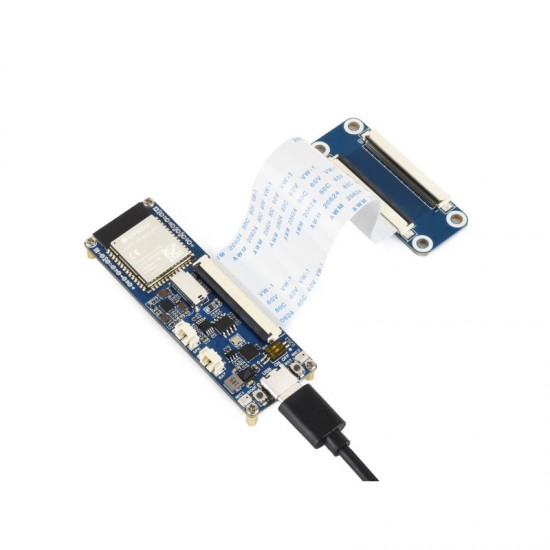

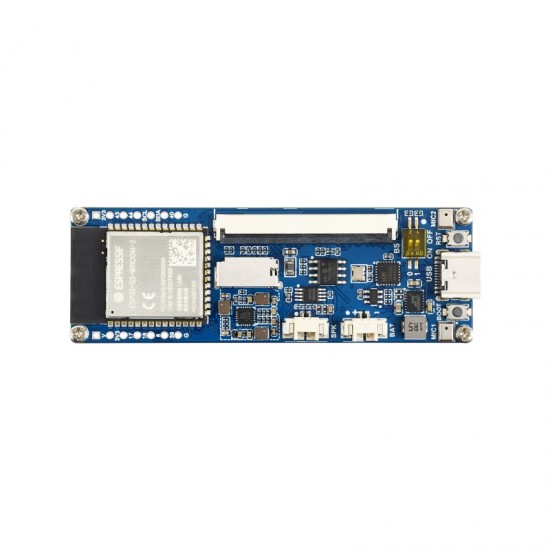

This ESP32-S3 E-Paper driver board is a compact-size microcontroller development board with 60PIN e-paper display connector. Adopts ESP32-S3-WROOM-2-N32R16V module, which is equipped with Xtensa 32-bit LX7 dual-core processor with 240MHz running frequency, built-in 512KB Static RAM (TCM), 16MB PSRAM and 32MB Flash. Supports Wi-Fi and BLE dual-mode communication, onboard TF card slot, low power audio codec, ETA6098 high-efficiency Lithium Batt recharge manager and MX1.25 Lithium Batt header. Onboard CH343 and CH334 USB HUB chips, supports USB and UART development at the same time via a Type-C port. Adapting multiple GPIO pins for easy expansion with a variety of peripheral devices.

You can choose Arduino-IDE, ESP-IDF, or other development environments in software so that you can easily and quickly get started and apply it to the product.

User Manual / Datasheet / Example Codes Etc.

Features

Driver board

Adopts ESP32-S3-WROOM-2-N32R16V module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 512KB Static RAM, 384KB ROM, 16MB PSRAM, 32MB Flash memory
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
Type-C connector, easier to use
Onboard CH343 and CH334 USB HUB chips, supports USB and UART development at the same time via a Type-C port

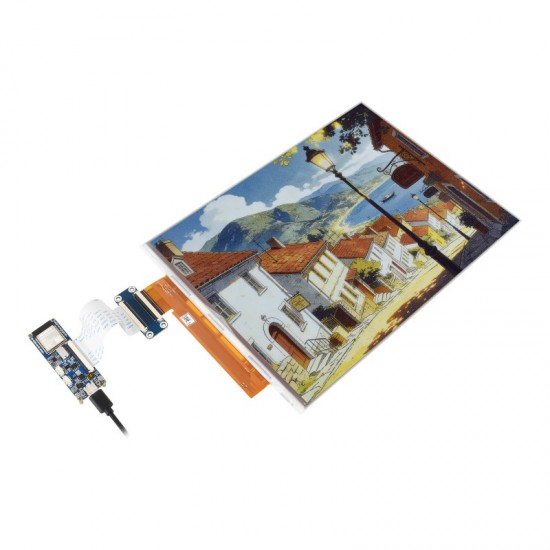

Onboard 13.3inch E6 e-paper display connector, supporting direct connection to a 13.3inch E6 full color e-paper display
Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications
Onboard Lithium Batt recharge manager ETA6098 and MX1.25 lithium Batt header
Onboard TF card slot for external TF card storage of pictures or files

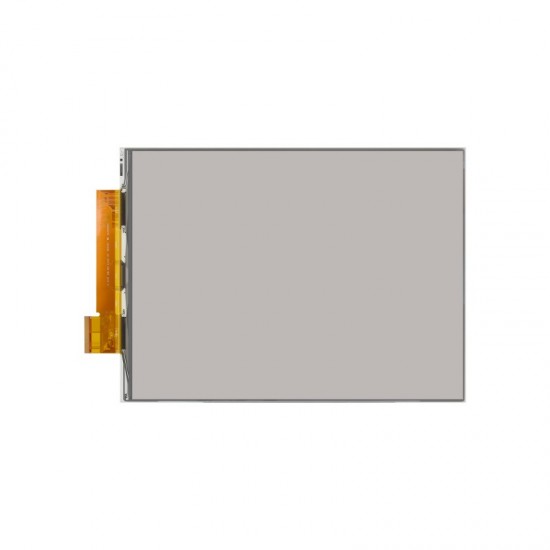

E-paper display

Adopts E Ink Spectra 6 (E6) technology, featuring high contrast and high color saturation
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing

Specifications

operating voltage: 3.3V
interface: 3-wire SPI, 4-wire SPI
outline dimensions: 284.70 × 208.80 × 0.85mm
display size: 270.40 × 202.80mm
DOT PITCH: 0.169 × 0.169mm
RESOLUTION: 1600 × 1200 pixels
display color: E6 full color (E Ink Spectra 6)
grey scale: 2
full refresh time: 19s
total refresh power: <0.5W
standby power: <1mW
viewing angle: >170°

Package Includes

1x ESP32-S3-ePaper-13.3E6 e-Paper driver board
1x 13.3inch e-Paper (E)

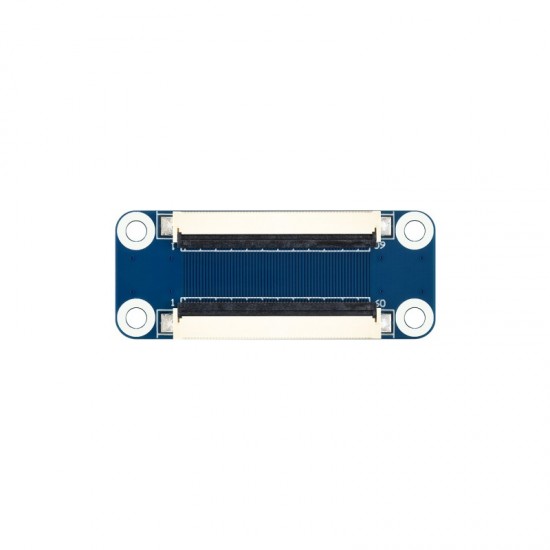

1x e-Paper Adapter (B)
1x 8Ω 1W speaker
1x60PIN FPC cable ~10cm

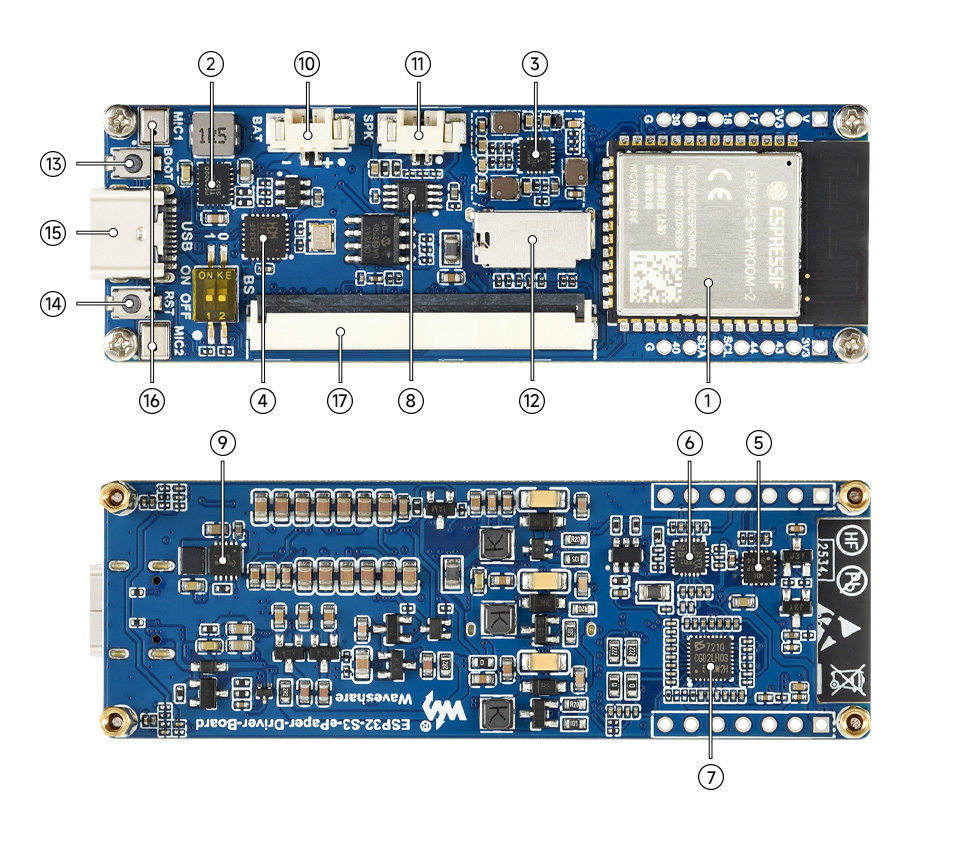

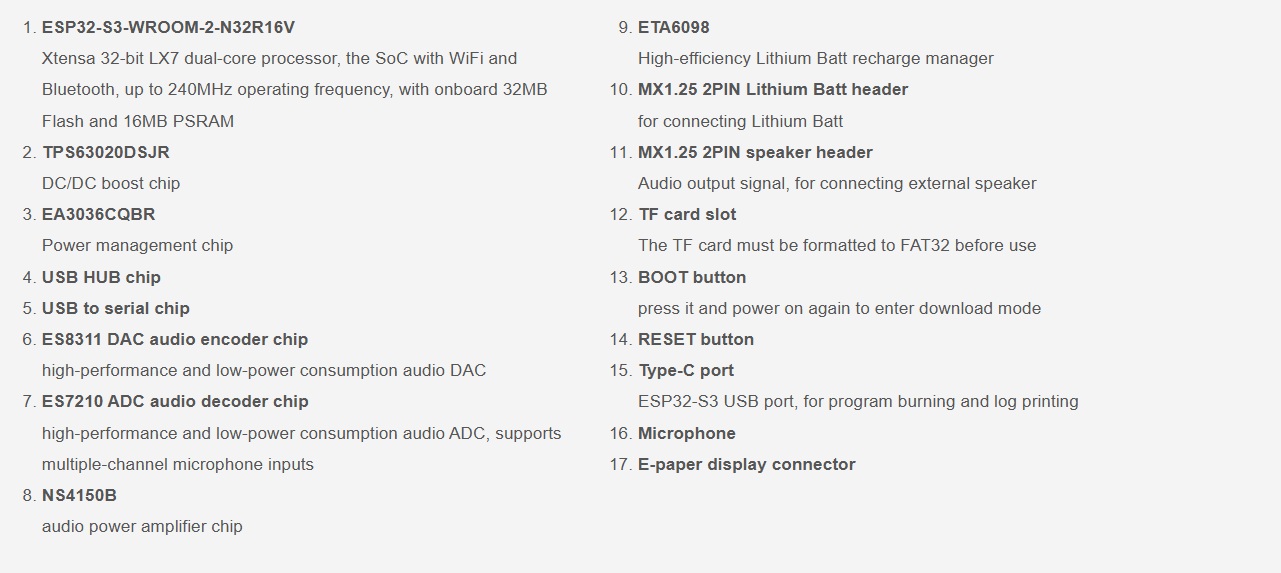

What's On Board

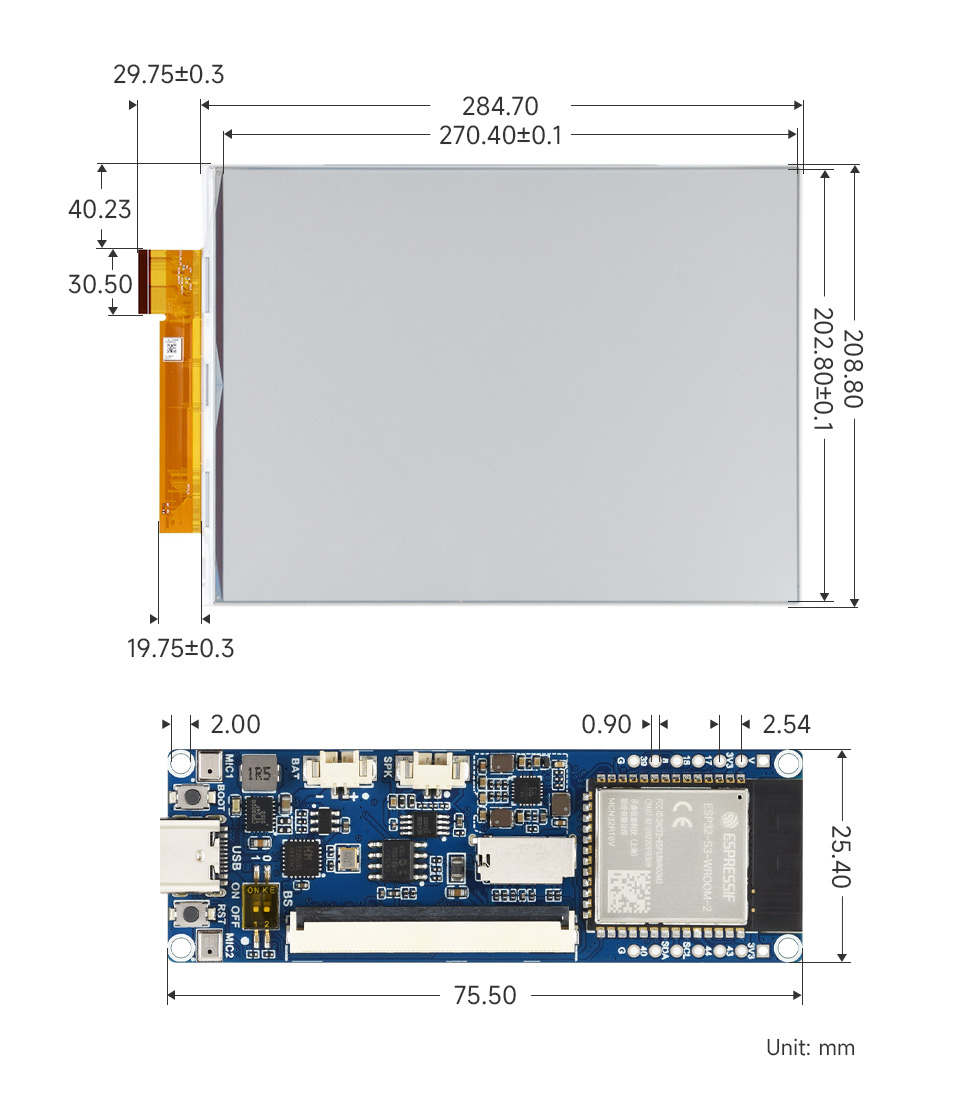

Dimensions
