Waveshare ESP32-S3-LR1121-OLED-1.54 LoRa Development Board, HF 868MHz Frequency Band Version, LR1121 Third-Generation RF Chip, Sub-GHz and 2.4GHz Support, Voice Interaction [3.7V Lithium battery Included]

This high-performance, highly integrated LoRa wireless communication development board designed by Waveshare, features a dual-band LoRa RF module, audio codec, and power management solution, providing a versatile platform for long-range wireless communication and voice interaction development.


User Manual / Datasheet / Example Codes Etc.


Features

  • Equipped with ESP32-S3 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4 GHz Wi-Fi and Bluetooth 5, equipped with a mini WiFi antenna, onboard 8MB PSRAM and 16MB Flash
  • Onboard Core1121 dual-band LoRa module supporting Sub-GHz and 2.4GHz bands, LoRa, (G)FSK, and LR-FHSS modulation, with an integrated AES-128 encryption engine and support for analog walkie-talkie signal reception and decoding

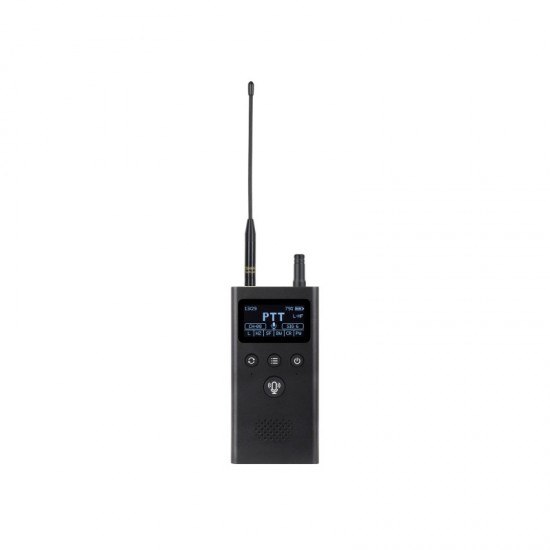

  • Onboard 1.54inch OLED display clearly shows the user interface and device status
  • Integrated audio codec and power amplifier chip with dual-microphone array and echo cancellation, suitable for applications such as speech recognition and wake-word detection
  • Onboard RTC chip and fuel-gauge chip for accurate timekeeping and Batt status monitoring
  • Onboard 4 × programmable buttons for custom functions and device control
  • Adapting 2 × 6PIN SH1.0 connectors for user customization and DIY projects
  • Onboard TF card slot for data storage and expanded capacity
  • Type-C port, improving device compatibility, easier to use


Specifications

  • Display Parameters
    • Resolution: 128 × 64 pixels
    • Operating Voltage: 3.3V / 5V
    • Communication Interface: I2C
    • Display Panel: OLED
    • Pixel Size: 0.25 × 0.25 mm
    • Driver IC: SSD1309
  • RF Parameters
    • RF Chip: LR1121
    • Operating Voltage: 3.3V
    • Communication Interface: SPI
    • Modulation: LoRa, (G)FSK, LR-FHSS

Package Includes

  • ESP32-S3-LR1121-OLED-1.54-HF x1

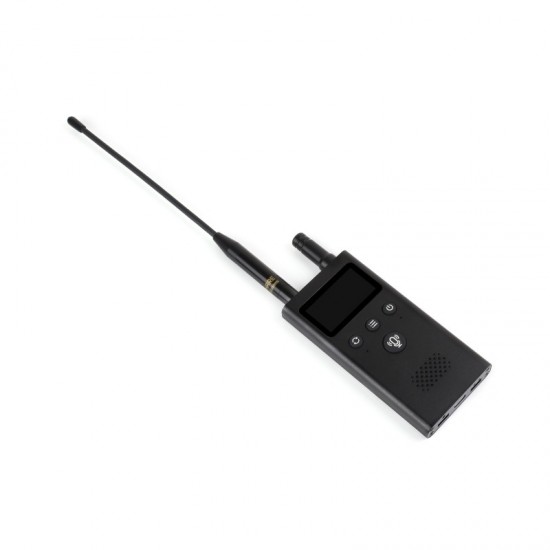

  • Whip antenna with SMA male connector x1
  • Mini WiFi Antenna x1
  • 3.7V Lithium Batt x1

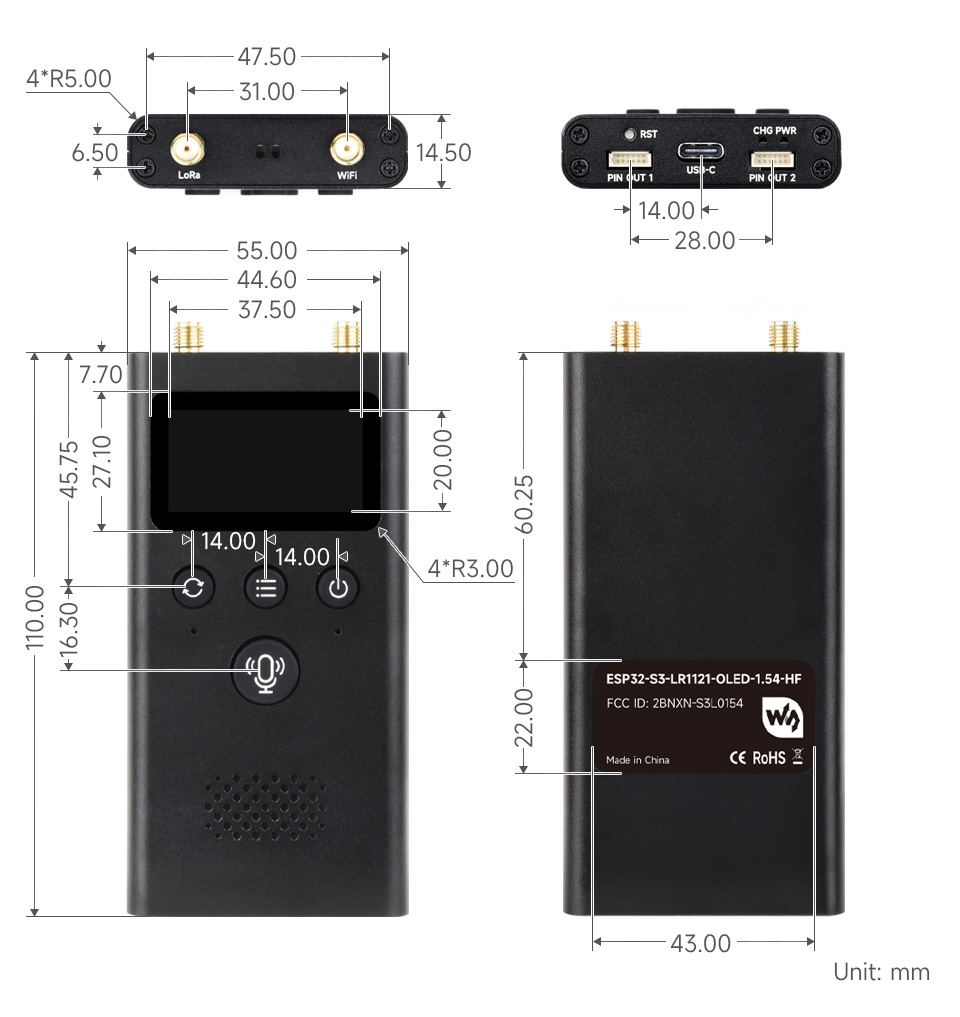

Dimensions
