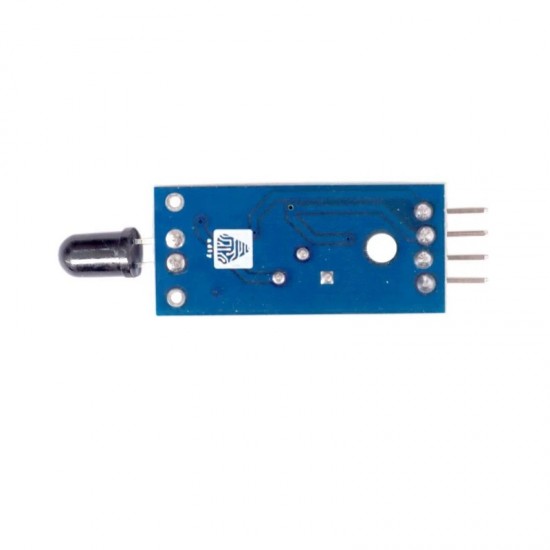

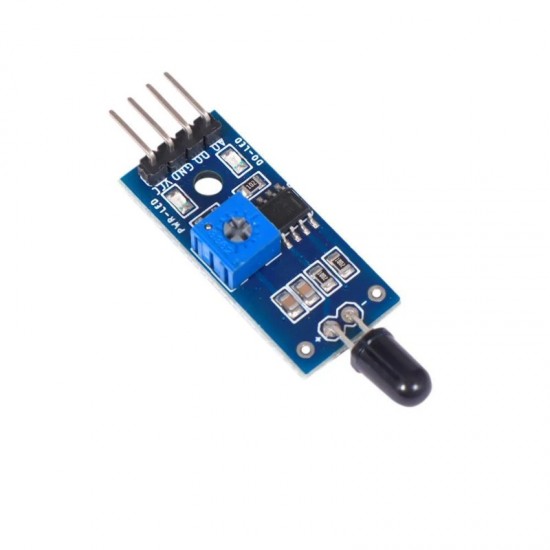

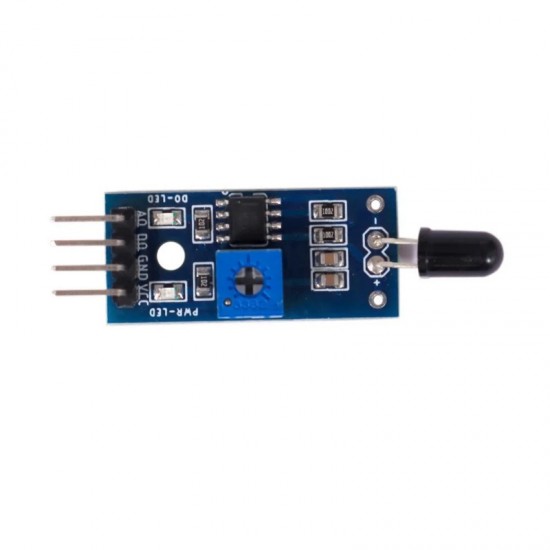

Flame Sensor Module

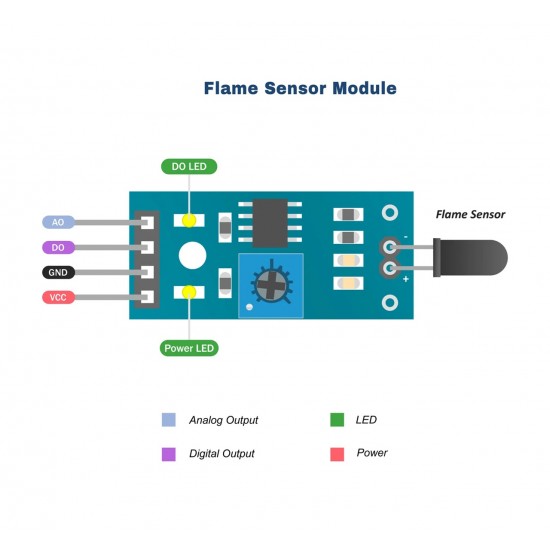

Flame Sensor Module can detect flames in the 760 – 1100 nanometer wavelength range. Small flames like a lighter flame can be detected at roughly 0.8m. The detection angle is roughly 60 degrees and the sensor is particularly sensitive to the flame spectrum.An on-board LM393 op-amp is used as a comparator to adjust the sensitivity level. The sensor has a digital and analog output and sensitivity can be adjusted via the blue potentiometer.
Features
- High Photo Sensitivity
- Fast Response Time
- Sensitivity adjustable
- Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm.
- Detection range: up to 100 cm.
- Adjustable detection range.
- The detection angle is about 60 degrees, it is sensitive to the flame spectrum.
- Comparator chip LM393 makes module readings stable.
- Operating voltage 3.3V-5V.
- Digital and Analog Output.
- Power indicator and digital switch output indicator.
Specifications
- Comparator chip LM393 makes module readings stable.
- Operating voltage 3.3V-5V.
- Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm.
- Detection range: up to 100 cm.
- Adjustable detection range.
- The detection angle is about 60 degrees, it is sensitive to the flame spectrum.
Package Includes
- 1x Flame Sensor Module
