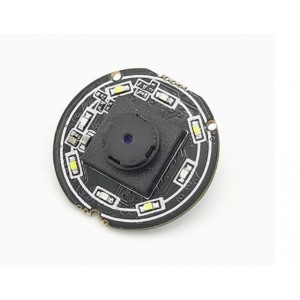

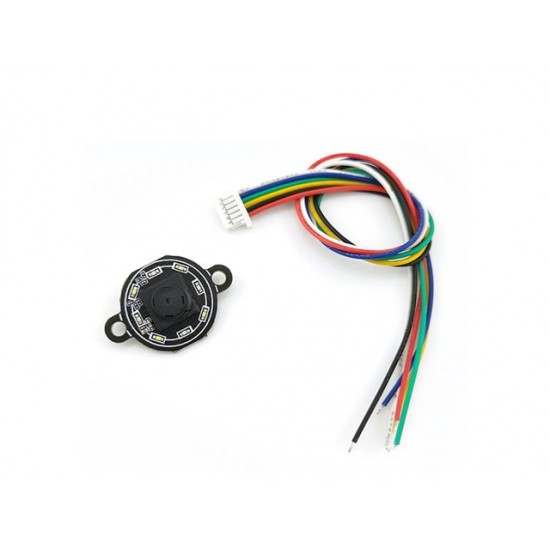

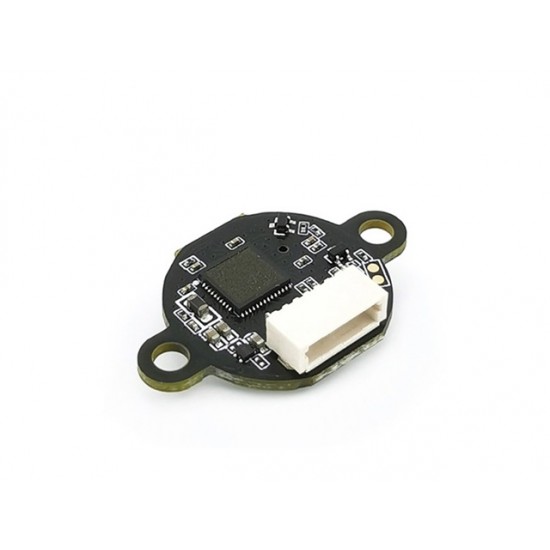

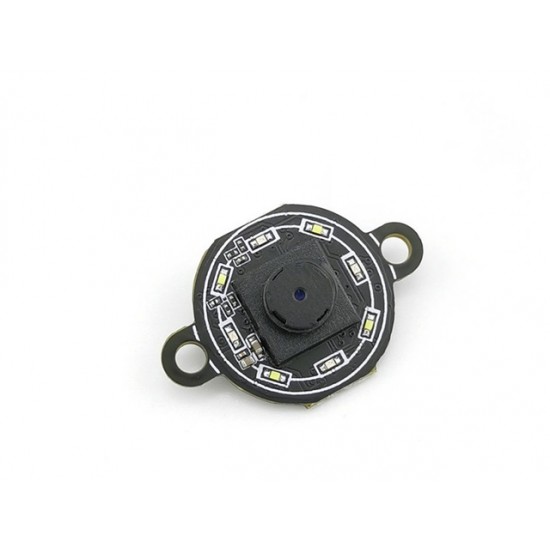

GROW GM861XS-0 1D 2D Barcode Scanner Module

The GROW GM861XS-0 Barcode Scanner Module is a compact, high-performance scanning engine designed for fast and accurate reading of both 1D and 2D barcodes. Built with advanced CMOS imaging technology, this module delivers reliable decoding of QR codes, Data Matrix, PDF417, and traditional linear barcodes, even in challenging conditions such as low light, damaged, or low-contrast codes.

Ideal for embedded applications, the GM861XS-0 features a lightweight and space-saving design, making it perfect for integration into kiosks, POS systems, handheld devices, access control systems, and industrial automation equipment. With support for common communication interfaces like UART and USB, it ensures seamless integration with a wide range of microcontrollers and host systems.

Datasheet

Specifications

Sensor: CMOS
Scan Mode: 640*480
Indicator Light; Green light as read successfully
Read Code Type

EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128,
Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5,
Matrix 2 of 5, Code 39,Code 11, MSI-Plessey,GS1 Composite,GS1-Databar (RSS)
QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec

GM861XS-0 Reading Distanc: 5-30cm
Contrast*: ＞25%
Scan Angle: Roll: 360° Pitch: 65° Yaw: 65°
Viewing Angle: 67° (Horizontal) 53° (Vertical)
Accuracy of reading*: ≥10mil
Interface: TTL-232/USB
Size(mm)

Diameter 17.2mm(Without hole)
Diameter 25mm(Including hole)

Prompting mode: LED Indicator
Operating Voltage: 5V
Operation Current: 70mA(Max)
Standby Current: ≤6mA(Typical)
Startup time: ≤250mS (Typical)

Package Includes

GROW GM861XS-0 1D 2D Barcode Scanner Module
