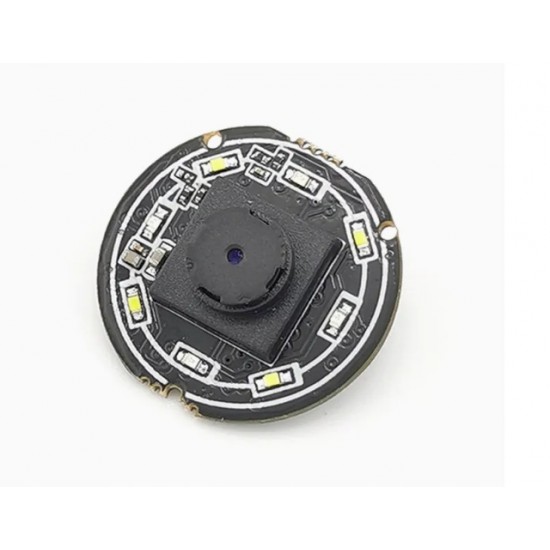

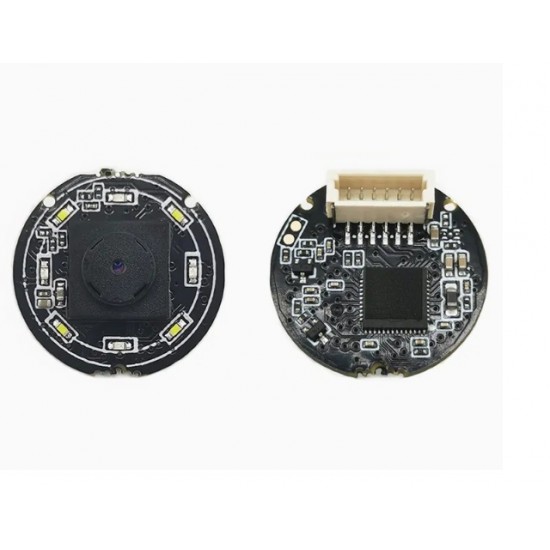

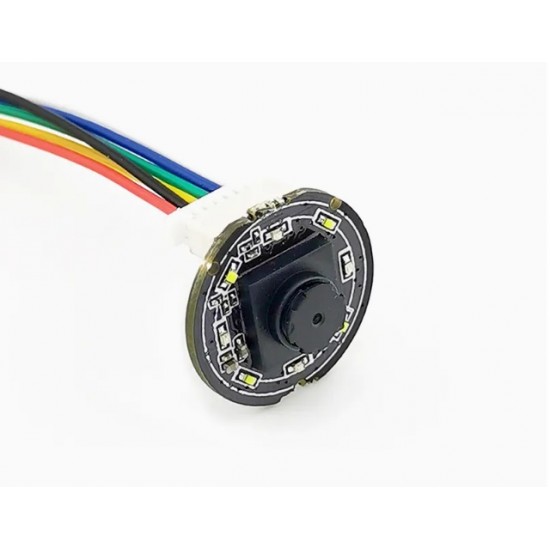

GROW GM861XS Small Size 1D/2D Bar Code QR Code Scanner Module With White Green LED - UART/USB Interface

The GROW GM861XS Small Size 1D/QR/2D Barcode Scanner Module is a compact, high-performance scanning solution designed for seamless integration into embedded systems, kiosks, handheld devices, and industrial applications. Equipped with advanced decoding technology, this module efficiently reads a wide range of 1D and 2D barcodes, including QR codes, even under low-light or high-density conditions.

Featuring a distinctive white and green LED indicator system, the GM861XS provides clear visual feedback for scanning status, enhancing user interaction and operational efficiency. Its small form factor makes it ideal for space-constrained designs without compromising performance.

The module supports both UART and USB interfaces, ensuring flexible connectivity with microcontrollers, single-board computers, and PCs. With fast recognition speed, low power consumption, and reliable performance, the GROW GM861XS scanner module is suitable for applications such as POS systems, ticketing machines, access control, inventory management, and mobile data terminals.

Datasheet

Specifications

Sensor: CMOS
Scan Mode: 640*480
Indicator Light; Green light as read successfully
Read Code Type
EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128,
Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5,
Matrix 2 of 5, Code 39,Code 11, MSI-Plessey,GS1 Composite,GS1-Databar (RSS)
QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec
GM861XS-0 Reading Distanc: 5-30cm
Contrast*: ＞25%
Scan Angle: Roll: 360° Pitch: 65° Yaw: 65°
Viewing Angle: 67° (Horizontal) 53° (Vertical)
Accuracy of reading*: ≥10mil
Interface: TTL-232/USB
Size(mm)

Diameter 17.2mm(Without hole)
Height4.9mm

Prompting mode: LED Indicator
Operating Voltage: 3.3V
Operation Current: 70mA(Max)
Standby Current: ≤6mA(Typical)
Startup time: ≤250mS (Typical)

Package Includes

1x GROW GM861XS Small Size 1D/2D Bar Code Scanner QR Code Barcode Scanner Module
