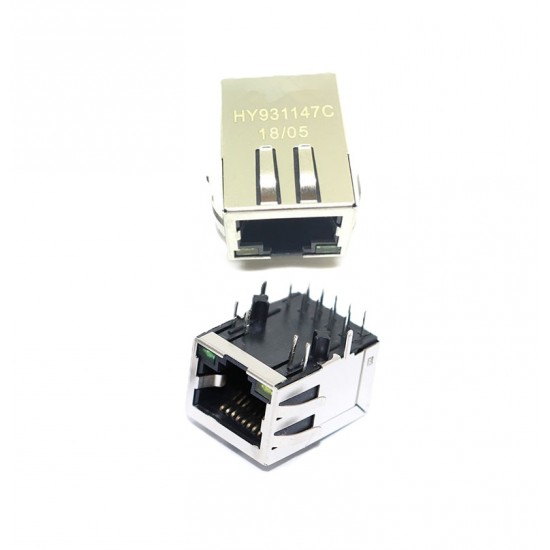

Name: HY931147C Single Port RJ45 Ethernet Connector With Integrated Magnetics and LEDs - 10/100Base-TX
Brand: HanRun
SKU: 07502
Price: 299.00 INR
Availability: InStock

HY931147C Single Port RJ45 Ethernet Connector With Integrated Magnetics and LEDs - 10/100Base-TX

HanRun

HY931147C Single Port RJ45 Ethernet Connector With Integrated Magnetics and LEDs - 10/100Base-TX

Based on 0 reviews. - Write a review

₹299.00

₹253.39 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 3
B2B GST Credit Available

Price in reward points: 253

Stock: 20 in Stock
SKU: 07502
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

HY931147C Single Port RJ45 Ethernet Connector With Integrated Magnetics and LEDs - 10/100Base-TX

The HY931147C Single Port RJ45 Ethernet Connector is a compact and reliable network interface solution designed for 10/100Base-TX Ethernet applications. It features integrated magnetics that provide signal isolation and noise suppression, eliminating the need for external transformer components and simplifying PCB design.

This connector also includes built-in LED indicators for link and activity status, allowing easy network monitoring and diagnostics. Designed for through-hole PCB mounting, the HY931147C ensures stable mechanical strength and excellent electrical performance in industrial and embedded networking applications.

Ideal for use in routers, switches, network interface cards, industrial controllers, IoT gateways, and embedded Ethernet-enabled devices, this RJ45 jack delivers dependable connectivity in a space-saving form factor.

Datasheet

Features

Single Port RJ45 Ethernet Connector for 10/100Base-TX networks
Integrated Magnetics (MagJack) for signal isolation and noise suppression
Built-in LED Indicators for Link/Activity status monitoring
Through-Hole PCB Mount for secure and stable board installation
High Reliability and Durability for industrial and embedded applications
Compatible with standard Ethernet PHY interfaces
Compact design saves PCB space
Suitable for routers, switches, IoT gateways, industrial controllers, and network devices

Specifications

Model: HY931147C
Connector Type: RJ45 Ethernet Jack
Network Standard: 10/100Base-TX (Fast Ethernet)
Ports: Single Port
Magnetics: Integrated Isolation Transformers
LED Indicators: Link & Activity LEDs
Mounting Type: Through-Hole PCB Mount
Contact Material: Gold-plated for reliable signal transmission
Operating Frequency: 125MHz (Fast Ethernet)
Impedance: 100Ω differential
Operating Temperature: −40°C to +85°C (typical)
