Name: IMX335 5MP USB Camera (C), 2K Video Recording, Better Sensitivity In Low-Light Condition, Wide Dynamic Range, Distortion-Free
Brand: WaveShare Electronics
SKU: 31824
Price: 3409.00 INR
Availability: OutOfStock

IMX335 5MP USB Camera (C), 2K Video Recording, Better Sensitivity In Low-Light Condition, Wide Dynamic Range, Distortion-Free

WaveShare Electronics

IMX335 5MP USB Camera (C), 2K Video Recording, Better Sensitivity In Low-Light Condition, Wide Dynamic Range, Distortion-Free

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹3,409.00

₹2,888.98 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 29
B2B GST Credit Available

Price in reward points: 2889

Stock: 0 in Stock
SKU: 31824
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

IMX335 5MP USB Camera (C), 2K Video Recording, Better Sensitivity In Low-Light Condition, Wide Dynamic Range, Distortion-Free

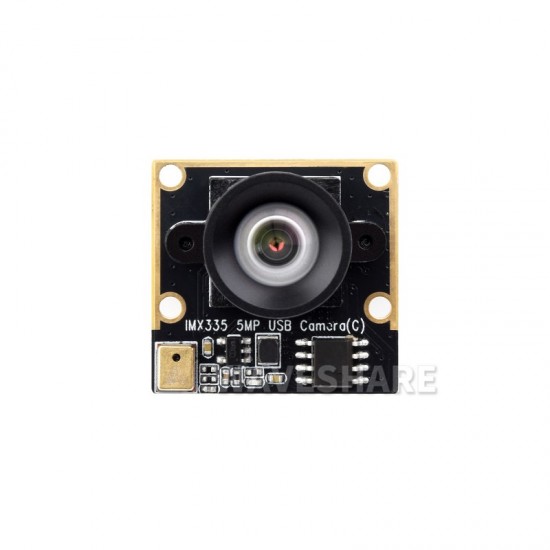

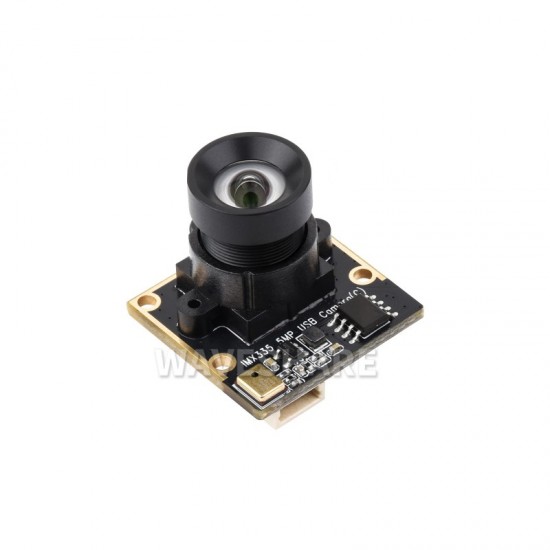

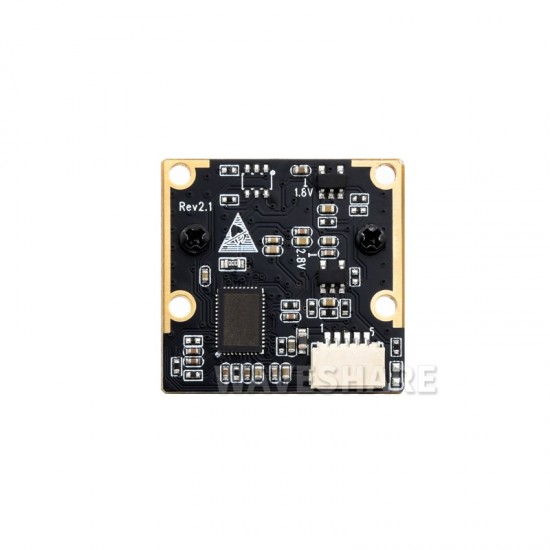

The IMX335 5MP USB Camera (C) is a high-performance imaging solution designed for clarity, precision, and versatility. Featuring a 5-megapixel Sony IMX335 sensor, this camera supports 2K video recording, delivering sharp and detailed visuals. It offers enhanced low-light sensitivity and a wide dynamic range (WDR), ensuring excellent performance in challenging lighting conditions. The distortion-free lens captures true-to-life images with minimal aberration, making it ideal for industrial vision systems, AI projects, surveillance, and machine learning applications. With USB connectivity, it ensures easy plug-and-play integration with most systems.

User Manual / Datasheet / Example Codes Etc.

Specifications

Pixels: 5 million
Resolution: 2592 × 1944
Photosensitive chip: IMX335
DSP: Auto gain/exposure/white balance
Camera:

CCD size: 1/2.8 inch
Aperture (F): 2.4
Focal length (EFL): 3.25 mm
Field of View (FOV): 91.7° (D)
Distortion: < -1.22%
Focus mode: Fixed focus

Interface type: USB2.0
Image:

Supported image formats: MJPG, YVY2
Static image resolution: 2592 × 1944
Video recording support:
30 FPS 2592 × 1944
30 FPS 1920 × 1080
30 FPS 1280 × 720
Dynamic range: 71.6dB@8xgain
Signal-to-noise ratio (SNR): 36dB

Audio: Onboard microphone
Operating voltage: 5V ± 5%
Operating temperature: 10°C ~ 60°C
Outline dimensions: 25.00 × 24.00 (mm)

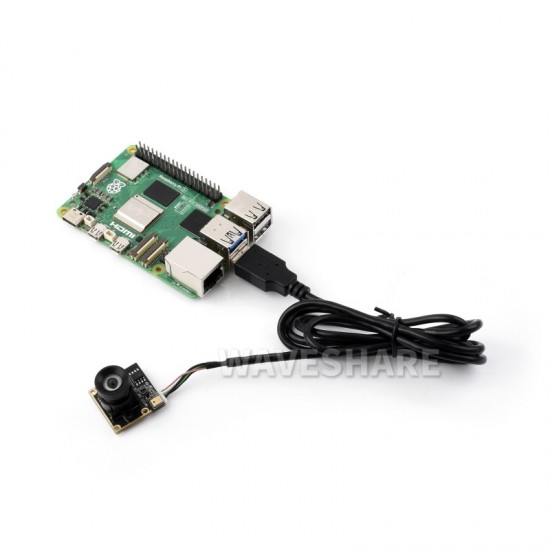

Supported systems: Windows, Linux, MacOS

Package Includes

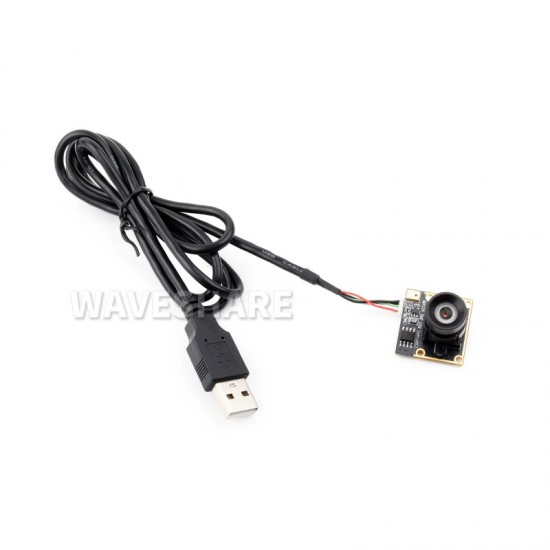

1x IMX335 5MP USB Camera (C) with USB Cable

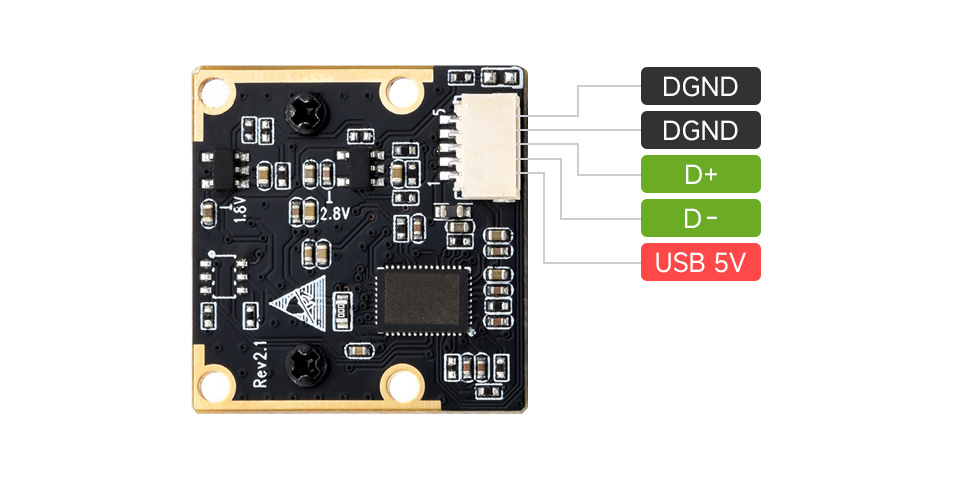

Pinout Definition

Outline dimensions
