Name: Waveshare IMX378 12MP USB Camera (A), Supports 30 FPS Output, Better Sensitivity In Low-Light Condition, Distortion-Free, Onboard Dual Microphones
Brand: WaveShare Electronics
SKU: 31672
Price: 4259.00 INR
Availability: OutOfStock

Waveshare IMX378 12MP USB Camera (A), Supports 30 FPS Output, Better Sensitivity In Low-Light Condition, Distortion-Free, Onboard Dual Microphones

WaveShare Electronics

Waveshare IMX378 12MP USB Camera (A), Supports 30 FPS Output, Better Sensitivity In Low-Light Condition, Distortion-Free, Onboard Dual Microphones

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹4,259.00

₹3,609.32 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 36
B2B GST Credit Available

Price in reward points: 3609

Stock: 0 in Stock
SKU: 31672
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Waveshare IMX378 12MP USB Camera (A), Supports 30 FPS Output, Better Sensitivity In Low-Light Condition, Distortion-Free, Onboard Dual Microphones

The Waveshare IMX378 12MP USB Camera (A) is a high-performance imaging solution designed for applications that demand superior image quality, reliable performance, and ease of integration. Equipped with the advanced IMX378 sensor, this camera delivers crisp 12MP resolution with smooth 30 FPS output, making it ideal for industrial vision, embedded systems, AI applications, and high-quality video capture.

With enhanced low-light sensitivity, the camera ensures clear and detailed imaging even in challenging lighting conditions. Its distortion-free lens design provides accurate image reproduction, making it suitable for precision tasks such as machine vision, surveillance, and measurement systems.

The onboard dual microphones enable high-quality audio capture, making the module a complete solution for video conferencing, smart devices, and multimedia applications. The USB interface ensures plug-and-play compatibility with a wide range of systems, reducing development time and complexity.

User Manual / Datasheet / Example Codes Etc.

Features

12MP high-resolution imaging with IMX378 sensor
Smooth video output at up to 30 FPS
Excellent low-light performance for enhanced visibility
Distortion-free lens for accurate image capture
Built-in dual microphones for audio recording
USB interface for easy plug-and-play connectivity
Suitable for AI vision, industrial applications, and embedded systems

Specifications

Pixels: 12MP
Sensor: IMX378
Interface: USB2.0 Type-C
Camera

Sensor size: 1/2.3 inch
Aperture (F): 1.79
Focal length (EFL): 4.7mm
Field of view (FOV): 79.8°
Distortion: <0.39%
Focusing: Auto-focus


Format support: MJPG, YVY2
Static image resolution: 3840 × 3032
Video recording

30 FPS 3840 × 3032
30 FPS 3840 × 2160
30 FPS 2592 × 1944

Audio: Onboard dual microphones
Operating voltage: 5V ± 5%
operating temperature: 0°C ~ 50°C
Module size: 30.00 × 30.00 (mm)

Package Includes

IMX378 12MP USB Camera (A)
SH1.0 4PIN dual plug cable

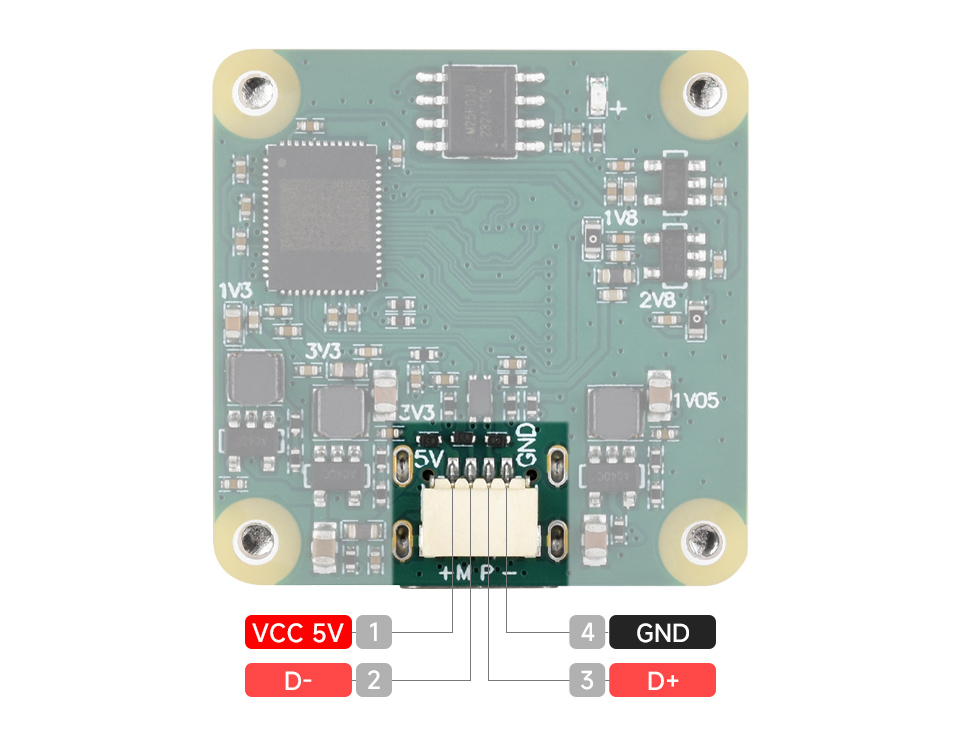

Pinout Definition

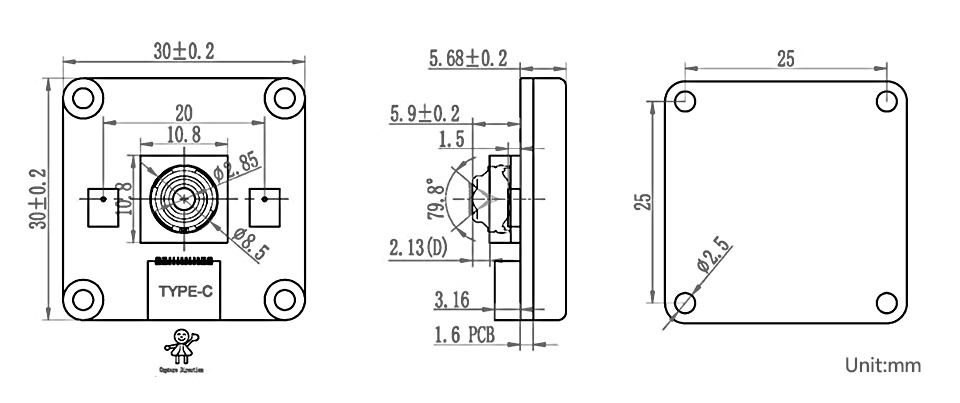

Dimensions
