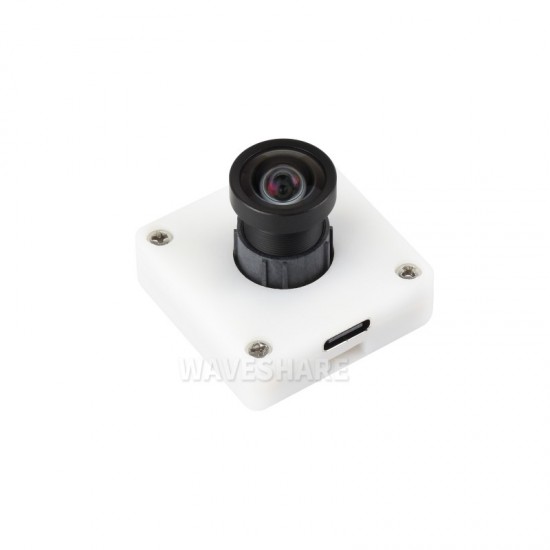

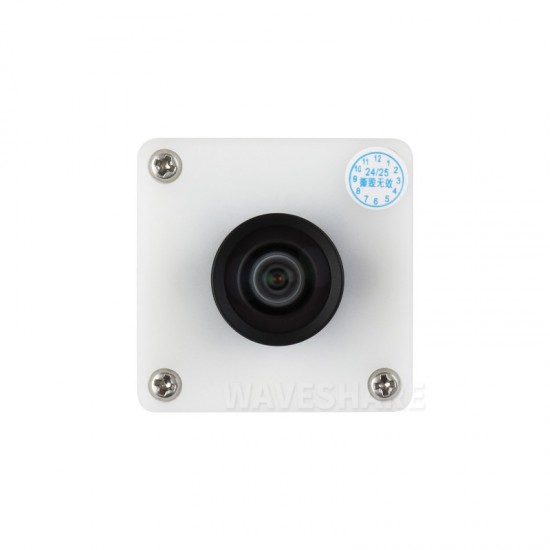

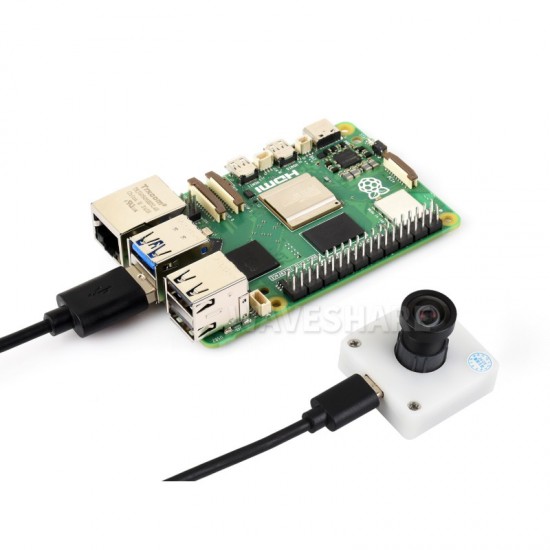

Name: Waveshare IMX577 12MP USB Camera (A), 3840 × 3024 Resolution, 113° FOV, Distortion-Free, Plug and Play
Brand: WaveShare Electronics
SKU: 33160
Price: 6999.00 INR
Availability: OutOfStock

Waveshare IMX577 12MP USB Camera (A), 3840 × 3024 Resolution, 113° FOV, Distortion-Free, Plug and Play

WaveShare Electronics

Waveshare IMX577 12MP USB Camera (A), 3840 × 3024 Resolution, 113° FOV, Distortion-Free, Plug and Play

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹6,999.00

₹5,931.36 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 59
B2B GST Credit Available

Price in reward points: 5931

Stock: 0 in Stock
SKU: 33160
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Waveshare IMX577 12MP USB Camera (A), 3840 × 3024 Resolution, 113° FOV, Distortion-Free, Plug and Play

The Waveshare IMX577 12MP USB Camera (A) is a high-performance imaging solution designed for applications requiring sharp detail, wide coverage, and reliable plug-and-play functionality. Powered by the advanced IMX577 sensor, this camera delivers exceptional image quality with a maximum resolution of 3840 × 3024, making it ideal for industrial vision, embedded systems, and high-definition video capture.

Featuring a wide 113° field of view, the camera captures more scene content in a single frame while maintaining a distortion-free output for accurate image representation. Its USB interface ensures easy integration with a variety of systems, eliminating the need for complex driver installations.

User Manual / Datasheet / Example Codes Etc.

Features

12MP high-resolution imaging with IMX577 sensor
Maximum resolution: 3840 × 3024
Wide 113° field of view for broader scene capture
Distortion-free lens for accurate imaging
USB interface for easy connectivity
Plug-and-play support, no additional drivers required
Suitable for machine vision, AI applications, and embedded development

Specifications

Pixels: 12MP
Sensor: IMX577
Interface: USB2.0 Type-C port / SH1.0 4PIN header
Camera

Sensor size: 1/2.3 inch
Aperture (F): 2.8
Focal length (EFL) : 2.88mm
Field of view (FOV): 113°
Distortion: <-1.5%
Focusing: Fixed-focus


Format support: MJPG, YUY2
Static image resolution: 3840 × 3024

Video recording

20FPS 3840 × 3024
30FPS 3840 × 2160
30FPS 2592 × 1944
30FPS 1920 × 1080

Operating voltage: 5V ± 5%
operating temperature: 0°C ~ 50°C
Module size: 34.00 × 34.00 (mm)

Package Includes

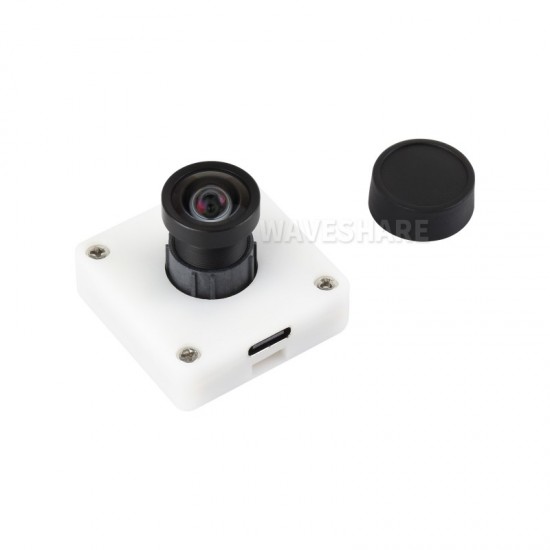

IMX577 12MP USB Camera (A) + dust cap x1
SH1.0 4PIN dual plug cable x1

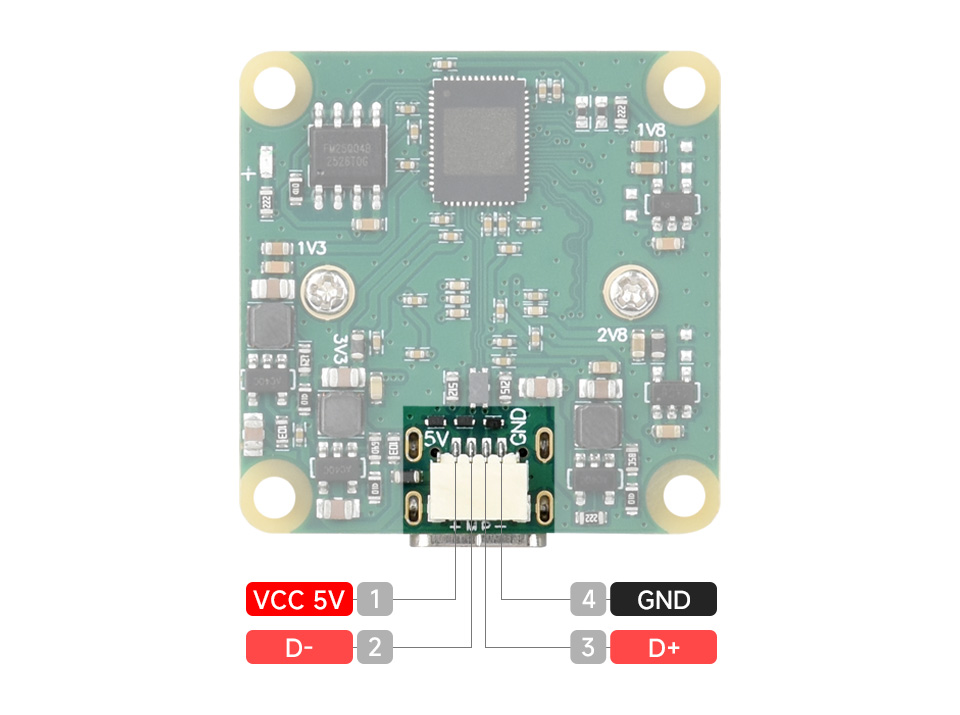

Pinout Definition

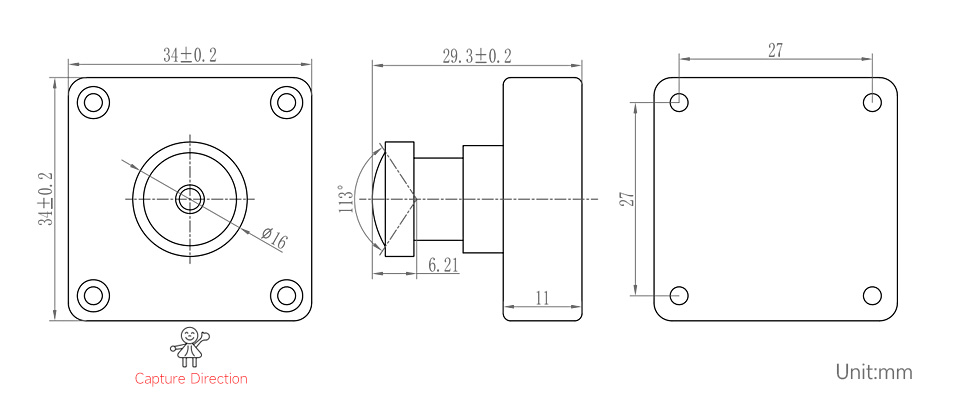

Dimensions
