Waveshare IMX678 8MP M12 USB Camera Module, IMX678 Sensor Chip, USB2.0 Port, Better Sensitivity In Low-Light Condition, Easy To Use

The Waveshare IMX678 8MP M12 USB Camera Module is a high-performance imaging solution designed for applications requiring exceptional clarity and superior low-light performance. Powered by the advanced IMX678 sensor chip, this camera delivers sharp 8MP resolution images with enhanced detail, even in challenging lighting environments.

Equipped with a standard M12 lens mount, the module offers flexibility to use different lenses based on your project requirements, making it ideal for industrial vision, security systems, AI applications, and embedded development. The USB 2.0 interface ensures quick and easy connectivity with PCs, Raspberry Pi, and other compatible devices without the need for complex drivers or configurations.

With its improved sensitivity and low-noise imaging capabilities, the IMX678 camera excels in dim-light conditions, delivering clear and reliable performance where traditional cameras struggle. Its plug-and-play design makes it suitable for both beginners and professionals looking for a dependable camera module for rapid deployment.

User Manual / Datasheet / Example Codes Etc.

Features

8MP high-resolution imaging for clear and detailed output
IMX678 sensor for enhanced low-light sensitivity
M12 lens mount for customizable field of view
USB 2.0 interface for easy plug-and-play connectivity
Low-noise performance in dim environments
Compatible with PC, Raspberry Pi, and embedded systems
Compact design suitable for industrial and DIY projects

Specifications

Pixels: 8MP
sensor chip: IMX678
Interface: USB 2.0
Camera

Sensor size: 1/1.8inch
Aperture (F): 2.4
Focal length (EFL): 4.2mm
Field of View (FOV): 93° (D) / 86° (H) / 55° (V)
Focusing: Fixed-focus
Distortion: <-1.2%
IR Filter: 650nm filter
Shutter: Rolling shutter


Format support: MJPG, YUY2
Static image resolution: 3840 × 2160

Video recording

MJPG:
30FPS 3840 × 2160
30FPS 2880 × 2160
30FPS 2048 × 1536
30FPS 1920 × 1080
30FPS 1600 × 1200
30FPS 1280 × 960
30FPS 1280 × 720
30FPS 800 × 600
30FPS 640 × 480
YUY2:
1.5FPS 3840 × 2160
1.5FPS 2880 × 2160
3.75FPS 2048 × 1536
3.75FPS 1920 × 1080
5FPS 1600 × 1200
7.5FPS 1280 × 960
10FPS 1280 × 720
10FPS 1024 × 768
20FPS 800 × 600
20FPS 640 × 480

Operating Voltage: 5V ± 5%
Operating current: 250mA
Dimensions: 38.00 × 38.00 × 24.93 (mm)

Package Includes

1x IMX678 8MP USB Camera (A)
1xUSB Type-A to MX1.25 4PIN cable ~1.5m

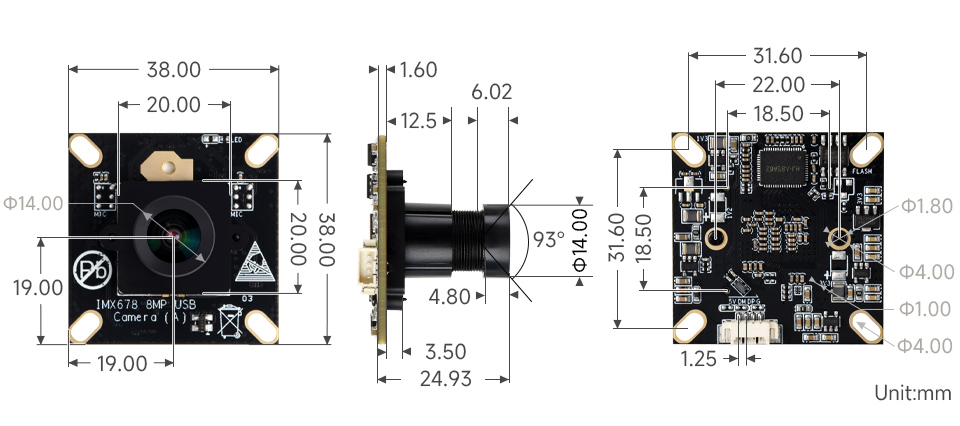

Dimensions
