LILYGO T-Deck Plus Meshcore ESP32-S3FN16R8 + SX1262 868Mhz LoRa + GPS Wireless WiFi Bluetooth Development Board With 2.8inch LCD Display - Built-in 2000 mah Battery - With External Antenna

The LILYGO T-Deck Plus MeshCore is a versatile wireless development board built around the ESP32-S3FN16R8 microcontroller and SX1262 868MHz LoRa transceiver. Designed for long-range wireless communication and portable IoT applications, it combines Wi-Fi, Bluetooth, LoRa, GPS, and a built-in display in a compact handheld form factor.

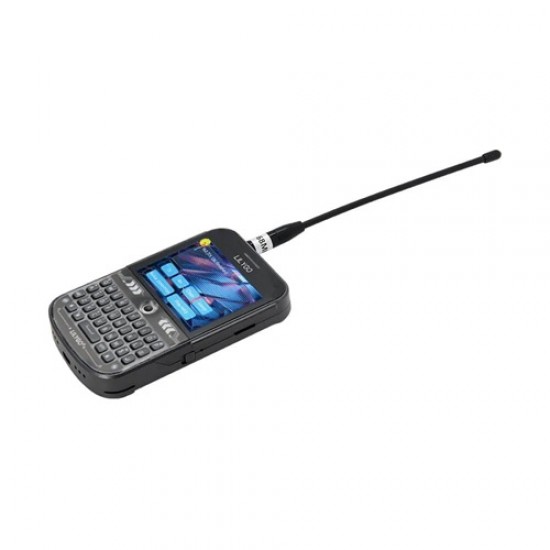

The board features a 2.8-inch LCD display for user interfaces, status monitoring, and interactive applications. Its integrated 2000mAh rechargeable battery makes it suitable for portable projects, while the external antenna provides a dedicated connection for LoRa wireless communication.

With MeshCore support, the T-Deck Plus can be used for mesh networking and long-range communication projects. The ESP32-S3 provides a powerful platform for embedded applications, wireless IoT devices, data communication, portable monitoring systems, and custom development projects.


User Manual / Datasheet / Example Codes Etc.


Features

  • ESP32-S3FN16R8 powerful wireless microcontroller
  • SX1262 868MHz LoRa transceiver
  • MeshCore support for mesh networking applications
  • 2.8-inch LCD display for graphical interfaces
  • Built-in 2000mAh rechargeable battery
  • GPS functionality for positioning and tracking applications
  • 2.4GHz Wi-Fi and Bluetooth connectivity
  • External antenna for enhanced wireless communication
  • Compact handheld development board design
  • Suitable for IoT, LoRa, GPS, telemetry, and wireless communication projects

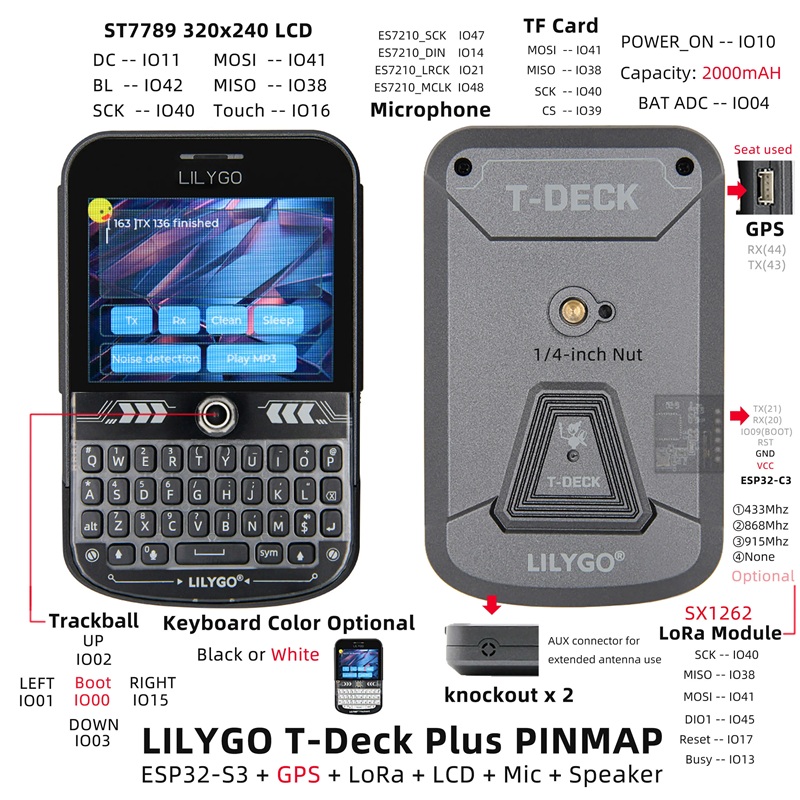

Specifications

  • MCU: ESP32-S3FN16R8 Dual-core LX7 microprocessor
  • Wireless Connectivity: 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
  • Development: Arduino, PlatformlO-IDE, Micropython
  • Flash: 16MB
  • PSRAM: 8MB
  • Battery ADC PIN: IO04
  • Onboard functions: GPS,TF Card,Microphone, Speaker
  •  2.8 inch ST7789 SPI Interface IPS LCD:
  • Resolution: 320 x 240 Full viewing angle
  •  SX1262 LoRa Transceiver
  • Transmit power: +22dBm
  • Frequency Optional: 868


Package Includes

  • 1x LILYGO T-Deck Plus Meshcore ESP32-S3FN16R8 + SX1262 868Mhz LoRa + GPS Wireless WiFi Bluetooth Development Board With 2.8inch LCD Display - Built-in 2000 mah Battery - With External Antenna
