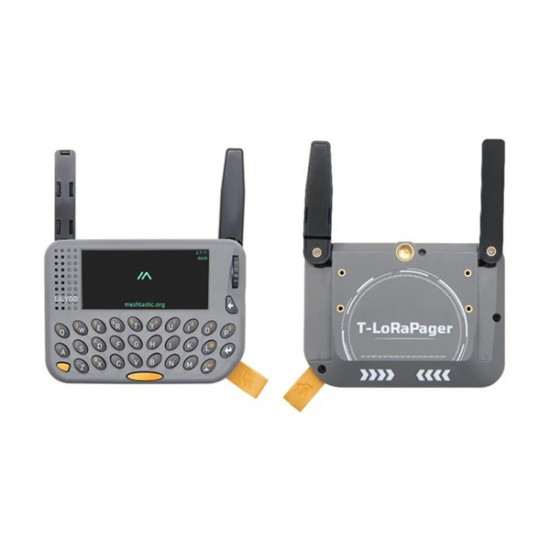

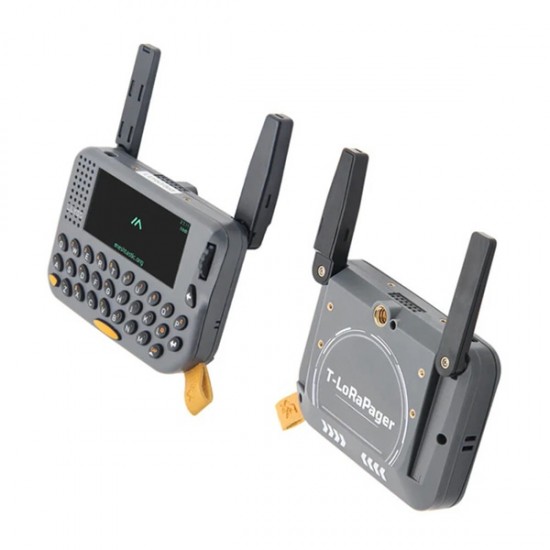

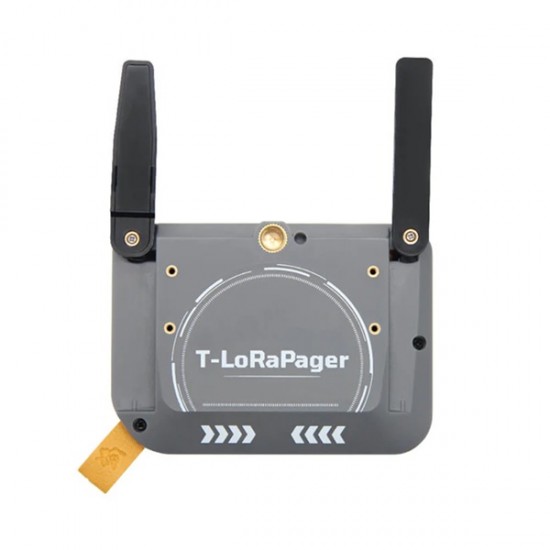

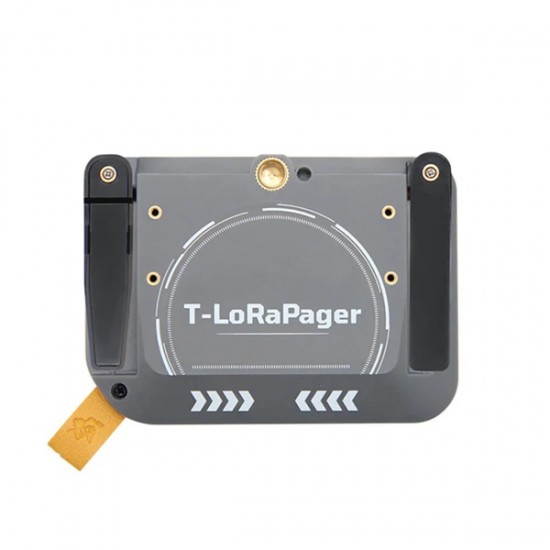

LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz LoRa + NFC+ GNSS Wireless Development Board with 2.3inch IPS LCD (K257)

LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz LoRa + NFC+ GNSS Wireless Development Board with 2.3inch IPS LCD (K257)
LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz LoRa + NFC+ GNSS Wireless Development Board with 2.3inch IPS LCD (K257)
LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz LoRa + NFC+ GNSS Wireless Development Board with 2.3inch IPS LCD (K257)
LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz LoRa + NFC+ GNSS Wireless Development Board with 2.3inch IPS LCD (K257)
LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz LoRa + NFC+ GNSS Wireless Development Board with 2.3inch IPS LCD (K257)
LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz LoRa + NFC+ GNSS Wireless Development Board with 2.3inch IPS LCD (K257)
LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz LoRa + NFC+ GNSS Wireless Development Board with 2.3inch IPS LCD (K257)
LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz LoRa + NFC+ GNSS Wireless Development Board with 2.3inch IPS LCD (K257)
LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz LoRa + NFC+ GNSS Wireless Development Board with 2.3inch IPS LCD (K257)
LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz LoRa + NFC+ GNSS Wireless Development Board with 2.3inch IPS LCD (K257)
TTGO
LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz LoRa + NFC+ GNSS Wireless Development Board with 2.3inch IPS LCD (K257)

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
Based on 0 reviews. - Write a review
₹​12,636.00
₹​10,708.47 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 107
B2B GST Credit Available
Price in reward points: 10708
Buy Now NOTIFY WHEN AVAILABLE
Plan to Buy Later ? Add to Wish List

LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz LoRa + NFC+ GNSS Wireless Development Board with 2.3inch IPS LCD (K257)

The LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz LoRa + NFC + GNSS Wireless Development Board is a compact handheld AIoT communication and development device designed for Meshtastic, LoRa messaging, GPS tracking, and portable wireless applications. Powered by the ESP32-S3 dual-core processor and Semtech SX1262 LoRa transceiver, this feature-rich development board combines long-range wireless communication, NFC, GNSS positioning, audio support, and a full QWERTY keyboard in a pager-style form factor. It is ideal for off-grid communication, mesh networking, IoT prototyping, field monitoring, and DIY portable communication projects.


User Manual / Datasheet / Example Codes Etc.


Features

  • ESP32-S3 dual-core Wi-Fi + Bluetooth 5 MCU
  • SX1262 868MHz LoRa wireless communication
  • Meshtastic firmware compatible
  • 2.33-inch IPS LCD display with 480×222 resolution
  • Built-in QWERTY keyboard and rotary encoder
  • Integrated NFC / RFID functionality
  • U-blox MIA-M10Q GNSS positioning module
  • AI-enabled Bosch BHI260AP IMU sensor
  • ES8311 audio codec with microphone and speaker support
  • 16MB Flash + 8MB PSRAM
  • MicroSD / TF card expansion support
  • RTC circuit with low-power management
  • Foldable external antenna design
  • USB Type-C programming and charging interface
  • Portable handheld pager-style enclosure


Specifications

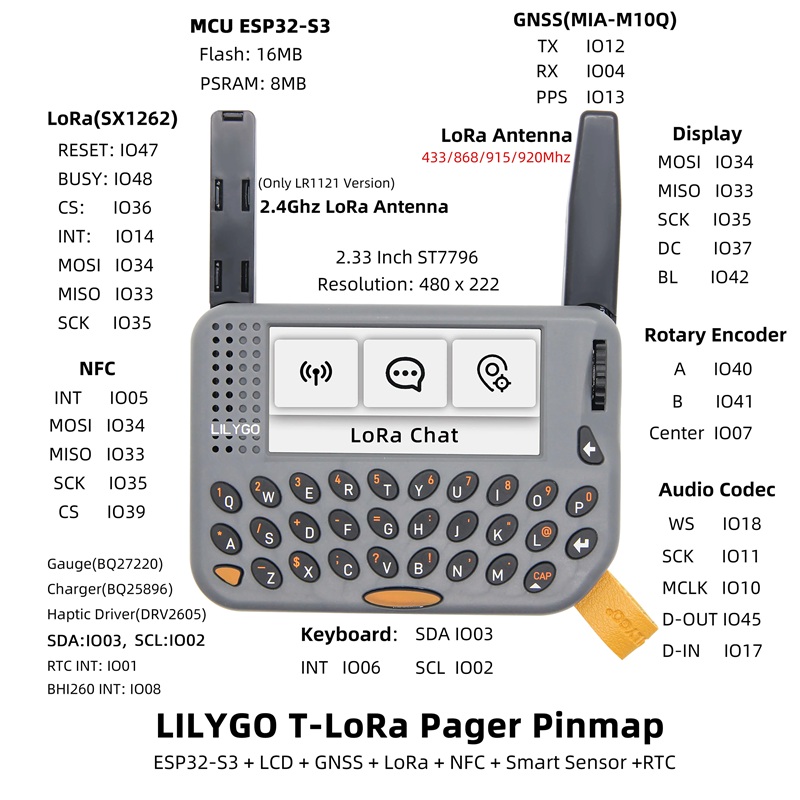

  • MCU: ESP32-S3
  • Flash: 16MB
  • PSRAM: 8MB
  • Development: Arduino-IDE,VS Code,ESP-IDF
  • Board Function: RTC, Battery Charger, Battery Gauge, GPl0 Expand, Audio Power Amplifier, TF Card, Keyboard
  • Size: 106 x 89x 23mm
  • USB Charging: 5V, 500MAH


Package Includes

  • 1x LILYGO T-Lora Pager Meshtastic ESP32-S3 + SX1262 868MHz
  • 2x LoRa + NFC+ GNSS Wireless Development Board with 2.3inch IPS LCD
