DWIN
₹1,466.10 + 18% GST
B2B GST Credit Available
DWIN 5inch TN TFT LCD, Resistive Touch, TN TFT 800x480 600nit High Brightness LCD Display, LN80480T050IA9098-TR
The DWIN HDL662B Adapter Board is used to debug the LCM LCD Modules / LCD displays. The board has a USB connector on one side and 10 pins 1mm pitch F..
₹565.22
Ex Gst ₹479.00
20cm 8Pin 2.0mm Cable HDL65011 with DB9 and power interface for DWIN HMI LCDsThis is a custom made DB9 cable which allows DWIN HMI LCDs RS232 interfac..
₹77.88
Ex Gst ₹66.00
PGT05 - JTAG Kernel/ OS Burner Hardware for DWIN HMI LCDs PGT05 is a JTAG programmer which is specifically designed to update the OS/GUI Kernel (..
₹2,708.10
Ex Gst ₹2,295.00
FCC1015A Cable 10Pin 1.0mm Pitch 150mm Opposite Side Contact FFC Cable for DWIN HMI This is an accessory cable to be used with HDL662 USB to Seri..
₹28.32
Ex Gst ₹24.00
HDL65013 8 Way 2.00mm Connector Cable for DWIN HMI LCDsThis is an 8 way board to board connector. It can be used to connect the DWIN HMI LCDs to the d..
₹57.82
Ex Gst ₹49.00
8 Pin 2.0mm Pitch Connector Socket for DWIN HMI LCDs Compatible with HDL65013This connector is an accessory for DWIN HMI LCDs. This connector can be u..
₹29.50
Ex Gst ₹25.00
FCC-10-1.0 10Pin 1.0mm FCC Socket for DWIN HMI LCDsThis is an accessory for DWIN HMI LCDs. It is used as an user interface connector in many DWIN HMI ..
₹29.50
Ex Gst ₹25.00
This is an accessory cable meant to be used with HDL662B Adapter. It allows connection of HDL662B module with the host PC for programming and de..
₹147.50
Ex Gst ₹125.00
DWIN - HDL662S Debugging Adapter Board for CoF LCDsHDL662S is a debugging adapter board designed for F series COF screens. Lead out 22 IO ports, 3 UAR..
₹588.00
Ex Gst ₹498.31
16GB Class10 Micro SD CardMicro SD card with high speed class 10 specifications. With 16 GB memory capacity this SD card is suitable for usage with va..
₹299.00
Ex Gst ₹253.39
The product image is indicative, actual product may vary in color and looks. FeaturesLow cost and compact micro SD card reader module. High tran..
₹49.00
Ex Gst ₹41.53
HL-340 - USB to RS232 Adapter Cable - CH340 BasedCH340 chip based USB to RS232 full modem cable with moulded connector housing. This cable works p..
₹110.00
Ex Gst ₹93.22₹1,730.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 15
B2B GST Credit Available
Price in reward points: 1466
- Stock: 0 in Stock
- SKU: 05939
- Delivery Time
- Bulk & B2B RFQ

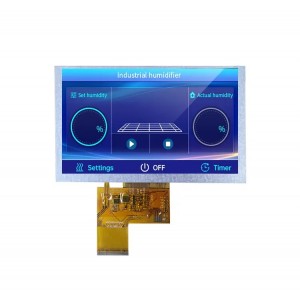

DWIN 5inch TN TFT LCD, Resistive Touch, TN TFT 800x480 600nit High Brightness LCD Display, LN80480T050IA9098-TR
The DWIN 5.0inch TN TFT LCD display, a compact yet powerful solution for your visualization needs. Engineered with precision and reliability in mind, this display offers a crisp and clear viewing experience suitable for a wide range of applications.
Features
- 5 inch, 800×480 pixels, TN normal viewing angle TFT LCD
- 16.7M color, 600 cd/m², 20 LEDS
- RGB_24bit 40PIN_0.5mm interface
- Air bonding resistive touch pane
Specifications
- Color: 16.7M
- LCD Type: TN-TFT-LCD
- Viewing Angle: Normal viewing angle, 70/70/50/70(L/R/U/D)
- Display Area(A.A): 108.0(W)*64.8(H)
- Driver IC: ILI6122+ILI5960
- Luminance: 600cd/m²
- LED Numbers: 20 LEDS
- Interface: RGB_24bit 40PIN_0.5mm
Touch Specifications
- Type: RTP (Resistive touch panel)
- Structure: ITO Film+ ITO Glass+ FPC
- Outline Size(mm): 120.20(W)*74.4(H)*1.5(T)
- Active Area(mm): 107.6(W)*64.4(H)
- Surface Hardness: 3H
- Light Transmittance: 78%±3%
- Operating Temperature: -20~70℃
- Storage Temperature: -30~80℃
Electrical Characteristics
- Digital Power Voltage: 3.3V(Typ.)
- Forward Voltage: 12V(Typ.)
- Connection Mode: 4 chips serial*5
Optical Characteristics
- Contrast Ratio: 800:1
- Response Time: 35ms
