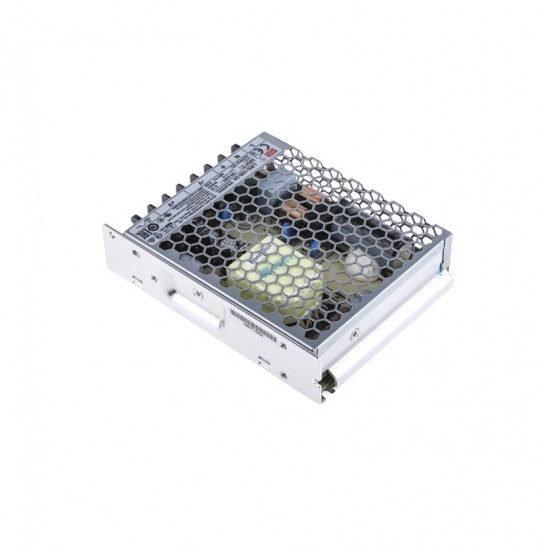

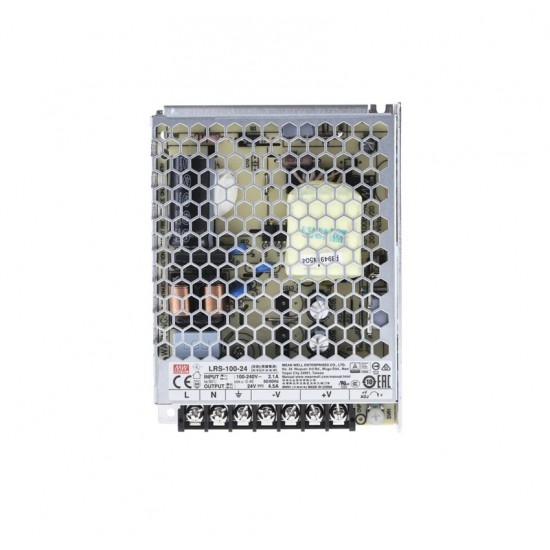

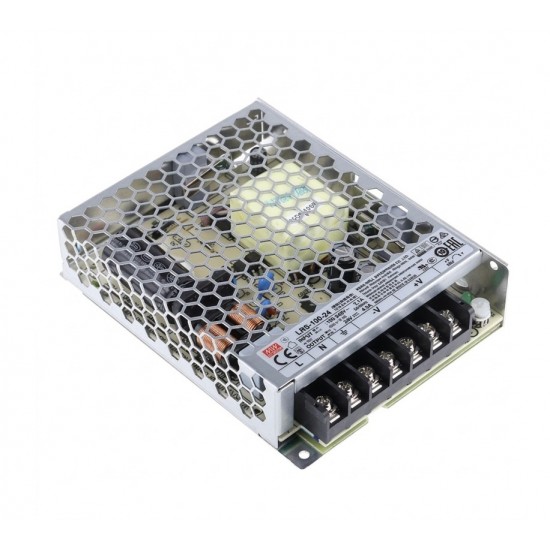

Name: Mean Well LRS-100-24 24V 4.5A 108W Switching Power Supply (SMPS) - Single Output
Brand: Mean Well
SKU: 07579
Price: 1185.00 INR
Availability: InStock

Mean Well LRS-100-24 24V 4.5A 108W Switching Power Supply (SMPS) - Single Output

Mean Well

Mean Well LRS-100-24 24V 4.5A 108W Switching Power Supply (SMPS) - Single Output

Based on 0 reviews. - Write a review

₹1,185.00

₹1,004.24 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 10
B2B GST Credit Available

Price in reward points: 1004

Stock: 5 in Stock
SKU: 07579
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

Mean Well LRS-100-24 24V 4.5A 108W Switching Power Supply (SMPS) - Single Output

The Mean Well LRS-100-24 is a high-performance, single-output switching power supply designed for industrial and commercial applications. With a compact low-profile metal enclosure and excellent thermal performance, it delivers a stable 24V DC output at up to 4.5A, making it ideal for powering automation systems, LED lighting, CNC machines, and electronic equipment.

This SMPS features universal AC input compatibility, high efficiency, and robust protection mechanisms including overload, overvoltage, and short-circuit protection. Its fanless design ensures silent operation while maintaining reliable performance even in demanding environments.

Datasheet

Features

Single Output DC Power Supply – Provides stable 24V DC at up to 4.5A
High Efficiency Design – Up to 90%+ efficiency for reduced energy loss and heat
Universal AC Input – Accepts 85–264VAC (47–63Hz) for worldwide compatibility
Compact & Slim Metal Case – Space-saving design ideal for limited installation areas
Excellent Thermal Performance – Built-in cooling with optimized ventilation
Low Ripple & Noise Output – Suitable for sensitive electronic and industrial devices
Long Service Life & Robust Build – Durable design for continuous operation
Easy Mounting – Pre-drilled case for fast installation
Safety Certified – Complies with major international safety standards

Specifications

Model: LRS-100-24
Output Voltage: 24V DC
Rated Current: 4.5A
Output Power: 108W
Input Voltage Range: 85–264VAC
Input Frequency: 47–63Hz
RIPPLE & NOISE (max.): 200mVp-p
Efficiency: Up to ~90%
Protections: OLP / SCP / OVP / OTP
Operating Temperature: -30°C to +70°C
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
Dimensions: 129*97*30mm (L*W*H)
Weight: 350g
Mounting Style: Chassis mounting
