Name: Mean Well LRS-200-24 24V 8.8A 211.2W Switching Power Supply (SMPS) - Single Output
Brand: Mean Well
SKU: 07581
Price: 1999.00 INR
Availability: InStock

Mean Well LRS-200-24 24V 8.8A 211.2W Switching Power Supply (SMPS) - Single Output

Mean Well

Mean Well LRS-200-24 24V 8.8A 211.2W Switching Power Supply (SMPS) - Single Output

Based on 0 reviews. - Write a review

₹1,999.00

₹1,694.07 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 17
B2B GST Credit Available

Price in reward points: 1695

Stock: 3 in Stock
SKU: 07581
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

Mean Well LRS-200-24 24V 8.8A 211.2W Switching Power Supply (SMPS) - Single Output

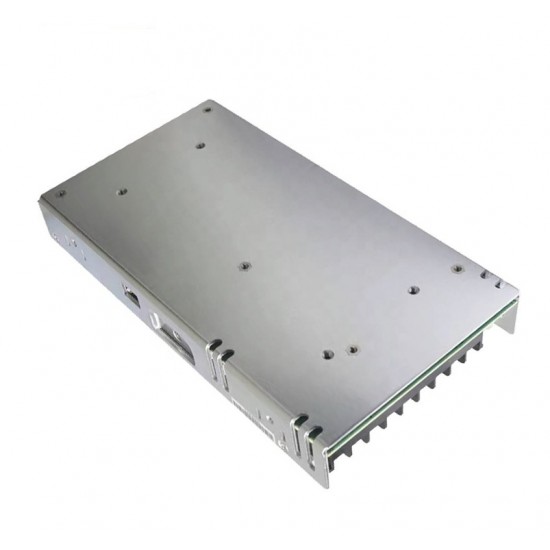

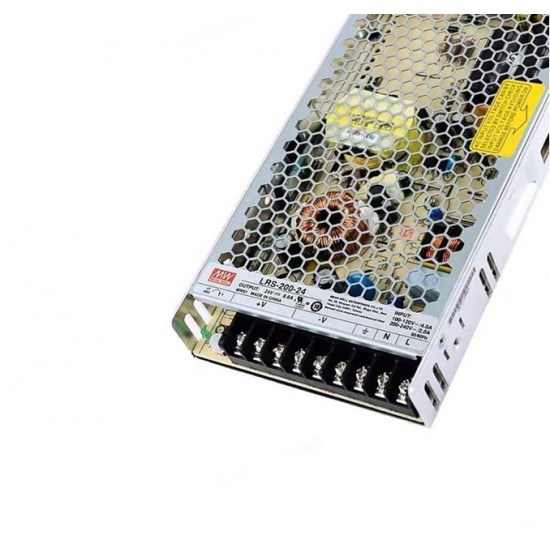

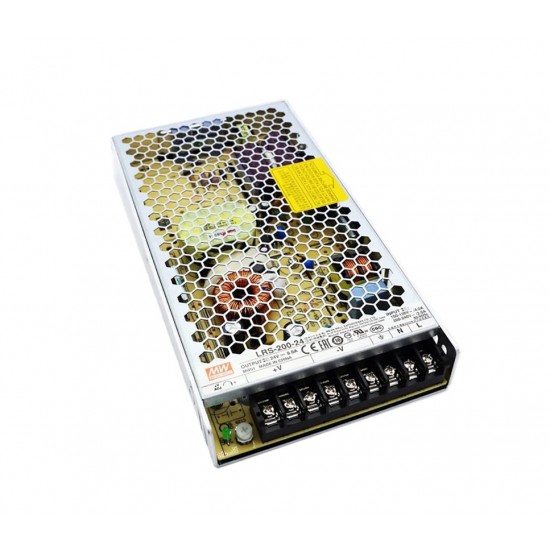

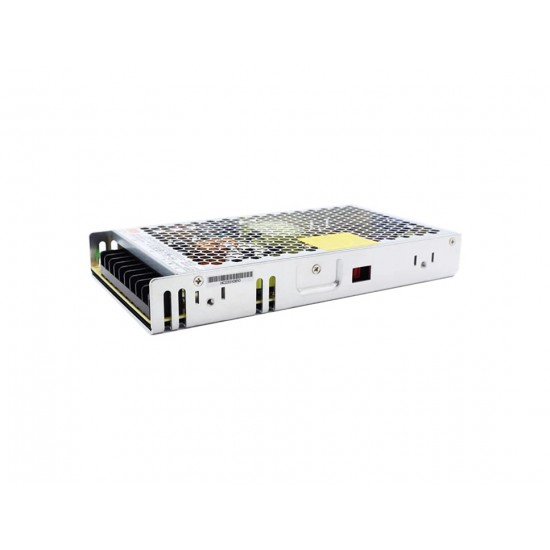

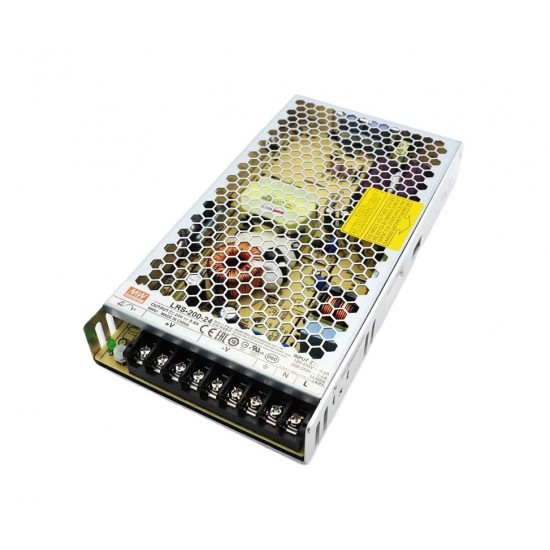

The Mean Well LRS-200-24 is a high-efficiency, single-output switching power supply designed to deliver reliable and stable 24V DC output at up to 8.8A. With a power rating of over 200W, this SMPS is ideal for demanding industrial and commercial applications such as automation systems, LED installations, CNC machines, and control panels.

Featuring a compact low-profile metal enclosure, the LRS-200-24 ensures excellent heat dissipation through natural air convection. Its fanless design enables silent operation while maintaining consistent performance even under continuous full-load conditions.

This power supply supports a universal AC input range and includes comprehensive protection features such as short circuit, overload, overvoltage, and overtemperature protection, ensuring safe and long-lasting operation. Built by Mean Well, a globally recognized brand, the LRS-200-24 offers exceptional reliability, durability, and efficiency for professional applications.

Datasheet

Features

Universal AC input (85–264VAC)
Stable 24V DC output with 8.8A current
High power capacity (200W class)
Compact low-profile design (~30mm height)
High efficiency up to ~89.5%
Built-in protections: short circuit, overload, overvoltage, overtemperature
Adjustable output voltage range
Fanless cooling (natural air convection)
Durable metal mesh enclosure
Low no-load power consumption
Suitable for continuous industrial operation

Specifications

Model: LRS-200-24
Output Voltage: 24V DC
Rated Current: 8.8A
Output Power: 211.2W
Input Voltage Range: 90–264VAC
Input Frequency: 47–63Hz
RIPPLE & NOISE (max.): 150mVp-p
Efficiency: Up to ~90%
Protection: Short Circuit / Overload / Overvoltage / Overtemperature
Overload Protection: 110% – 150% (auto recovery)
Cooling Method: Natural air convection (fanless)
No Load Power Consumption: <0.3W
Operating Temperature: -30°C to +70°C
Storage Temperature: -40°C to +85°C
Operating Humidity: 20% – 90% RH (non-condensing)
Weight: 700gm approx
Dimensions: 215*115*30mm (L*W*H)

Package Includes

1x Mean Well LRS-200-24 24V 8.8A 211.2W Switching Power Supply (SMPS) - Single Output
