Name: Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input And HID Signal Output For Device Control with Luckfox PicoKVM Extension board
Brand: LuckFox
SKU: 33910
Price: 8153.00 INR
Availability: OutOfStock

Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input And HID Signal Output For Device Control with Luckfox PicoKVM Extension board

LuckFox

Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input And HID Signal Output For Device Control with Luckfox PicoKVM Extension board

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹8,153.00

₹6,909.32 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 69
B2B GST Credit Available

Price in reward points: 6909

Stock: 0 in Stock
SKU: 33910
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input And HID Signal Output For Device Control with Luckfox PicoKVM Extension board

The Luckfox PicoKVM Lightweight IP KVM Remote Management Tool with Extension Board is a compact and efficient solution designed for seamless remote control and monitoring of computers and embedded systems. Engineered for reliability and ease of use, this device enables users to access and manage systems over a network as if they were physically present.

Supporting high-definition HDMI video input up to 1920 × 1080 at 60fps, the PicoKVM ensures smooth, real-time visual feedback with minimal latency. Combined with HID (Human Interface Device) signal output, it allows full keyboard and mouse control of the target device, making it ideal for remote troubleshooting, server management, and headless system operation.

The included Luckfox PicoKVM Extension Board enhances functionality by providing expanded connectivity and improved integration options, making the setup more flexible for various applications. Its lightweight and compact design makes it perfect for both portable use and permanent installations in server racks or embedded environments.

User Manual / Datasheet / Example Codes Etc.

Features

Onboard HDMI input interface: recognized by PC as a display for video capture
Onboard USB port: Supports simulation of mouse, keyboard, and USB storage devices
Onboard 100Mbps Ethernet port: for video and control signal transmission
1.54inch touch display: for displaying IP address, connection status, and system operating status
TF card slot: supports storage expansion
I/O expansion interface: for host power ON/OFF control

Specifications

Product: Luckfox PicoKVM
Processor: RV1106G3
Core: 1 × [email protected]
Memory: 256M DDR3
Storage: 8G eMMC
System: PicoKVM
Resolution: 1080P@60fps
Video Encoding: H264
Video Latency: 80ms ~ 200ms
Audio Transmission: √
UEFI / BIOS Support: √
USB Keyboard & Mouse Emulation: √
USB Storage Emulation: √
UEFI / BIOS Scope: √
Wake-on-LAN (WOL): √
Web Terminal: √
Custom Script: √
Serial Terminal: 1-Ch
Storage Expansion: TF card
Power Control: GPIO control
Ethernet: 100Mbps
LCD Display: 1.54inch 240 × 240 touch display (Only included in the Luckfox PicoKVM full version)
Power Input: Type-C
Outline Dimension
Luckfox PicoKVM: 48.50 × 48.50 × 29.00 (mm)

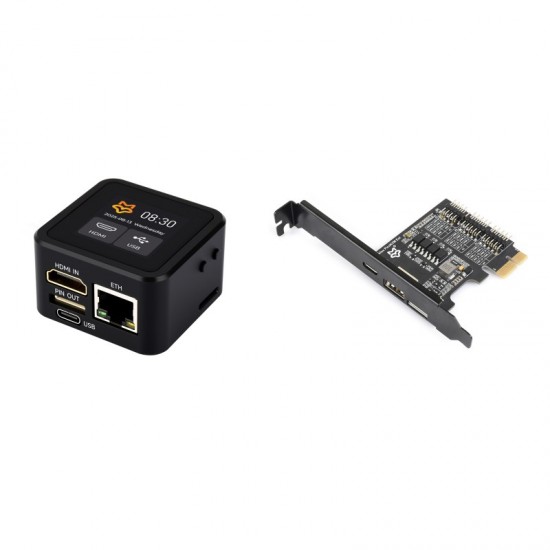

Package Includes

Luckfox PicoKVM x1
Luckfox PicoKVM Ext x1
Type-C extension cable with auxiliary power supply ~175mm x1
Motherboard USB extension 9PIN cable x1
Motherboard panel extension 9PIN cable x1
SH1.0 10PIN cable ~1m x1

What's On Board

Pin Definition

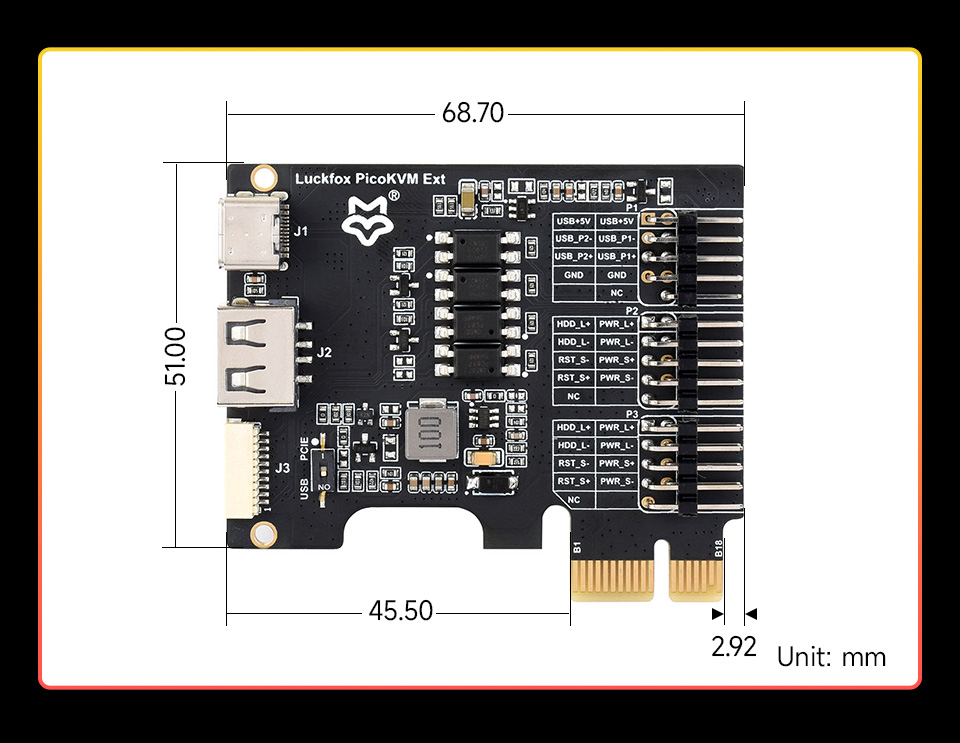

Dimensions
