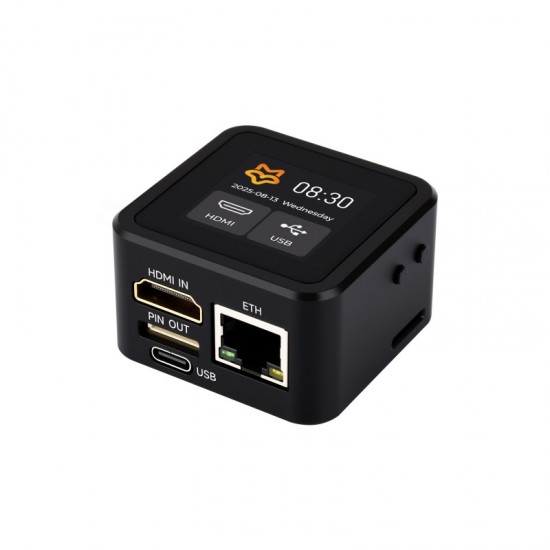

Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input And HID Signal Output For Device Control

The Luckfox PicoKVM Lightweight IP KVM Remote Management Tool is a compact and powerful solution designed for remote system control and monitoring. Built for developers, IT professionals, and embedded system enthusiasts, this device enables seamless remote access to computers and servers via network, without requiring additional software on the target machine.

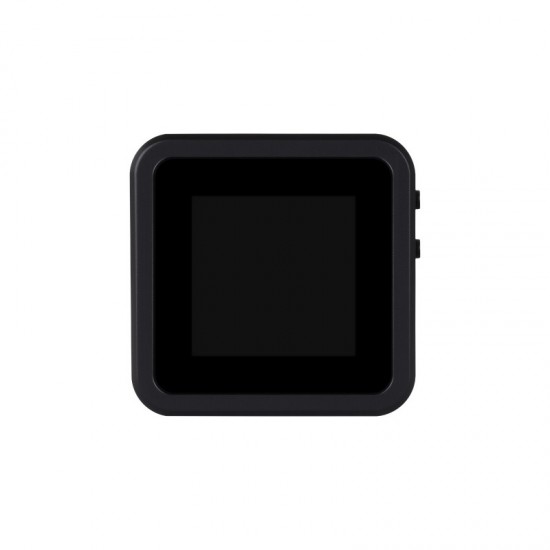

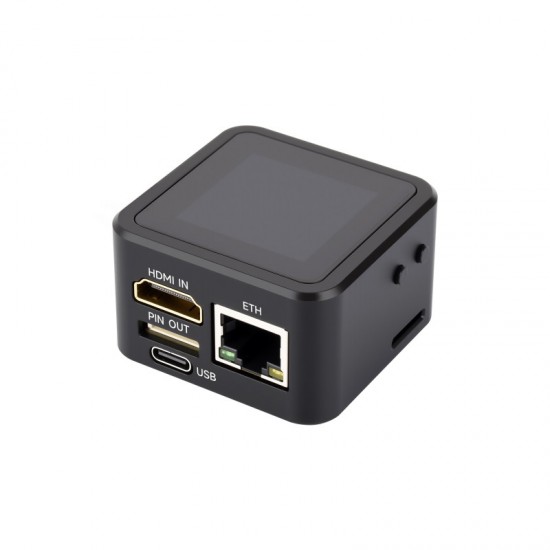

Equipped with a 1.54-inch display and a durable enclosure, the PicoKVM provides real-time status monitoring while maintaining a portable and space-saving form factor. It supports 1920 × 1080 @ 60fps HDMI video input, ensuring smooth, high-definition video streaming from the target device. With HID (Human Interface Device) signal output, users can remotely control the connected system as if physically present—handling keyboard and mouse operations effortlessly.

The PicoKVM operates over IP, allowing users to access and manage systems remotely through a web interface. It is ideal for headless servers, remote debugging, system recovery, BIOS-level access, and industrial control applications.

User Manual / Datasheet / Example Codes Etc.

Features

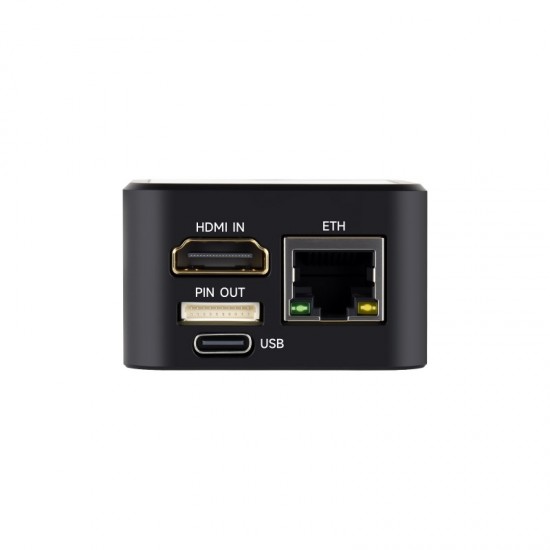

Onboard HDMI input interface: recognized by PC as a display for video capture
Onboard USB port: Supports simulation of mouse, keyboard, and USB storage devices
Onboard 100Mbps Ethernet port: for video and control signal transmission
1.54inch touch display: for displaying IP address, connection status, and system operating status

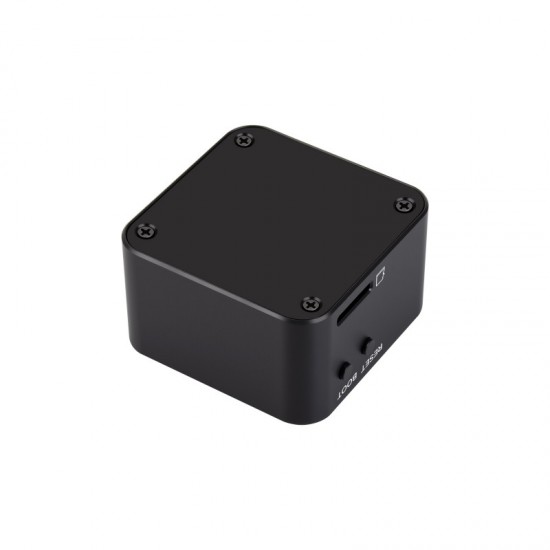

TF card slot: supports storage expansion
I/O expansion interface: for host power ON/OFF control

Specifications

Product: Luckfox PicoKVM
Processor: RV1106G3
Core: 1 × [email protected]
Memory: 256M DDR3
Storage: 8G eMMC
System: PicoKVM
Resolution: 1080P@60fps
Video Encoding: H264
Video Latency: 80ms ~ 200ms
Audio Transmission: √
UEFI / BIOS Support: √
USB Keyboard & Mouse Emulation: √
USB Storage Emulation: √
UEFI / BIOS Scope: √
Wake-on-LAN (WOL): √
Web Terminal: √
Custom Script: √
Serial Terminal: 1-Ch
Storage Expansion: TF card
Power Control: GPIO control
Ethernet: 100Mbps
LCD Display: 1.54inch 240 × 240 touch display (Only included in the Luckfox PicoKVM full version)
Power Input: Type-C
Outline Dimension
Luckfox PicoKVM: 48.50 × 48.50 × 29.00 (mm)

Package Includes

Luckfox PicoKVM x1
Type-C extension cable with auxiliary power supply ~175mm x1

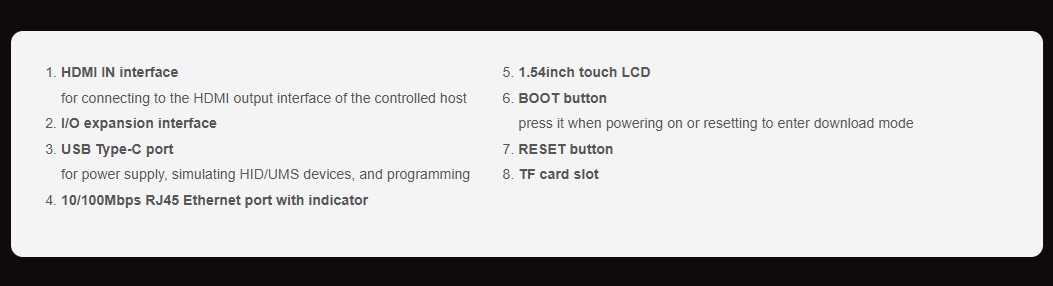

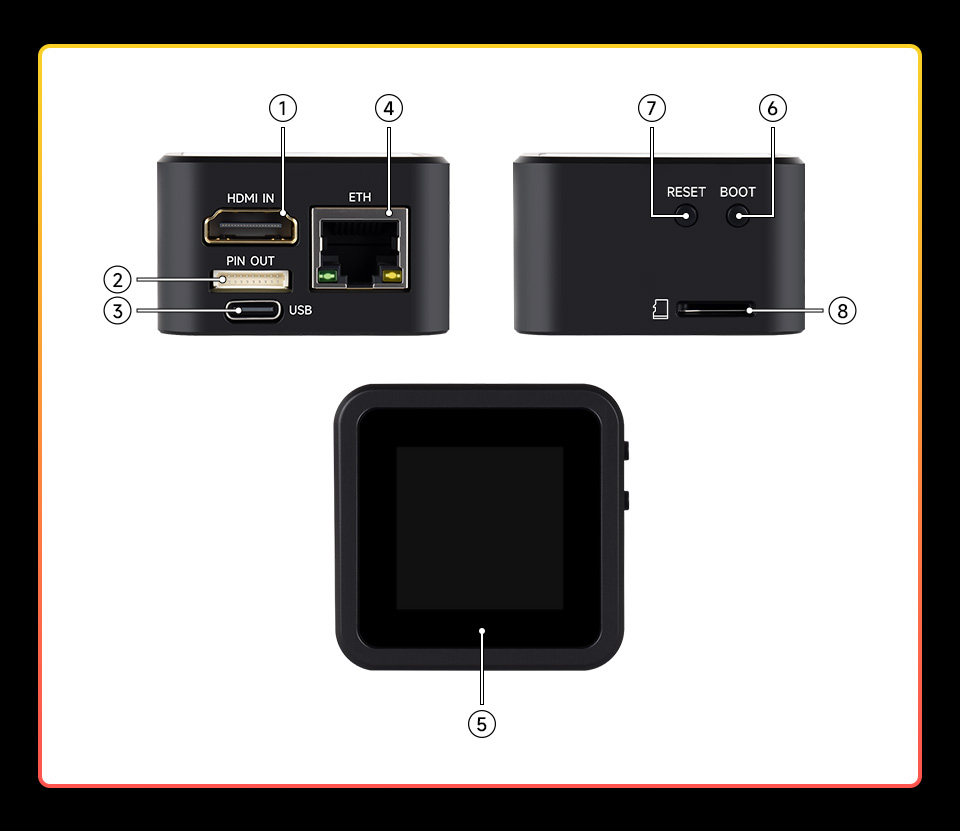

What's On Board

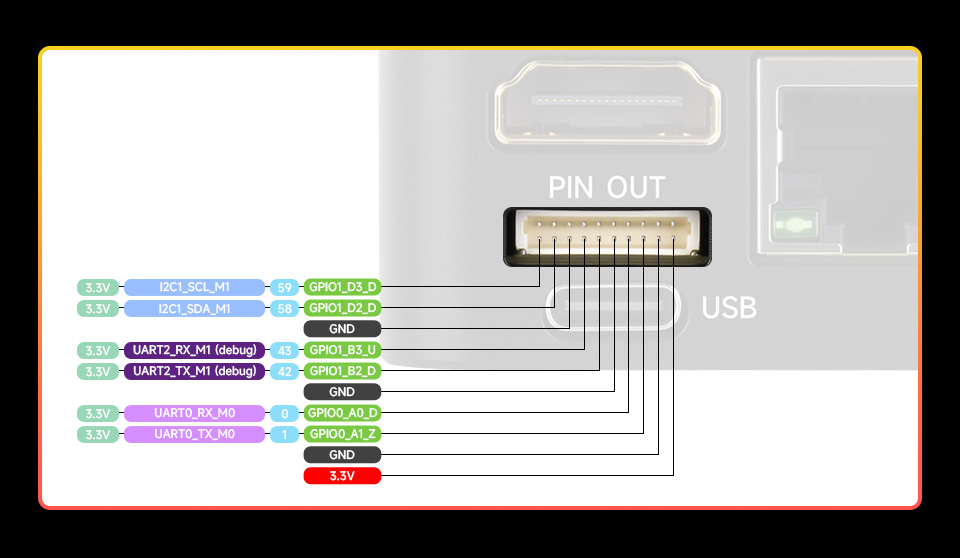

Pin Definition

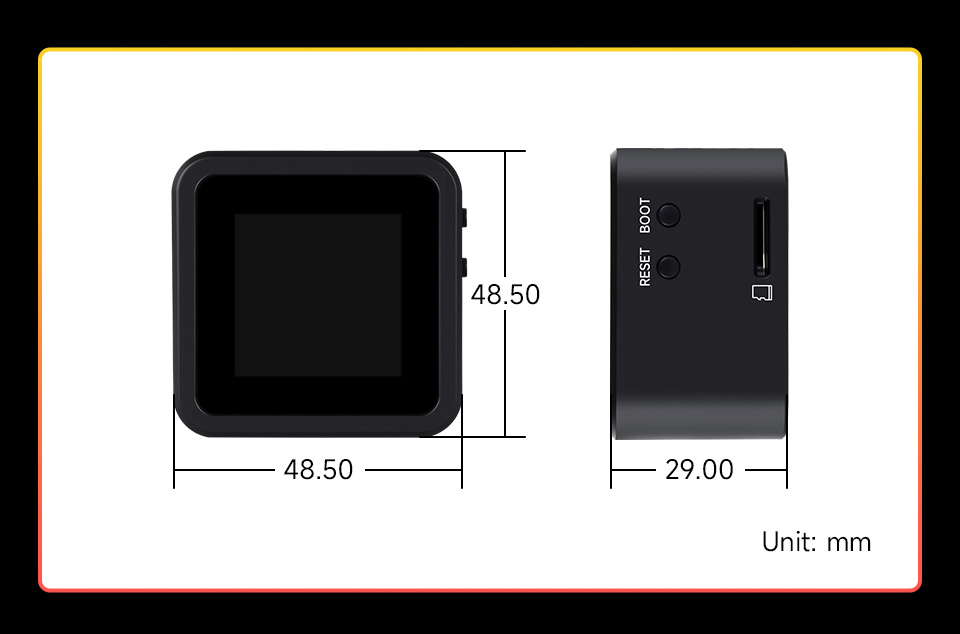

Dimensions
