PT100 RTD 3-Wire Temperature Sensor Amplifier Breakout Board - MAX31865

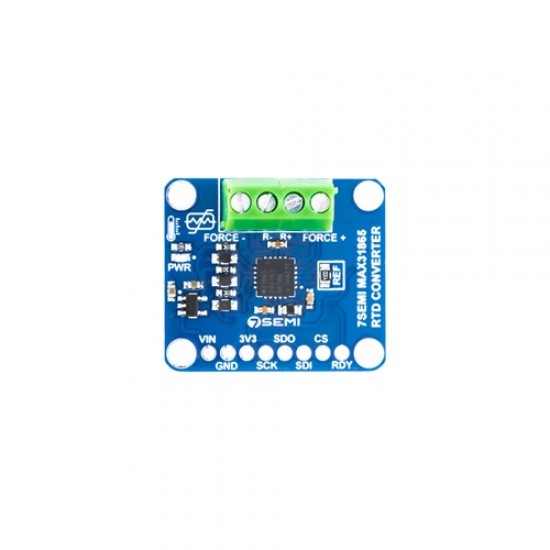

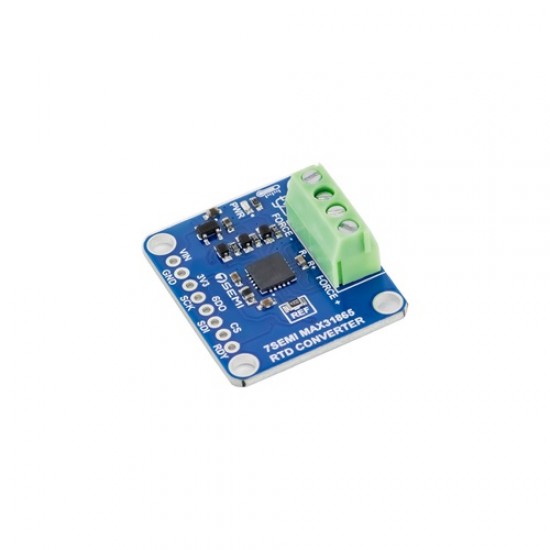

The 7Semi PT100 RTD 3-Wire Temperature Sensor Amplifier Breakout Board utilizes the MAX31865 RTD-to-digital converter to deliver precise temperature measurements. It supports 2, 3, and 4-wire PT100 RTDs, compensating for lead resistance to enhance accuracy. The board interfaces with microcontrollers via SPI and operates at 3.3V or 5V, making it suitable for industrial and laboratory applications.

Datasheet

Features

High-accuracy temperature measurement using the MAX31865 RTD-to-Digital Converter.
Supports PT100 and PT1000 RTD temperature sensors.
Compatible with 2-wire, 3-wire, and 4-wire RTD configurations.

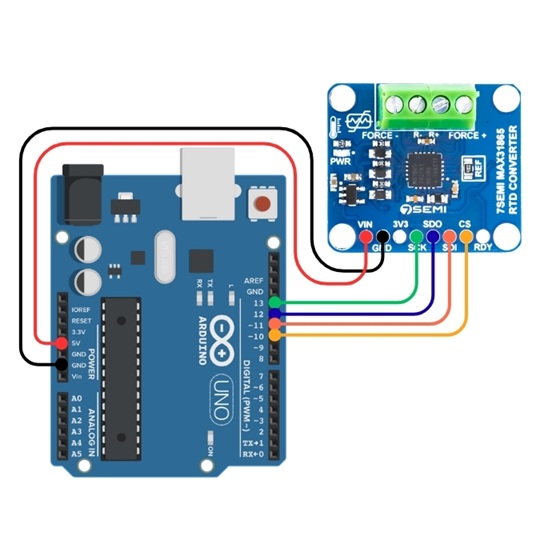

SPI interface for easy integration with Arduino, STM32, ESP32, Raspberry Pi, and other microcontrollers.
15-bit ADC provides precise and stable temperature readings.
Wide temperature measurement range from -200°C to +850°C (sensor dependent).
Built-in fault detection for open-circuit, short-circuit, and wiring faults.
Operates from both 3.3V and 5V systems.
Low-noise signal conditioning for improved measurement accuracy.
Compact breakout board design ideal for industrial, laboratory, and embedded applications.
Onboard components optimized for reliable RTD signal acquisition.
Suitable for industrial automation, HVAC systems, process monitoring, and data logging applications.

Specifications

Sensor Type: PT100 RTD (3-Wire)
Interface: SPI (Serial Peripheral Interface)
Signal Conditioning IC: MAX31865 RTD-to-Digital Converter
RTD Support: PT100 / PT1000 Compatible

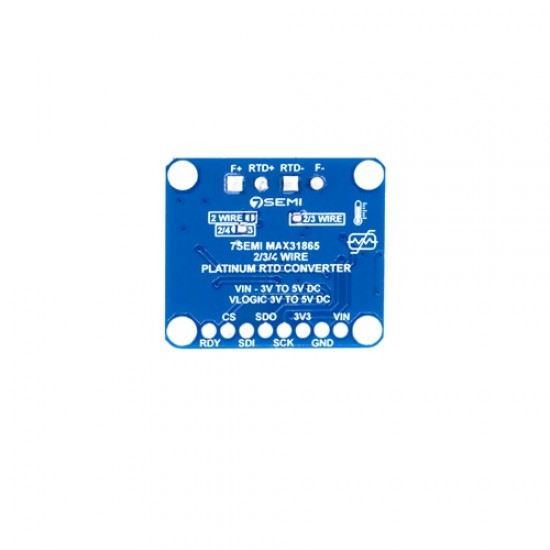

Wiring Support: 2-Wire, 3-Wire, and 4-Wire RTDs
ADC Resolution: 15-bit
Temperature Resolution: Up to 0.03125°C (MAX31865)
Temperature Range: -200°C to +850°C (with PT100 sensor)
Operating Voltage: 3.3V to 5V DC
Conversion Time: 21ms (max)
Input Protection: ±45V Fault Protection
Fault Detection: Open Sensor, Short Circuit, Over/Under Voltage Detection
Communication Protocol: SPI
Applications: Industrial Automation, Process Control, Data Logging, HVAC, Laboratory Instrumentation
Board Dimensions: Approx. 30mm × 20mm

Package Includes

1x 7Semi PT100 RTD 3-Wire Temperature Sensor Amplifier Breakout Board - MAX31865
