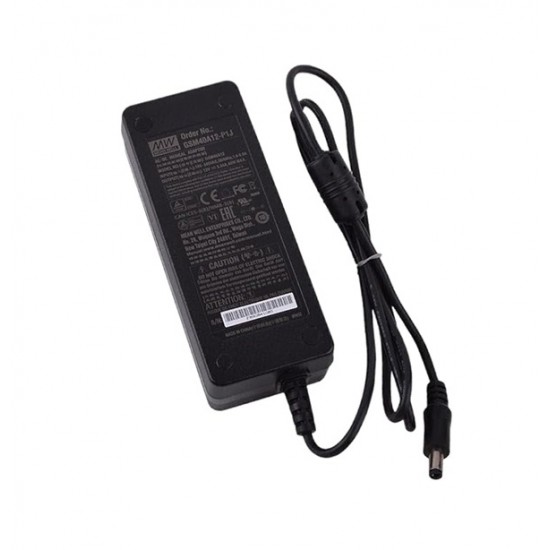

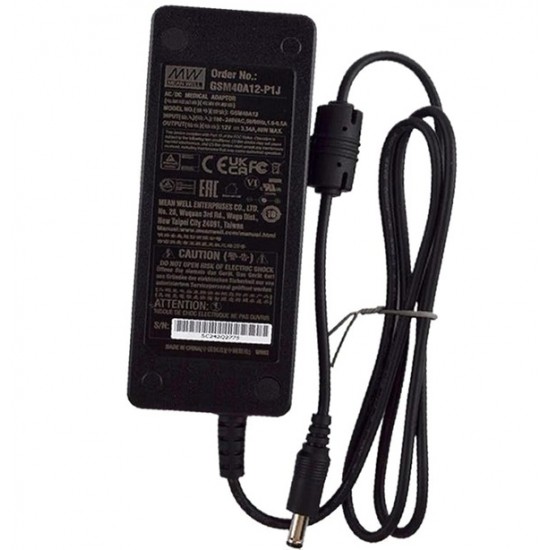

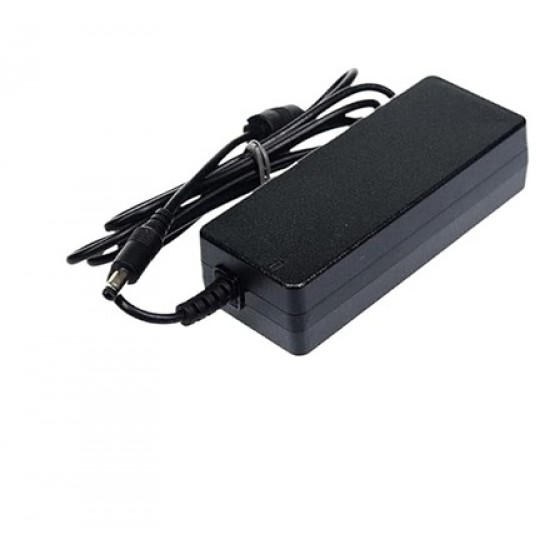

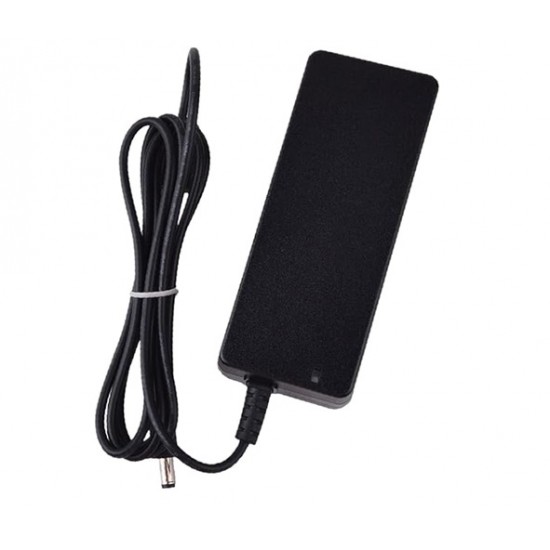

Name: Mean Well GSM40A12-P1J 12V 3.34A 40W AC-DC Medical Grade Power Adaptor
Brand: Mean Well
SKU: 07842
Price: 1899.00 INR
Availability: OutOfStock

Mean Well GSM40A12-P1J 12V 3.34A 40W AC-DC Medical Grade Power Adaptor

Mean Well

Mean Well GSM40A12-P1J 12V 3.34A 40W AC-DC Medical Grade Power Adaptor

Based on 0 reviews. - Write a review

₹1,899.00

₹1,609.32 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 16
B2B GST Credit Available

Price in reward points: 1609

Stock: 0 in Stock
SKU: 07842
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Mean Well GSM40A12-P1J 12V 3.34A 40W AC-DC Medical Grade Power Adaptor

The Mean Well GSM40A12-P1J is a high-performance 40W medical-grade desktop AC-DC power adaptor designed for healthcare, laboratory, and industrial electronic applications requiring stable and safe DC output. Delivering a regulated 12V DC output at 3.34A, this adaptor complies with stringent medical safety standards (2xMOPP / EN60601-1), making it suitable for patient-contact medical equipment, diagnostic systems, monitoring devices, and other precision electronics.

Built with high efficiency up to 88%, ultra-low leakage current, and comprehensive protection features, the GSM40A12-P1J ensures reliable, safe, and energy-efficient operation in demanding environments. It features a standard IEC320-C14 AC inlet, compact desktop form factor, and durable flame-retardant enclosure for long-term dependable use.

Note: This power adapter does not include the power cord cable. It can be purchased separately Link.

Datasheet

Features

12V DC regulated output
3.34A maximum output current
40W maximum output power
Medical safety approval (2xMOPP)
Low leakage current (<100µA)
Universal AC input: 80–264VAC
High efficiency up to 88%
No-load power consumption <0.1W
IEC320-C14 AC input connector
5.5 x 2.1mm DC barrel connector
Short circuit, overload & overvoltage protection
Energy Efficiency Level VI
Compact desktop design

Specifications

Model: GSM40A12-P1J
Brand: Mean Well
Output Voltage: 12V DC
Output Current: 3.34A
Output Power: 40W
Input Voltage: 80–264VAC / 113–370VDC
Efficiency: Up to 88%
Operating Temperature: -30°C to +60°C
Connector Type: 5.5mm x 2.1mm barrel plug
AC Inlet: IEC C14
Dimensions: 125*50*31.5mm (L*W*H)
Safety Compliance: EN60601-1 / 2xMOPP
Protection: SCP / OLP / OVP

Applications

Medical monitoring devices
Diagnostic equipment
Laboratory instruments
Healthcare electronics
Communication devices
Industrial control systems
Embedded electronic projects

Package Includes

1x GSM40A12-P1J 12V 3.34A 40W AC-DC Medical Grade Power Adaptor
