Name: Mean Well LRS-150-36 36V 4.3A 154.8W Single Output Switching Power Supply (SMPS)
Brand: Mean Well
SKU: 07902
Price: 1799.00 INR
Availability: OutOfStock

Mean Well LRS-150-36 36V 4.3A 154.8W Single Output Switching Power Supply (SMPS)

Mean Well

Mean Well LRS-150-36 36V 4.3A 154.8W Single Output Switching Power Supply (SMPS)

Based on 0 reviews. - Write a review

₹1,799.00

₹1,524.58 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 15
B2B GST Credit Available

Price in reward points: 1524

Stock: 0 in Stock
SKU: 07902
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

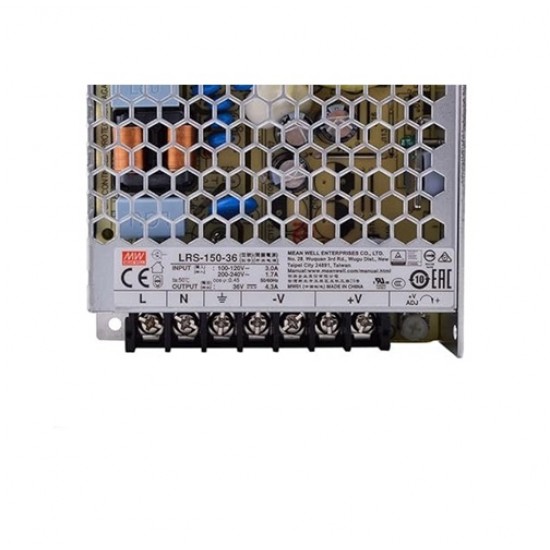

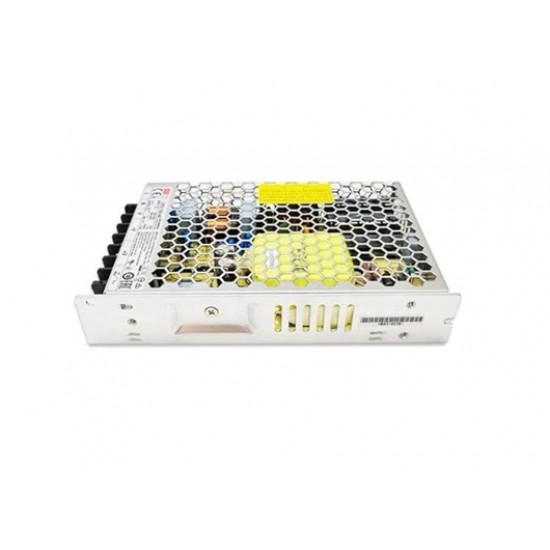

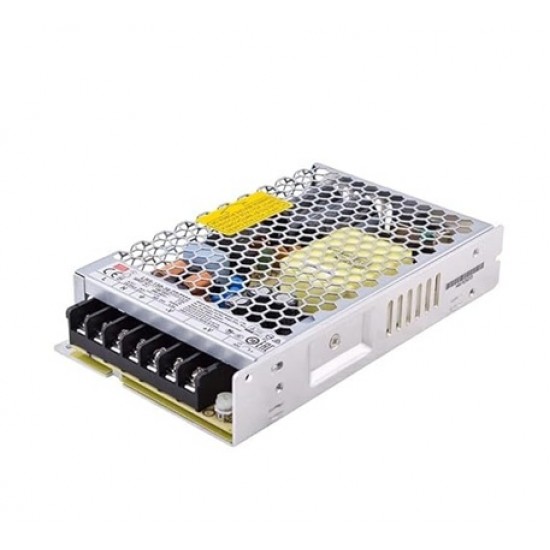

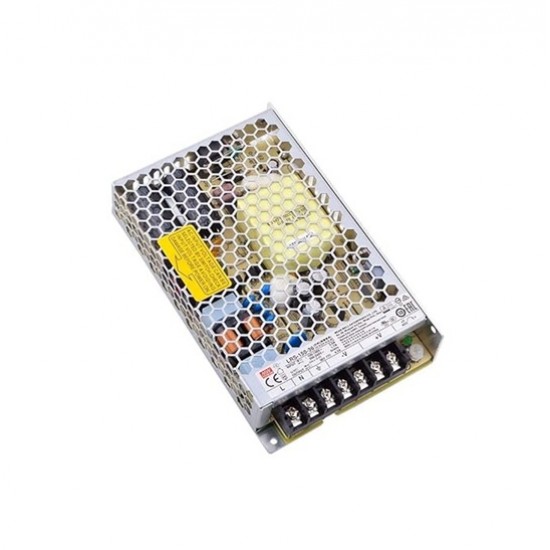

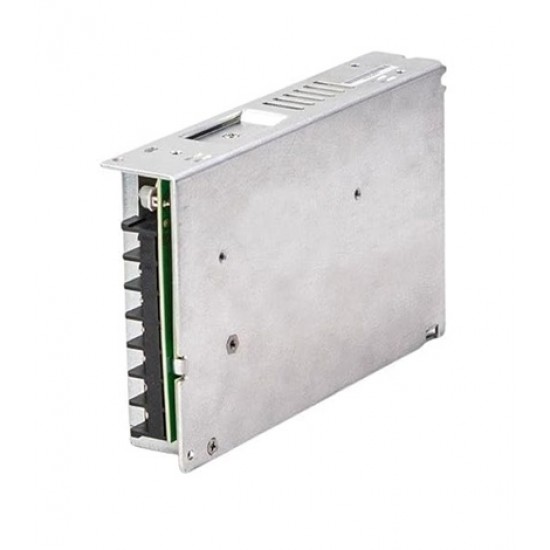

Mean Well LRS-150-36 36V 4.3A 154.8W Single Output Switching Power Supply (SMPS)

The Mean Well LRS-150-36 is a compact and reliable 154.8W enclosed switching power supply designed for industrial automation, LED systems, CNC machines, communication equipment, and various electronic applications. Delivering a stable 36V DC output at up to 4.3A, this SMPS features a low-profile 1U design with efficient heat dissipation through natural air convection, eliminating the need for a cooling fan. Its rugged metal mesh enclosure improves thermal performance while ensuring long operational life and dependable performance in demanding environments.

Built with comprehensive protection features including short circuit, overload, overvoltage, and overtemperature protection, the LRS-150-36 ensures safe and stable operation. It supports universal AC input and offers high efficiency up to 89%, reducing power consumption and heat generation. The unit is widely trusted for industrial control systems, DIY electronics projects, LED lighting installations, and embedded power applications due to its compact size, reliability, and cost-effective performance.

Datasheet

Features

Compact low-profile 1U design (30mm height)
Stable 36V DC single output
Output current up to 4.3A
154.8W maximum output power
Universal AC input with selectable voltage range
High efficiency up to 89%
Metal mesh enclosure for improved heat dissipation
Fanless cooling by natural air convection
Built-in LED power indicator
Low no-load power consumption
Withstands 300VAC surge input for 5 seconds
Protections against short circuit, overload, overvoltage, and overtemperature
100% full-load burn-in tested
Supports operation up to 5000m altitude
5G vibration resistance
Long operational life and high reliability
Suitable for industrial and household applications

Specifications

Model: MEAN WELL LRS-150-36
Output Voltage: 36V DC
Output Current: 4.3A
Output Power: 154.8W
Output Type: Single Output
Input Voltage: 85~132VAC / 170~264VAC Selectable
DC Input Range: 240~370VDC
Efficiency: Up to 89%
Voltage Adjustment Range: 32.4V ~ 39.6V
Ripple & Noise: 200mVp-p
Operating Temperature: -30°C to +70°C

Applications

Industrial automation systems
CNC machines and motor drivers
LED lighting and signage systems
3D printers and robotics projects
Communication and networking equipment
Security and surveillance systems
Embedded electronics projects
Test and measurement equipment
Home automation systems
Battery charging and DC-powered devices

Package Includes

1x LRS-150-36 36V 4.3A 154.8W Single Output Switching Power Supply (SMPS)
