Mean Well LRS-200-12 12V 17A 204W Single Output Switching Power Supply (SMPS)

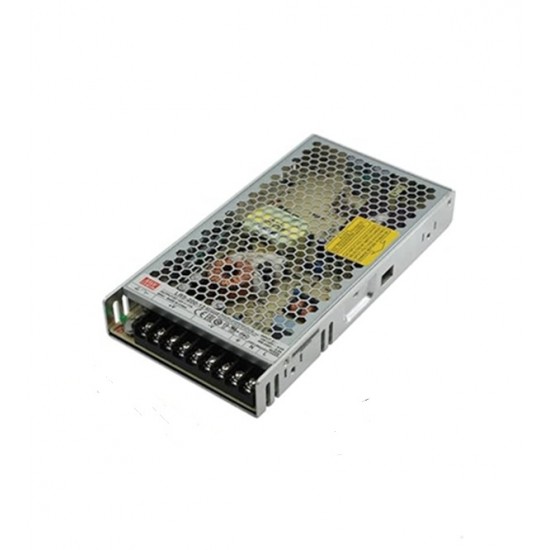

The MEAN WELL LRS-200-12 is a high-performance enclosed AC-DC switching power supply designed for industrial automation, LED lighting, CCTV systems, 3D printers, communication equipment, and various electronic applications requiring a stable 12V DC output. Delivering up to 17A current and 204W power, this compact SMPS offers reliable operation, high efficiency, and excellent thermal performance in a slim 1U low-profile metal enclosure. It features built-in protections against short circuit, overload, over-voltage, and over-temperature, ensuring safe and long-lasting operation even in demanding environments.

The LRS-200-12 supports selectable 115V/230V AC input and operates efficiently with free air convection cooling, eliminating the need for an internal fan. Its durable perforated metal casing improves heat dissipation while maintaining compact dimensions ideal for space-constrained installations. The output voltage can also be fine-tuned using the onboard adjustment potentiometer, making it suitable for sensitive electronics and custom power applications.

Datasheet

Features

204W single output switching power supply
Stable 12V DC output with 17A current capacity
Universal AC input with 115V/230V selection switch
Slim 30mm low-profile metal enclosure
High efficiency up to 87.5%
Built-in protections: short circuit, overload, over-voltage, over-temperature
Free air convection cooling for silent operation
Adjustable output voltage range: 10.2V – 13.8V
LED indicator for power ON status
Withstands 300VAC surge input for 5 seconds
Reliable operation up to 70°C ambient temperature
Long lifespan with industrial-grade reliability

Specifications

Model: LRS-200-12
Brand: MEAN WELL
Output Voltage: 12V DC
Output Current: 17A
Rated Power: 204W
Input Voltage: 90~132VAC / 180~264VAC
Efficiency: 87.5%
Cooling Method: Free air convection
Voltage Adjustment Range: 10.2V ~ 13.8V
Operating Temperature: -25°C to +70°C
Dimensions: 215 × 115 × 30 mm
Protection Features: SCP / OLP / OVP / OTP
Mounting Type: Chassis mount enclosed type

Applications

Industrial automation systems
LED strips and signage
CCTV and surveillance systems
3D printers and CNC machines
Communication equipment
DIY electronics projects
Battery charging systems
Robotics and embedded systems

Package Includes

1x LRS-200-12 12V 17A 204W Single Output Switching Power Supply (SMPS)
