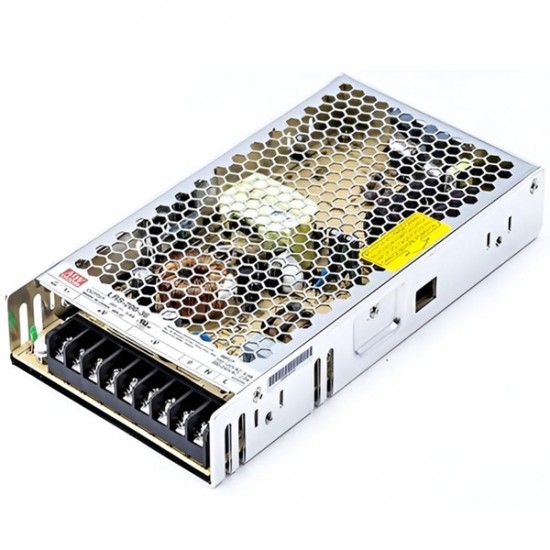

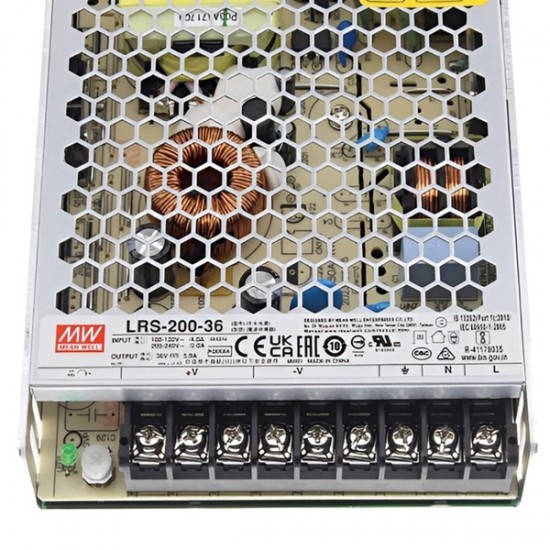

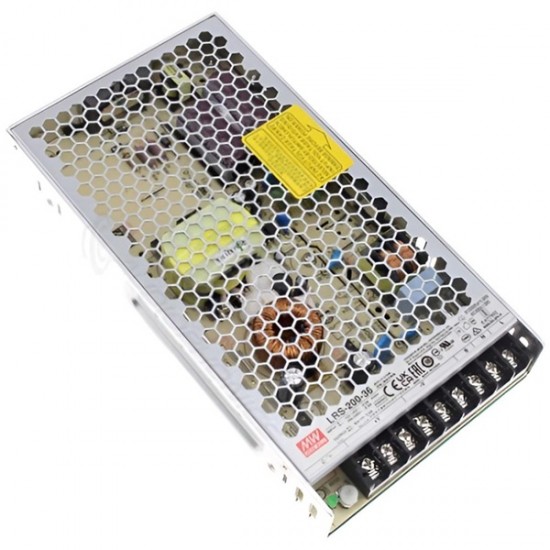

Name: Mean Well LRS-200-36 36V 5.9A 212.4W Single Output Switching Power Supply (SMPS)
Brand: Mean Well
SKU: 07905
Price: 2399.00 INR
Availability: InStock

Mean Well LRS-200-36 36V 5.9A 212.4W Single Output Switching Power Supply (SMPS)

Mean Well

Mean Well LRS-200-36 36V 5.9A 212.4W Single Output Switching Power Supply (SMPS)

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹2,399.00

₹2,033.05 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 20
B2B GST Credit Available

Price in reward points: 2033

Stock: 2 in Stock
SKU: 07905
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

Mean Well LRS-200-36 36V 5.9A 212.4W Single Output Switching Power Supply (SMPS)

The MEAN WELL LRS-200-36 is a high-efficiency 36V single output switching power supply designed for industrial automation, LED systems, CNC machines, communication equipment, and electronic projects requiring stable DC power. Delivering up to 5.9A current with a total output power of 212.4W, this compact enclosed SMPS features a low-profile 1U design, high reliability, and built-in protections against short circuit, overload, overvoltage, and overheating. Its fanless cooling design ensures silent operation while maintaining excellent thermal performance. The LRS-200-36 supports universal AC input selection and offers high efficiency up to 89.5%, making it ideal for long-term continuous operation in demanding industrial environments.

Datasheet

Features

36V DC regulated single output
5.9A output current with 212.4W power rating
Slim 30mm low-profile metal enclosure
High efficiency up to 89.5%
Built-in protections: short circuit, overload, overvoltage, over temperature
Fanless cooling by free air convection
Universal AC input with switch selection
LED power-on indicator
Low no-load power consumption (<0.75W)
Withstands 300VAC surge input for 5 seconds
5G vibration tested for industrial reliability
Operating temperature range: -25°C to +70°C

Specifications

Input Voltage: 90~132VAC / 180~264VAC selectable
DC Input Range: 240~370VDC
Output Voltage: 36V DC
Output Current: 5.9A
Rated Power: 212.4W
Efficiency: 89.5% typical
Ripple & Noise: 200mVp-p
Dimensions: 215 × 115 × 30 mm
Cooling Method: Free air convection
Safety Standards: UL62368-1, EN62368-1 compliant
Mounting Type: Chassis / enclosed type

Applications

Industrial automation systems
CNC machines and motor drivers
LED lighting installations
Robotics and embedded systems
Telecommunications equipment
Security and surveillance systems
Test and measurement devices

Package Includes

1x LRS-200-36 36V 5.9A 212.4W Single Output Switching Power Supply (SMPS)
