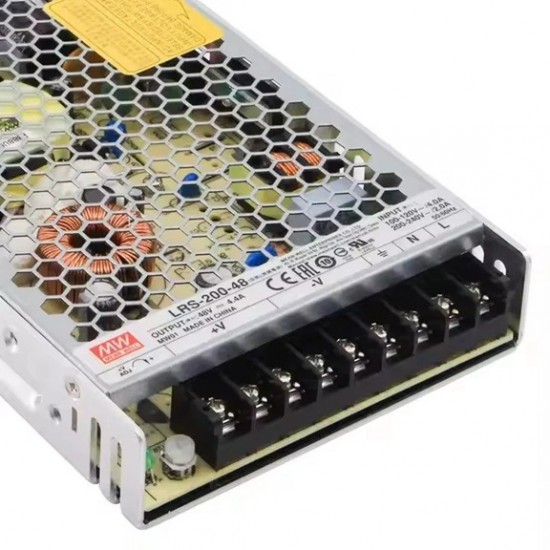

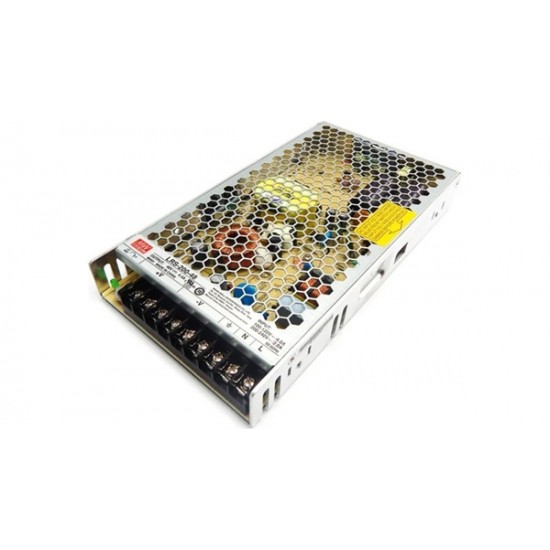

Name: Mean Well LRS-200-48 48V 4.4A 211.2W Single Output Switching Power Supply (SMPS)
Brand: Mean Well
SKU: 07906
Price: 2399.00 INR
Availability: InStock

Mean Well LRS-200-48 48V 4.4A 211.2W Single Output Switching Power Supply (SMPS)

Mean Well

Mean Well LRS-200-48 48V 4.4A 211.2W Single Output Switching Power Supply (SMPS)

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹2,399.00

₹2,033.05 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 20
B2B GST Credit Available

Price in reward points: 2033

Stock: 2 in Stock
SKU: 07906
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

Mean Well LRS-200-48 48V 4.4A 211.2W Single Output Switching Power Supply (SMPS)

The MEAN WELL LRS-200-48 is a high-performance 48V single output switching power supply designed for industrial automation, LED systems, telecom equipment, CNC machines, and various electronic applications requiring stable DC power. Delivering up to 48V DC at 4.4A with a total output power of 211.2W, this compact SMPS features a slim 30mm low-profile metal enclosure ideal for space-constrained installations.

Built with high efficiency up to 90%, the LRS-200-48 supports universal AC input selection (115V/230V AC via switch) and includes comprehensive protection features such as short circuit, overload, over-voltage, and over-temperature protection. The unit utilizes natural air convection cooling for silent and reliable operation, while its rugged industrial-grade design ensures long operational life and dependable performance in demanding environments.

Datasheet

Features

48V DC single output power supply
Maximum output current: 4.4A
Total output power: 211.2W
Slim 30mm low-profile design
Universal AC input selectable by switch
High efficiency up to 90%
Built-in protections: short circuit, overload, over-voltage, over-temperature
Cooling by free air convection
5G vibration resistance
LED power indicator
Low no-load power consumption
Industrial-grade metal enclosure

Specifications

Input Voltage: 90 ~ 132VAC / 180 ~ 264VAC (switch selectable)
DC Input Range: 240 ~ 370VDC
Output Voltage: 48V DC
Output Current: 0 ~ 4.4A
Rated Power: 211.2W
Efficiency: Up to 90%
Output Voltage Adjustment: 43.2V ~ 52.8V
Operating Temperature: -25°C to +70°C
Dimensions: 215 × 115 × 30 mm
Cooling Method: Natural air convection
Protection: Overload / Over Voltage / Short Circuit / Over Temperature

Applications

Industrial automation systems
LED lighting and signage
Telecom equipment
CNC machines and robotics
Security and surveillance systems
Battery charging systems
Embedded electronic projects
48V DC industrial devices

Package Includes

1x LRS-200-48 48V 4.4A 211.2W Single Output Switching Power Supply (SMPS)
