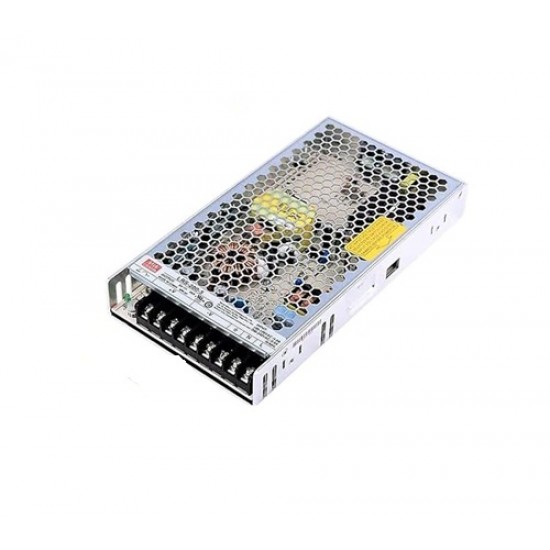

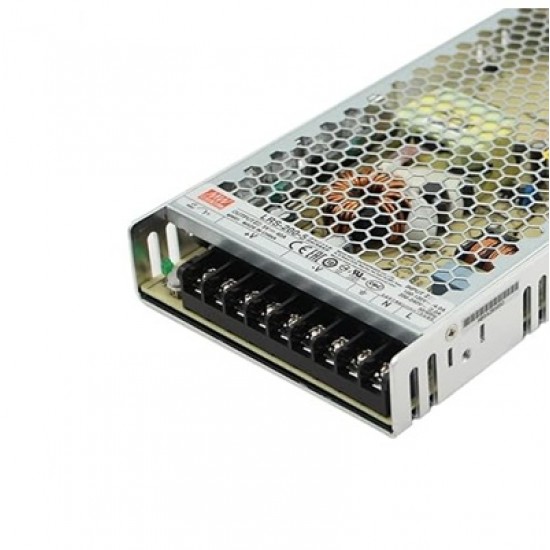

Name: Mean Well LRS-200-5 5V 40A 200W Single Output Switching Power Supply (SMPS)
Brand: Mean Well
SKU: 07909
Price: 2399.00 INR
Availability: InStock

Mean Well LRS-200-5 5V 40A 200W Single Output Switching Power Supply (SMPS)

Mean Well

Mean Well LRS-200-5 5V 40A 200W Single Output Switching Power Supply (SMPS)

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹2,399.00

₹2,033.05 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 20
B2B GST Credit Available

Price in reward points: 2033

Stock: 2 in Stock
SKU: 07909
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

Mean Well LRS-200-5 5V 40A 200W Single Output Switching Power Supply (SMPS)

The MEAN WELL LRS-200-5 Power Supplies is a high-performance 200W enclosed switching power supply designed for industrial automation, LED lighting, CNC machines, 3D printers, communication equipment, and various electronic applications requiring a stable 5V DC output. Delivering up to 40A output current, this compact and reliable SMPS offers excellent efficiency, low no-load power consumption, and robust protection features for long-term operation.

Built with a slim 30mm low-profile metal enclosure, the Mean Well LRS-200-5 supports universal AC input selection (115V/230V AC) and includes protections against short circuit, overload, over-voltage, and over-temperature conditions. Its fanless cooling design using free air convection ensures silent operation while maintaining high reliability in demanding industrial environments.

Datasheet

Features

Stable 5V DC single output
High output current up to 40A
200W maximum power output
Slim low-profile 30mm metal casing
Universal AC input with switch selection
Built-in protections: short circuit, overload, over-voltage, over-temperature
Cooling by free air convection for silent operation
High efficiency up to 87%
Low no-load power consumption (<0.75W)
LED power indicator
Withstands 300VAC surge input for 5 seconds
100% full load burn-in tested
Supports operating temperatures up to 70°C

Specifications

Model: LRS-200-5
Brand: Mean Well
Output Voltage: 5V DC
Output Current: 40A
Rated Power: 200W
Input Voltage: 115V/230V AC selectable
Efficiency: Up to 87%
Cooling Method: Free air convection

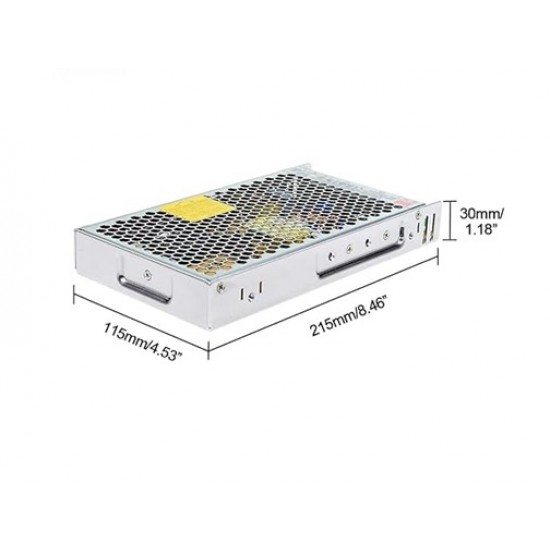

Dimensions: 215 × 115 × 30 mm
Operating Temperature: -25°C to +70°C
Protection Features: Short circuit / Overload / Over-voltage / Over-temperature
Safety Standards: UL60950-1 compliant
Enclosure Type: Metal enclosed SMPS

Applications

LED strips and LED display boards
Industrial automation systems
CNC machines
3D printers
Communication devices
Embedded electronics projects
Robotics and DIY applications
Security and surveillance systems

Package Includes

1x LRS-200-5 5V 40A 200W Single Output Switching Power Supply (SMPS)
