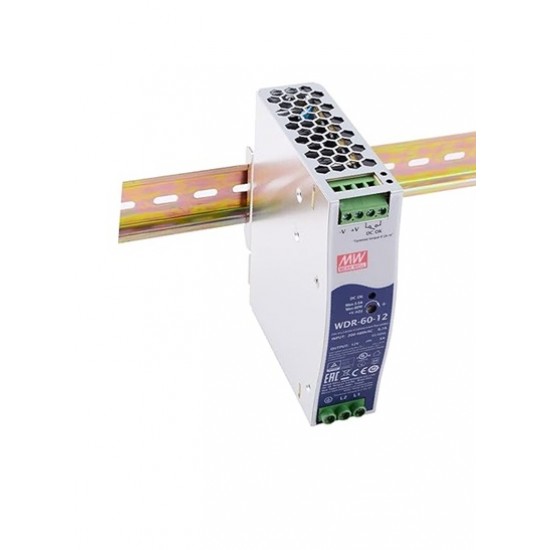

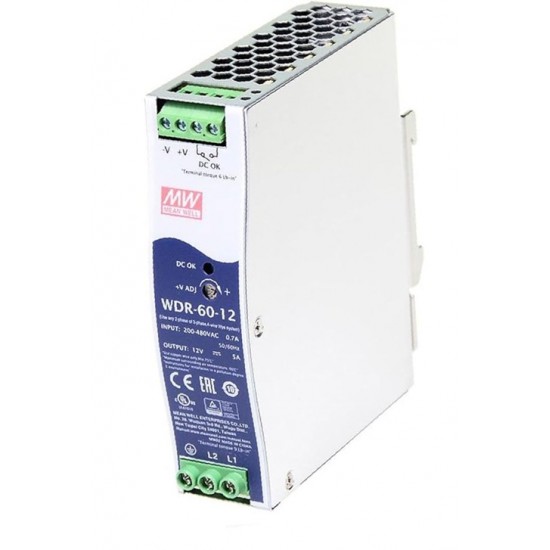

Mean Well WDR-60-12 12V 5A 60W DIN Rail Switching Power Supply (SMPS)
The MEAN WELL WDR-60-12 is a compact and reliable 12V DIN rail switching power supply designed for industrial automation, control panels, security systems, and telecommunications applications. Delivering a stable 12V DC output at up to 5A with 60W power capacity, this slim DIN rail SMPS supports ultra-wide 180~550VAC input, making it suitable for both single-phase and two-phase industrial power systems. Its narrow 32mm width allows efficient space-saving installation inside electrical cabinets and distribution panels.
Built with high isolation protection and industrial-grade safety features, the WDR-60-12 includes protections against short circuit, overload, overvoltage, and overheating for safe and continuous operation. The fanless free-air convection cooling design ensures silent performance and long operational life. With DIN rail TS-35 mounting compatibility and a wide operating temperature range of -30°C to +85°C, this power supply is ideal for harsh industrial environments and factory automation systems.
Features
- Ultra-wide 180~550VAC input range
- 12V DC single output
- 5A output current with 60W power
- Slim 32mm DIN rail design
- High 4.7KVAC isolation protection
- Built-in overload, short circuit, overvoltage, and thermal protection
- Free-air convection cooling (fanless operation)
- DC OK relay contact output
- Wide operating temperature range: -30°C to +85°C

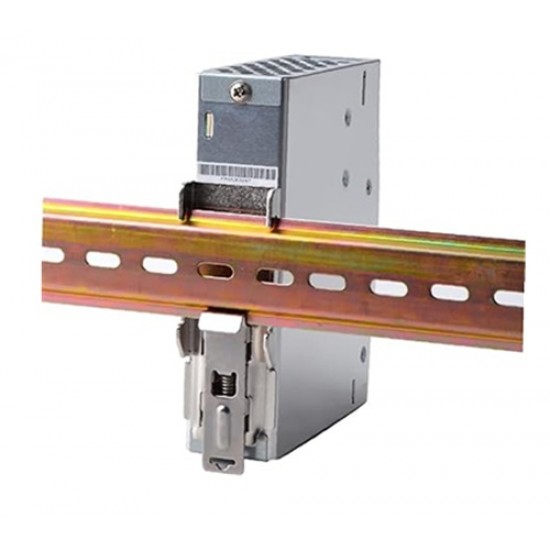

- Suitable for TS-35/7.5 and TS-35/15 DIN rail mounting
Specifications
- Model: WDR-60-12
- Input Voltage: 180~550VAC / 254~780VDC
- Output Voltage: 12V DC
- Output Current: 5A
- Rated Power: 60W
- Efficiency: Up to 86.5%
- Output Voltage Adjustment: 12~15V
- Ripple & Noise: 120mVp-p
- Dimensions: 32 × 125.5 × 102 mm
- Cooling Method: Free air convection
- Mounting Type: DIN Rail
- Operating Temperature: -30°C to +85°C
- Protection Features: SCP / OLP / OVP / OTP
- Safety Standards: UL61010, EN61558-2-16
Applications
- Industrial automation systems
- PLC and control panels
- CCTV and security systems
- Factory automation equipment
- Telecommunication systems
- Process control systems
- Electromechanical equipment
- Industrial monitoring devices
Package Includes
- 1x WDR-60-12 12V 5A 60W DIN Rail Switching Power Supply (SMPS)
